Rocker Potentiometer
  • Rocker Potentiometer

Rocker Potentiometer

Are you a factory or a trading company?

Answer: We are a factory, we can guarantee our price is first hand, very cheap and competitive.


How is the quality control in your factory?

Answer: All products will be 100% checked before shipment.


How to contact us?

Tel: 86-13377785035

Wechat: kkg-vivian

Email: xyy@kkg.tw

WhatsApp: +8613377785035


  • Product Details
  • More Products
Product Details
Highlight:

5K Ohm Rocker Potentiometer

MINI Rocker Potentiometer

3D Joystick Potentiometer

Place Of Origin:
Fujian, China
Technology:
Carbon Film
Resistance Tolerance:
±20%
Operating Temperature:
-20~+70
Tolerance:
±5%
Diameter:
16MM
Insert Termination:
None Insert
Package / Case:
Plastic
Temperature Coefficient:
0.05
Termination Style:
Not Applicable
Product Name:
Rocker Potentiometer
Service:
OEM ODM
Type:
Resistance:
10KΩ ~100KΩ
Rated Power:
0.05W
Max. Operating Voltage:
50V AC
Packaging:
STANDARD
Power (Watts):
0.0125W
Adjustment Type:
Top Adjustment; Top Finger Adjustment
Length:
Standard
Termination:
None
Built In Switch:
Rotary, SPST, Push-Pull, DPDT, With Detent
Rotation:
55°±6°
Resistive Material:
Carbon
Actuator Type:
Slotted
Certification:
TUV RoHs ISO
Operating Life:
100000 Cycles


Product Description

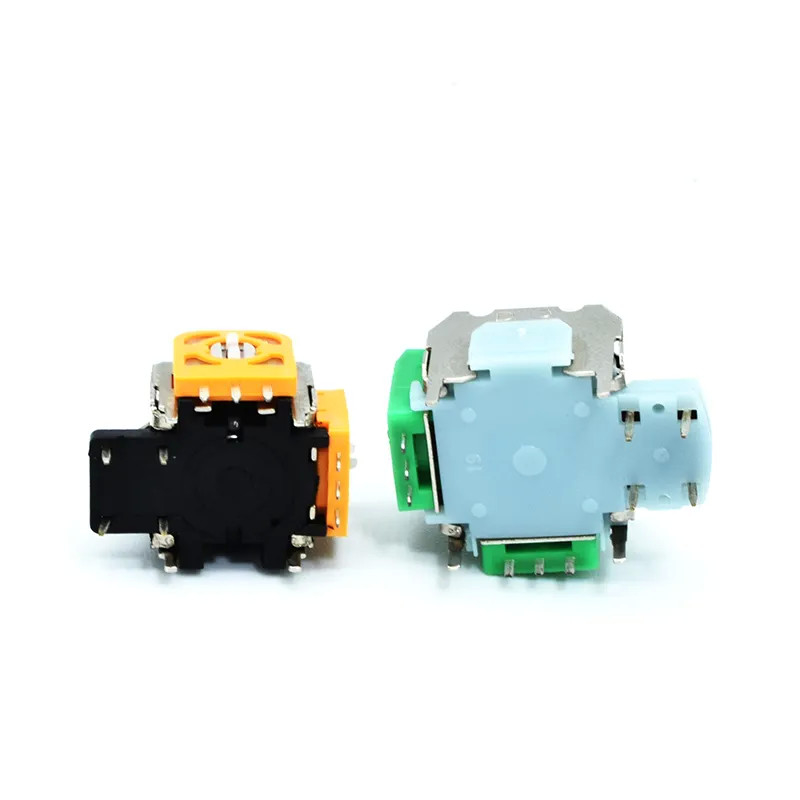

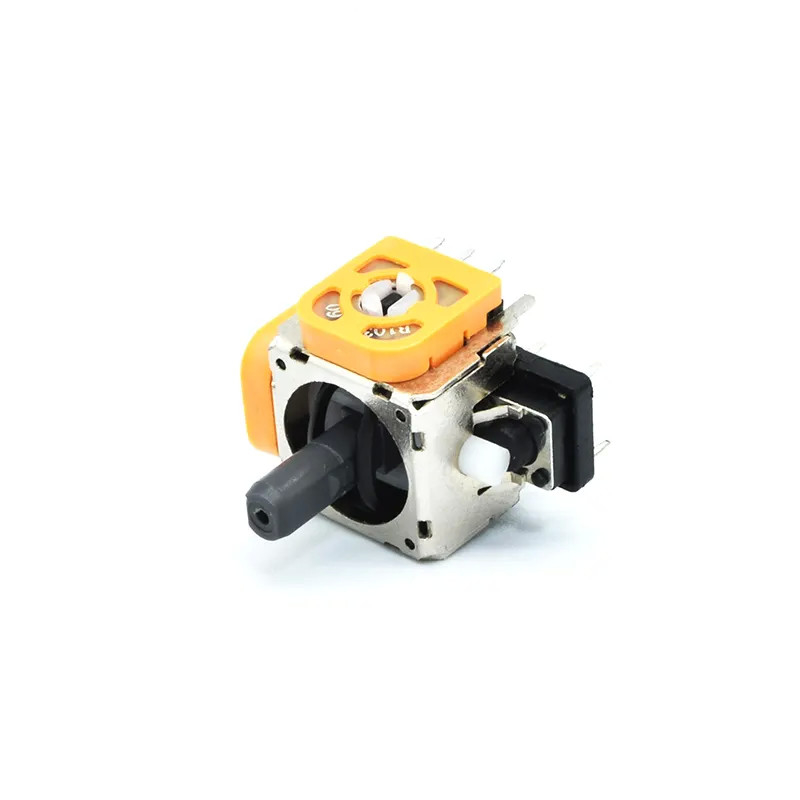

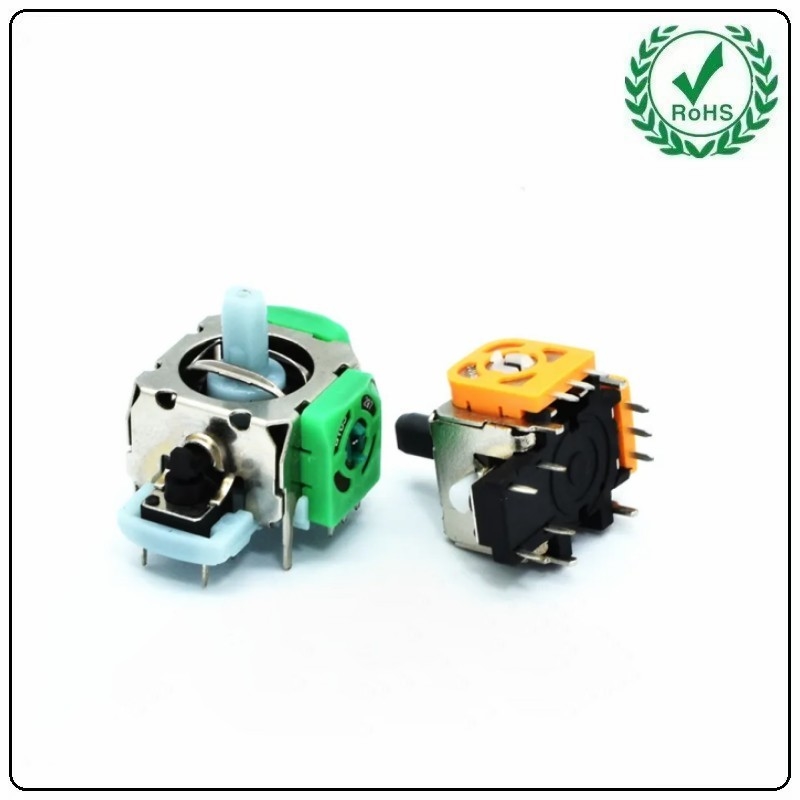

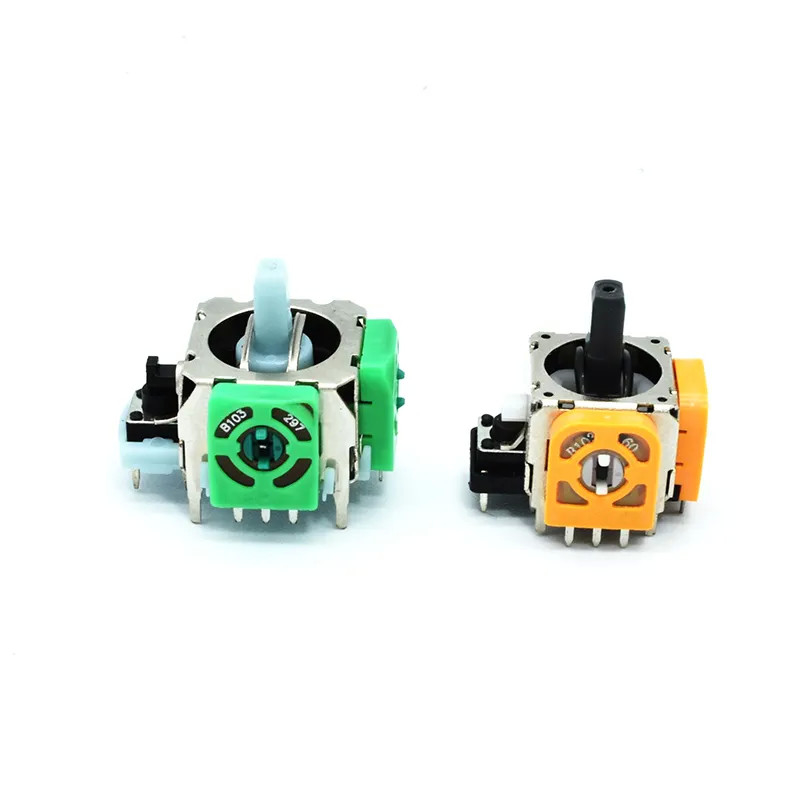

Rocker Potentiometer Game Controller Remote Universal Joint 3D Joystick Potentiometer With

Tact Switch


Many industries purchase products require a relatively long life, there is no doubt about it. But also need

to pay attention to the point is that the service life of the product and many factors are related, especially

the process and the materials used, is the main factor. Only which uses high quality materials made of

rocker potentiometer, in order to effectively improve the service life, to achieve stable quality, durable.


1,Solid potentiometer

Joystick Potentiometers' Features:
1, strong maneuverability
Since the rocker potentiometer is used as a control device, the basic characteristics needed is to have a
strong operability, to meet the user's accurate control, while in the process of manipulation, smooth enough
to quickly reset, a good experience, to enhance the user's operating effect.
2, the quality of stable and durable
The use of high quality materials and strict control of each process produced by the rocker potentiometer,
in order to effectively improve the service life, to achieve stable quality and durability.
3, adapt to a variety of different areas of products
Although the potentiometer is mainly used in some electronic toys and handles, but different industries will
produce a variety of different products, need to meet the adaptability, in order to facilitate the purchase and
use of such products are more practical, strong utilization rate, can be the subsequent production use.



Joystick Potentiometers's Specification:

Electrical Specification
Total Resistane
10KΩ~ 100kΩ
Total Resistance Tolerance
±20%
Resistance Taper
B, See P128
Max. Operation Voltage
Liner Taper B:AC50V or DC5.0V
Rated Power
liner taper B:0.0125W
Sliding Noise
Less than 300mV (by JIS method)
Insulation resistance
more than 100MΩ at DC250V 1Minute
Withstand Voltage
1 minute at AC 250V/2mV/50Hz
Operating Life
100,000 cycles min
Mechanical specification
Figure of lever operation
Circular Operating
Stopper strength
3.1 kgf.cm Min 3 sec
Push-Pull strength
Push/Pull 5.0 kgf Min 3 sec
Operation force
300 gf.cm Max.
Accuracy of rest position
±5°
Operating angle of lever
55 ±6°
Tact Switch specification
Maximum Ratings
12V DC 50mA
Operating Force
820±260gf
Travel
0.5+0.5 -0.4mm
