4-Channel Audio Video Interface Socket

Pioneer DMH-1500NEX RCA Audio Socket's Product Introduction

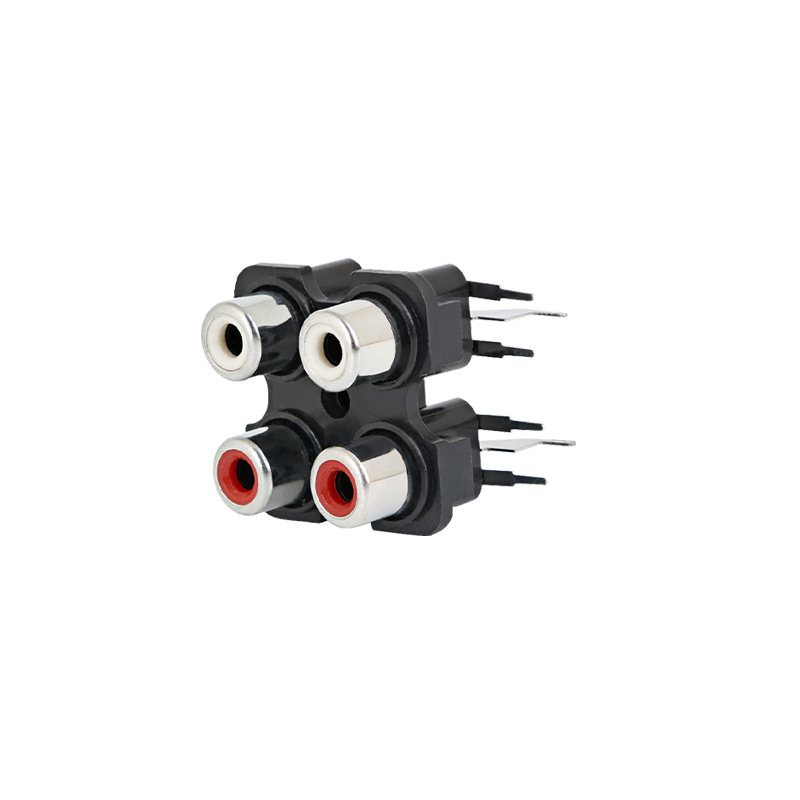

KKG Electronics presents the RCA-401, a versatile rca jack female module engineered to maximize connectivity in limited spaces. This 4-port unit consolidates four individual connection points into a single robust housing, offering a significant space-saving advantage over single jacks. It is designed to facilitate a secure rca plug and socket interface for high-density applications, such as AV receivers and matrix switchers. The connector acts as a reliable rca socket panel mount solution when installed behind a device chassis, providing the mechanical strength needed to withstand frequent cabling changes. Inside, high-grade spring contacts ensure a stable rca socket connection, minimizing signal loss and crosstalk between the four channels. With its standardized footprint and color-coding options, the RCA-401 is an essential component for manufacturers of home theater systems and professional audio equipment requiring reliable multi-channel I/O.

Swann Enforcer RCA Audio Socket's Product Operating Principle

Multi-Port Integration: The housing integrates four coaxial connectors into a unified block allowing for simultaneous transmission of multiple signal streams like dual stereo audio or video plus audio.
Signal Isolation: Each of the four ports maintains a dedicated signal pin and isolated ground path to prevent interference and crosstalk between adjacent channels.
Mechanical Retention: Internal leaf springs within each cylinder apply radial pressure to the inserted plug ensuring a consistent electrical contact and physical grip.

Numark Mixtrack Platinum FX RCA Audio Socket's Product Functions

Input/Output Consolidation: Merges four distinct connection points into one component reducing the PCB footprint and simplifying the assembly process for multi-input devices.
Versatile Configuration: Supports various signal combinations such as two independent Stereo pairs (Input A / Input B) or Component Video (YPbPr) with a Digital Coaxial Audio port.
Ground Management: Often features a unified shield or grounding strap that connects to the PCB ground plane to protect all four signals from external electromagnetic noise.
Visual Guidance: Utilizes standard colored inserts to guide the user in making the correct cable connections reducing the likelihood of setup errors.

DJ Controllers: Used on the input section of the Numark Mixtrack Platinum FX to handle main outputs and microphone inputs.

Surveillance DVRs: Located on the rear I/O board of the Swann Enforcer Security System to output quad-split video signals to external monitors.

Car Audio Systems: Integrated into the chassis of the Pioneer DMH-1500NEX Head Unit to provide pre-amp outputs for Front and Rear speakers.

We ensure high production efficiency and ship your order within 7 days after payment.
