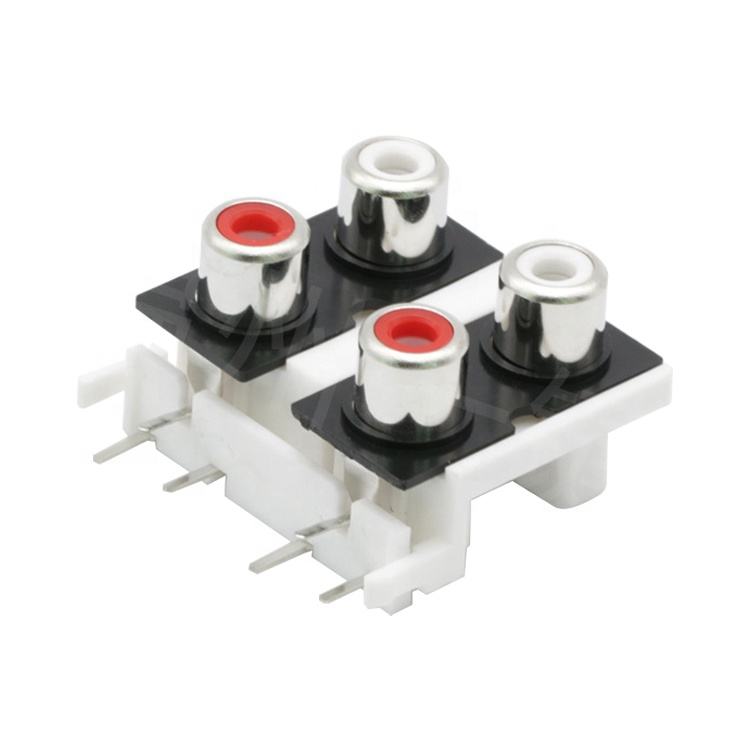

KKG RCA-K2761: Through-Hole RCA Phono Socket

Roku Express+ RCA Audio Socket's Product Introduction

The KKG RCA-K2761 is a high-quality connector engineered for superior signal integrity in audio and video equipment. As a leading product from a trusted rca socket factory, this component is built to last, with a tested working life of 10,000 insertion and removal cycles. Its robust right-angle, through-hole design ensures a secure and stable connection to the printed circuit board, making it an ideal choice for manufacturers of consumer and professional electronics. This female rca jack is designed to perform flawlessly across a wide range of environmental conditions, with an operating temperature from -25℃ to +80℃.

With a high dielectric strength capable of withstanding 500VAC, the RCA-K2761 offers excellent protection and signal isolation. The connector provides a choice of operating forces (160gf or 250gf), allowing designers to select the perfect tactile feedback for their application. This versatile rca socket is perfect for carrying mono audio or composite video signals with exceptional clarity. For any application demanding a reliable, long-lasting, and high-performance AV connection, the KKG RCA-K2761 is the definitive engineering choice.

Denon and Marantz RCA Audio Socket's Product Operating Principle

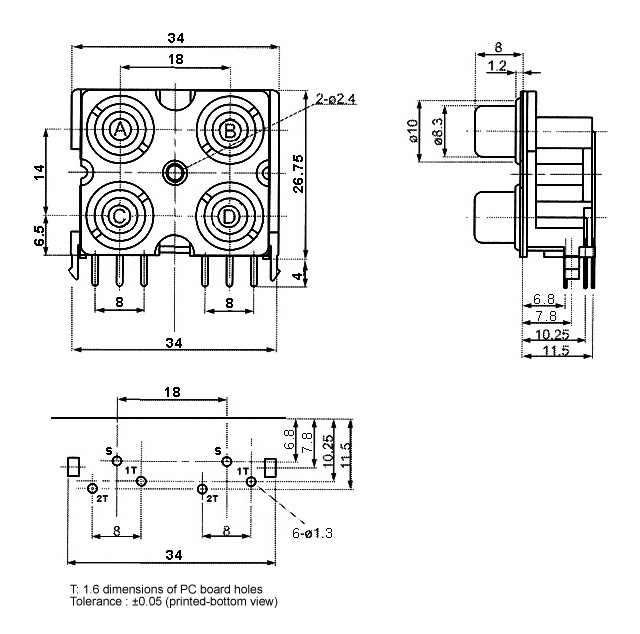

Secure Mounting: The through-hole pins are designed to pass through the PCB and be soldered on the opposite side, creating a strong mechanical and electrical bond.

Signal Transmission: When a male RCA plug is inserted, the internal spring contacts grip the plug's center pin and outer shield, creating a continuous path for the mono signal.

Right-Angle Design: The 90-degree orientation allows for space-saving designs, enabling connections to be made parallel to the PCB surface, ideal for compact enclosures.

Sony Speaker RCA Audio Socket's Product Functions

AV Signal Interface: Provides a standard connection point for transmitting composite video or mono audio signals between devices.

Durable Connectivity: Engineered for a high lifecycle of 10,000 cycles, ensuring a reliable connection even with frequent use.

PCB Integration: The through-hole, right-angle design allows for easy and secure integration into electronic circuit boards.

Stable Performance: A wide operating temperature range and high voltage tolerance ensure consistent performance in various conditions.

Home Theater Systems: Used as the primary audio and video connection ports on AV receivers and amplifiers from brands like Denon and Marantz.

Televisions and Displays: Serves as the composite video and audio input jacks on televisions and commercial displays from manufacturers like LG and Sony.

Set-Top Boxes: Integrated into cable, satellite, and streaming boxes, such as the Roku Express+, to provide legacy AV output for older televisions.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

Q1: How do you manage production delays caused by unforeseen supply chain disruptions?

A: Our risk-mitigation plan includes buffer stock for critical components and real-time supplier escalation. Clients receive weekly updates and adjusted timelines within 24 hours of disruption identification.

Q2: Are raw materials sourced from conflict-free or ethically certified suppliers?

A: Yes, we adhere to the Responsible Minerals Initiative (RMI) and provide SMETA-audited supply chain reports. All tantalum/tin suppliers are certified conflict-free via OECD Due Diligence.

Q3: How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.

Q4: Can you modify existing designs to reduce electromagnetic susceptibility (EMS) in high-noise environments?

A: Design revisions like shielded ferrite bead integration or ground plane optimization are available. Our engineers provide EMS simulation reports pre-production.

Q5: What logistics partners do you work with for global distribution?

A: We partner with DHL, FedEx, and regional specialists like SF Logistics (Asia). Customs clearance, HS code labeling, and door-to-door tracking are included.
