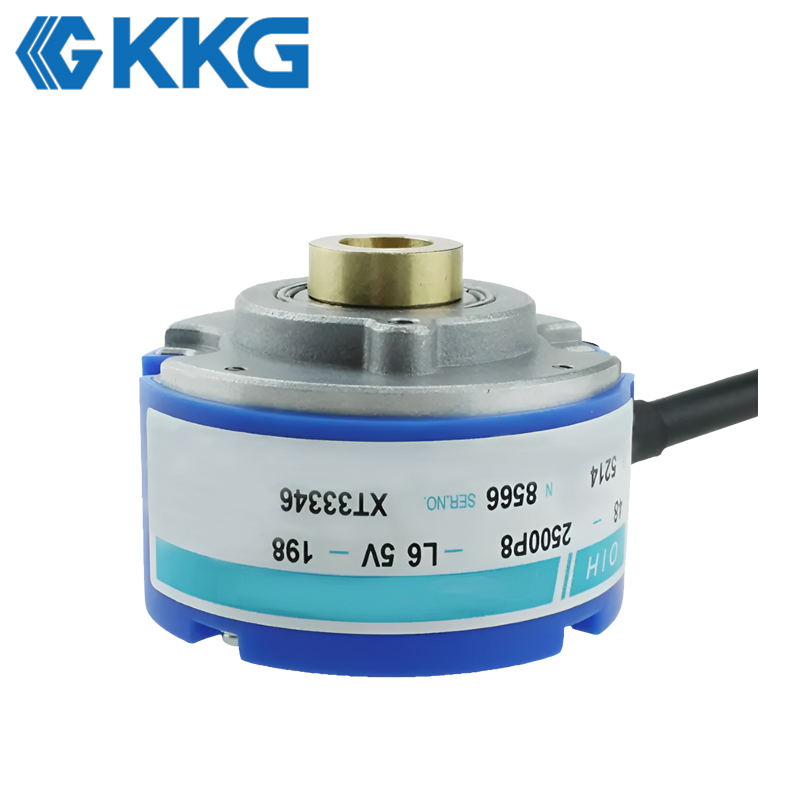

The 48mm Servo Incremental Encoder: Precision And Reliability for Modern Industrial Applications

In the realm of industrial automation and precision control, the ability to accurately monitor and control motion is essential. One critical component that enables this functionality is the Incremental Encoder. The 48mm Servo Incremental Encoder offered by Illuminated Tact Switch is a prime example of how advanced encoder technology can enhance the performance and reliability of modern control systems.

Key Features of the 48mm Servo Incremental Encoder

The 48mm Servo Incremental Encoder is designed to meet the stringent demands of industrial applications. With an outer diameter of 48mm, it is compact yet robust, making it suitable for integration into various systems. This encoder operates on a working voltage of DC 5V and offers a high pulse resolution of 2400 pulses per revolution (PPR), ensuring precise motion detection and control.

One of its standout features is the high response frequency of 200 kHz, which allows for real-time speed monitoring and feedback. This is particularly important in applications where rapid and precise control is required, such as in robotic joints or CNC machining systems. The encoder also operates within a wide temperature range of -20°C to 85°C, making it suitable for both indoor and outdoor environments.

The encoder is designed with an IP40 protection class, which prevents the ingress of solid objects larger than 1mm. This ensures that the encoder remains protected from dust and other contaminants, thereby enhancing its durability and reliability in harsh industrial settings.

Operating Principle and Technology

The 48mm Servo Incremental Encoder utilizes a photoelectric sensing mechanism to detect motion. The code disk features equidistant light-transmitting and opaque slits at its edge. A light source and photoelectric sensor are positioned on opposite sides of the disk. As the disk rotates, it generates quadrature sine wave signals with a 90° phase shift. These signals enable precise tracking of motion direction and position.

The encoder also includes a Z-phase output that provides one index pulse per revolution. This feature is crucial for system homing and zero reference, ensuring that the system can accurately determine its starting position. Additionally, the encoder employs interpolation technology to digitize analog sine waves, boosting resolution. For example, a 2048-line code disk can achieve up to 32,768 PPR through 16x interpolation, providing extremely precise motion detection.

Applications Across Industries

The versatility of the 48mm Servo Incremental Encoder makes it suitable for a wide range of applications. In industrial automation, it is commonly integrated into Siemens PLC control systems for conveyor belt positioning. By using pulse signals, the encoder achieves positioning accuracy of ±0.1mm, enhancing production line efficiency and repeatability.

In robotics, the encoder is embedded in ABB robotic joints for multi-axis motion tracking. It delivers real-time angular feedback via A/B/Z-phase signals, enabling synchronization accuracy of ±0.01°. This precision is crucial for tasks such as precision welding and assembly.

In CNC machining, the encoder is deployed in DMG Mori spindle systems for speed and torque monitoring. With a resolution of up to 10,000 PPR, the encoder tracks spindle RPM, adjusting cutting feed rates to maintain optimal performance.

Quality Assurance and Production Efficiency

At KKG Electronics, quality is a top priority. Each component of the encoder is made from temperature-resistant materials, and high-temperature testing equipment is used to ensure that the product withstands extreme conditions. The company guarantees that all products are rigorously tested at 100% before shipment, ensuring reliability and long-lasting performance.

The production process is highly efficient, with orders shipped within one day of payment. This ensures that customers receive their encoders promptly, minimizing downtime and enhancing productivity.

Conclusion

The 48mm Servo Incremental Encoder is a testament to advanced engineering and precision manufacturing. Its high resolution, robust design, and wide operating range make it an ideal choice for applications requiring precise motion control. Whether used in industrial automation, robotics, or CNC machining, this encoder offers the reliability and performance needed to enhance system efficiency and accuracy. With its focus on quality and customer satisfaction, KKG Electronics ensures that the 48mm Servo Incremental Encoder remains a trusted component in modern industrial systems.
