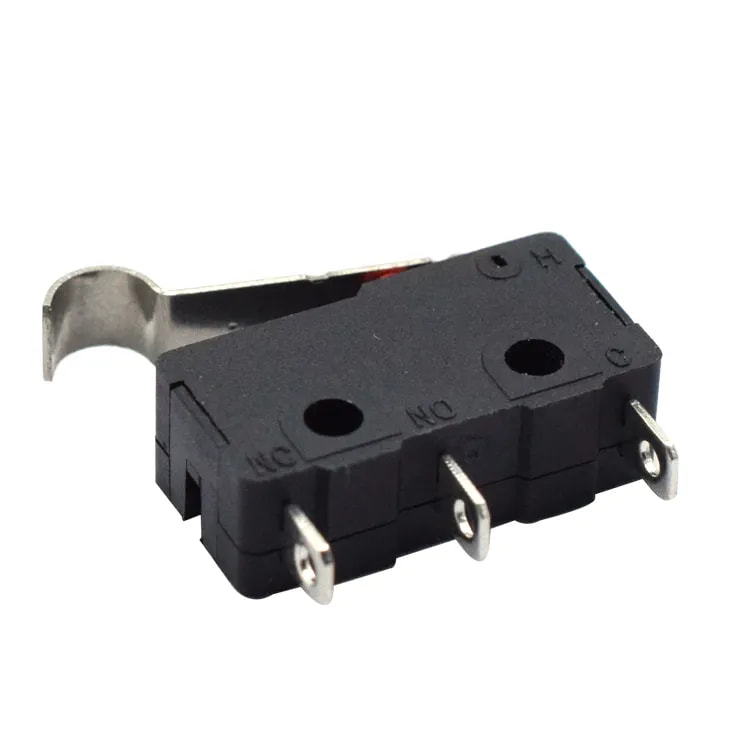

Micro Limit Switch: A Compact yet Powerful Solution for Diverse Applications

In the realm of electrical and electronic systems, the micro limit switch stands out as a crucial component that facilitates precise control and protection mechanisms. This small but mighty device has found its way into a multitude of industries, proving its versatility and reliability.

The micro limit switch is designed to handle frequent circuit SWITCHing operations, making it an ideal choice for equipment that demands reliable and consistent performance. Its compact size belies its robust capabilities, allowing it to fit seamlessly into various devices without compromising on functionality.

One of the key features of the micro limit switch is its precision shrapnel structure, which ensures fast Switching and contributes to its long operational life. This structural advantage makes it suitable for applications where durability and performance are paramount. Additionally, the switch offers a variety of terminal options, including plug-in circuit board terminals, solder terminals, bent foot terminals, and #110 quick connect terminals, providing flexibility for different installation requirements.

The driving handle of the Micro Limit Switch is another notable aspect, offering various operating forces that can be tailored to specific product structures. This adaptability ensures that the switch can be customized to meet the unique needs of different applications, enhancing its overall effectiveness.

In terms of electrical specifications, the micro limit switch is rated for 250V AC and 125V AC, with a rated current capacity of 3A at 250V and 5A at 125V. These ratings indicate its ability to handle different electrical loads, making it suitable for a wide range of devices and systems. The switch operates at a frequency of 50Hz, aligning with standard power supply frequencies in many regions.

The contact resistance of the micro limit switch is kept to a maximum of 30 milliohms, ensuring minimal energy loss and efficient current transmission. Its insulation resistance is a minimum of 2 megaohms at 500V DC, providing excellent protection against unintended current leakage and electrical shorts. The dielectric strength of 1800V AC per minute at 50Hz further underscores its ability to withstand high voltage conditions, ensuring safe operation in environments prone to voltage surges.

The working environment temperature range of 25T85 allows the micro limit switch to function effectively in diverse climatic conditions, whether in cooler or warmer settings. This temperature tolerance makes it a reliable choice for both indoor and outdoor applications.

With a service life of 5000 cycles, the micro limit switch is built to endure frequent use, reducing the need for frequent replacements and maintenance. This longevity is particularly valuable in applications where the switch is operated regularly, ensuring consistent performance over time.

The applications of the micro limit switch span across multiple sectors. In consumer electronics, it finds use in keypads, remote controls, and electronic toys, providing reliable switching functions. In the automotive industry, it plays a crucial role in control panels, dashboards, and safety systems, contributing to the overall functionality and safety of vehicles.

Industrial equipment relies on the micro limit switch for machinery control, automation systems, and diagnostic tools, where precision and reliability are essential. Medical devices utilize it in equipment interfaces and diagnostic instruments, where accurate control can be a matter of life and death.

Home appliances such as washing machines, microwaves, and air conditioners also benefit from the micro limit switch, ensuring smooth operation and enhanced user experience. In telecommunications, it is employed in network devices and communication equipment, supporting the seamless functioning of critical infrastructure.

The micro limit switch represents a significant advancement in switching technology, offering a compact yet powerful solution for diverse applications. Its combination of precision engineering, versatile terminal options, robust electrical specifications, and long service life makes it an indispensable component in modern electrical and electronic systems. As technology continues to evolve, the micro limit switch is poised to play an even more crucial role in enabling efficient and reliable control mechanisms across various industries.
