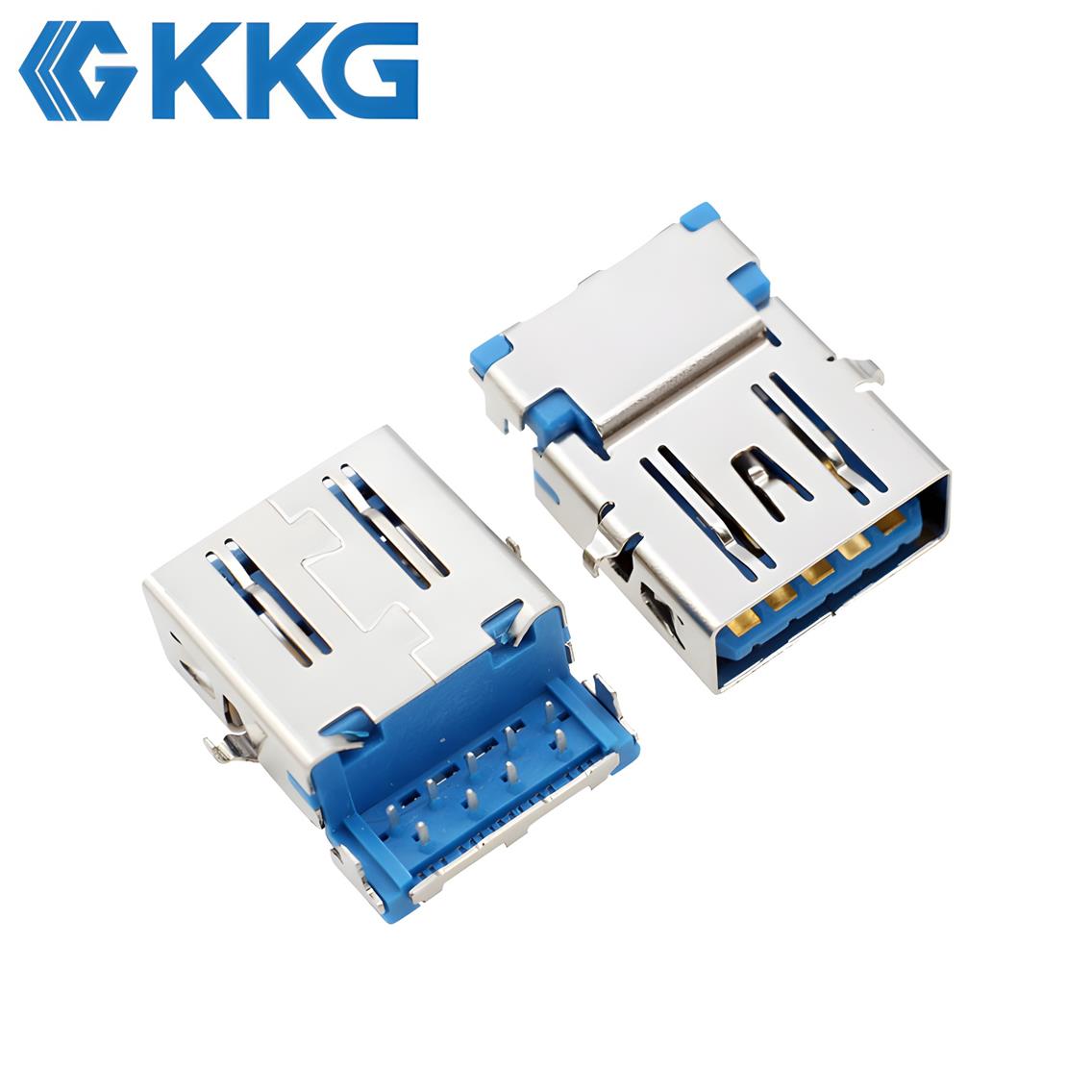

Understanding Dip 3.0 Type-A Connectors: Features And Applications

The DIP (Dual In-line Package) 3.0 Type-A CONNECTOR is a pivotal component in modern electronics, facilitating high-speed data transfer and reliable power delivery. Its design and functionality make it indispensable in various applications, from consumer electronics to industrial systems.

Key Features of DIP 3.0 Type-A Connectors

1. Enhanced Data Transfer Rates

USB 3.0 Type-A Connectors, often referred to as SuperSpeed USB, support data transfer rates up to 5 Gbps. This performance is achieved through an expanded pin configuration, increasing from the traditional four pins in USB 2.0 to nine pins in USB 3.0. The additional pins facilitate full-duplex data transmission, allowing simultaneous sending and receiving of data.

2. Backward Compatibility

A significant advantage of USB 3.0 Type-A Connectors is their backward compatibility with USB 2.0 and USB 1.1 devices. This ensures seamless integration with existing hardware, providing flexibility and ease of use.

3. Robust Mechanical Design

DIP 3.0 Type-A connectors are engineered for durability, withstanding numerous insertion and removal cycles. The standard insertion force is approximately 35 Newtons, ensuring a secure connection without compromising user convenience.

4. Versatile Mounting Options

These connectors are available in various configurations, including right-angle and vertical orientations, catering to diverse PCB layouts and design requirements. The 9-pin DIP design simplifies soldering and ensures a stable mechanical connection to the PCB.

5. Electrical Specifications

Typically, these connectors are rated for a current of up to 1.8 A and a voltage of 30 V, accommodating the power needs of a wide range of devices. The contact resistance is maintained at a maximum of 30 milliohms, ensuring efficient power delivery and signal integrity.

Applications of DIP 3.0 Type-A Connectors

1. Consumer Electronics

In devices such as laptops, desktop computers, and gaming consoles, these connectors facilitate high-speed data transfer and peripheral connectivity.

2. Industrial Automation

In industrial settings, DIP 3.0 Type-A connectors are employed in control systems and diagnostic equipment, where reliable data communication is critical.

3. Medical Devices

Medical equipment often relies on these connectors for transferring large data files, such as imaging data, quickly and securely.

4. Automotive Systems

Modern vehicles integrate these connectors within infotainment systems and diagnostic ports, enhancing user experience and maintenance efficiency.

5. DIY and Prototyping Projects

Hobbyists and engineers utilize DIP 3.0 Type-A connectors in custom projects, benefiting from their ease of integration and reliable performance.

Conclusion

DIP 3.0 Type-A connectors are integral to contemporary electronic systems, offering high-speed data transfer, robust design, and versatile application potential. Their compatibility with existing USB standards and adaptability to various design requirements make them a preferred choice for engineers and designers aiming to create efficient and reliable electronic solutions.
