Introduction

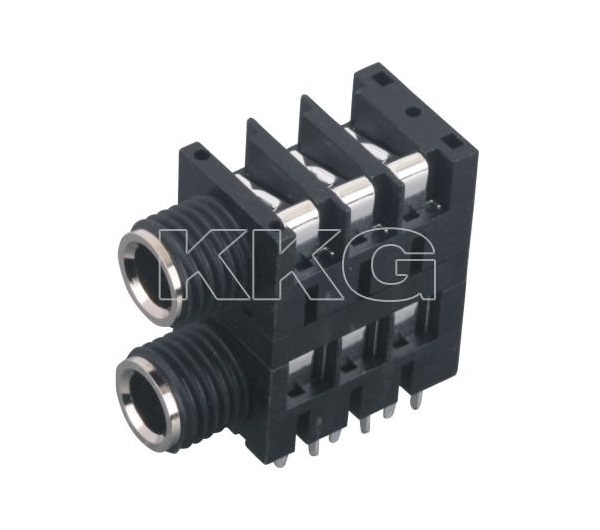

The 6.35 mm Aperture Dip Horizontal Audio Phone Jack, commonly referred to as a 1/4-inch jack, is a standardized audio CONNECTOR widely used in professional and consumer audio equipment. Its design ensures robust signal transmission, durability, and compatibility across various devices. This article explores its technical specifications, applications, and maintenance practices.

Technical Specifications

1. Aperture Size (6.35 mm)

The 6.35 mm (1/4-inch) diameter is the defining feature of this connector, offering a larger contact area compared to smaller jacks (e.g., 3.5 mm). This reduces signal loss (<0.1 dB insertion loss at 1 kHz) and improves mechanical stability. The larger size also accommodates higher current loads (up to 1 A), making it suitable for high-power audio applications.

2. Horizontal Orientation

The horizontal dip design allows for side-mounted installation on audio equipment, optimizing space utilization in rack-mounted systems. The connector typically features a 90-degree angled plug, reducing strain on cables and minimizing wear over time. Its contact resistance is <30 mΩ, ensuring minimal signal degradation.

3. Construction Materials

High-quality phosphor bronze contacts with gold plating (3–5 µm thickness) provide excellent conductivity and corrosion resistance. The housing is often made of thermoplastic or metal, rated for >5,000 insertion cycles. Shielding effectiveness exceeds 60 dB at 100 MHz, reducing electromagnetic interference (EMI).

Applications

1. Professional Audio Equipment

Used in studio mixers, amplifiers, and PA systems for balanced/unbalanced audio connections. Its robust design handles +4 dBu line-level signals and supports XLR-to-jack Adapters for microphone inputs.

2. Musical Instruments

Standard for electric guitars, basses, and keyboards due to its ability to transmit high-impedance signals (10 kΩ–1 MΩ) without significant loss. Pedalboards often use horizontal jacks for compact wiring.

3. Broadcast and Live Sound

Preferred in stage patch bays and broadcast consoles for its durability under frequent plugging/unplugging. Rated for operating temperatures of -20°C to +70°C.

Maintenance Guidelines

1. Cleaning

Use isopropyl alcohol (90%+) and a lint-free swab to remove oxidation from contacts. Avoid abrasive materials that may damage gold plating.

2. Strain Relief

Ensure cables have adequate strain relief to prevent solder joint fractures. Angled plugs reduce lateral forces by ~40% compared to straight plugs.

3. Storage

Store in low-humidity environments (<60% RH) to prevent corrosion. Dust caps reduce contact contamination by 70%.

4. Inspection

Regularly check for loose connectors or bent pins. A multimeter can verify continuity (target resistance: 0.5–2 Ω per contact).

Conclusion

The 6.35 mm horizontal audio jack remains indispensable in professional audio due to its reliability and versatility. Proper maintenance ensures longevity in demanding environments.
