5.5mm/2.1mm M to F DC Cable: A Comprehensive Guide
Introduction

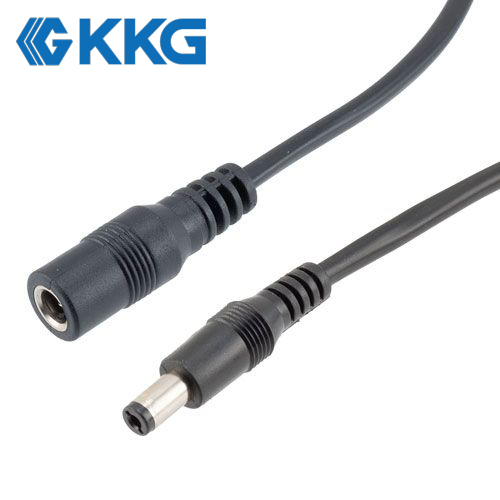

The 5.5mm/2.1mm M to F DC Cable is a specialized power cable designed for low-voltage DC applications. It features a male (M) plug with a 5.5mm outer diameter and a 2.1mm inner pin diameter, paired with a female (F) SOCKET of the same dimensions. This cable is widely used in electronics, telecommunications, and industrial equipment due to its standardized design and reliable performance.
Technical Specifications
CONNECTOR Type: Male to Female (M to F)
Outer Diameter (Male Plug): 5.5mm ±0.1mm
Inner Diameter (Male Pin): 2.1mm ±0.05mm
Voltage Rating: Typically 12V DC, with some variants rated up to 24V DC
Current Capacity: 2A to 5A, depending on wire gauge (commonly 22AWG to 18AWG)
Insulation Material: PVC or TPE, with a temperature range of -20°C to 80°C
Contact Resistance: ≤0.03Ω
Durability: Rated for 5,000+ insertion cycles
Key Features
1. Standardized Dimensions
The 5.5mm/2.1mm configuration is an industry-standard size, ensuring compatibility with a wide range of devices. The precise tolerances (±0.1mm for outer diameter and ±0.05mm for inner diameter) guarantee a secure fit, minimizing power loss due to poor contact.
2. Robust Construction
The cable is constructed with high-quality copper conductors (often oxygen-free copper for better conductivity) and durable insulation materials. The connectors typically feature nickel-plated brass contacts, providing excellent corrosion resistance and low contact resistance (≤0.03Ω).
3. Versatile Power Delivery
With a current capacity of 2A to 5A (depending on wire gauge), this cable can efficiently power a variety of devices. The voltage rating of 12V DC (or up to 24V DC in some models) makes it suitable for both consumer electronics and industrial applications.
Applications
1. Consumer Electronics
Commonly used to power routers, modems, LED strips, and small audio equipment. The standardized 5.5mm/2.1mm size ensures compatibility with many off-the-shelf power Adapters.
2. Industrial Equipment
Ideal for connecting power supplies to control panels, sensors, and small motors in industrial settings. The robust construction withstands vibration and moderate environmental stress.
3. CCTV and Security Systems
Widely employed in security camera installations where 12V DC power is required. The female connector end often interfaces with camera power inputs, while the male end connects to power supplies or distribution boxes.
4. DIY Electronics
Popular among makers and hobbyists for prototyping and powering custom electronics projects due to its availability and ease of use.
Maintenance and Care
1. Proper Handling
Always grasp the connector body (not the cable) when inserting or removing. Excessive bending near the connector can cause wire fatigue and eventual failure. The minimum bend radius should be no less than 5 times the cable diameter.
2. Cleaning
Periodically clean contacts with isopropyl alcohol (90% concentration or higher) and a lint-free cloth. For heavily oxidized contacts, use a contact cleaner specifically formulated for electrical connections.
3. Storage
Store in a dry environment with temperature between -10°C to 50°C. Avoid coiling too tightly - loops should be at least 10cm in diameter to prevent conductor damage. Use cable ties loosely to prevent compression of the insulation.
4. Inspection
Regularly check for:
Fraying or cracks in the insulation
Loose connections at the connector strain relief
Corrosion on the metal contacts (appears as greenish deposits)
Deformation of the center pin (should be perfectly cylindrical)
Troubleshooting
1. Intermittent Power
If experiencing intermittent connections:
Check for bent center pins using calipers (should measure 2.1mm)
Inspect the female socket for worn or expanded contacts
Measure continuity with a multimeter (resistance should be <0.5Ω end-to-end)
2. Overheating Issues
If the cable becomes warm during use:
Verify the current draw doesn't exceed the cable's rating (check wire gauge)
Examine connections for oxidation increasing resistance
Consider upgrading to a thicker gauge cable if consistently operating near capacity
