What Is a High Definition HDMI Connector and How Does It Work?

A High Definition HDMI (High-Definition Multimedia Interface) CONNECTOR is a compact audio/video interface designed for transmitting uncompressed digital data from source devices such as computers, gaming consoles, and Blu-ray players to display devices like TVs, monitors, and projectors. As a standard in consumer electronics and professional AV applications, HDMI connectors play a crucial role in delivering high-quality video and multi-channel audio signals with a single cable.

At the heart of its functionality, an HDMI connector uses Transition-Minimized Differential Signaling (TMDS) technology to transmit data at high speeds with minimal signal loss. TMDS encodes the digital signal to reduce electromagnetic interference and maintain data integrity, especially over longer cable lengths. This makes HDMI ideal for high-definition video formats such as 1080p, 4K, and even 8K resolutions, as well as for advanced features like HDR (High Dynamic Range), 3D video, and high-refresh-rate gaming.

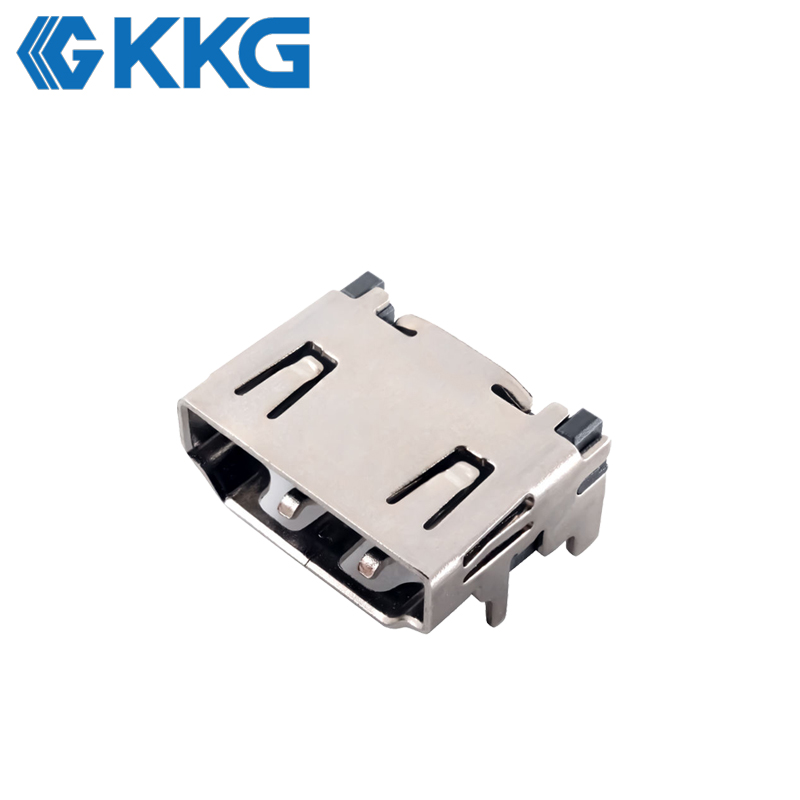

The HDMI connector itself consists of 19 pins, each responsible for carrying different types of signals, including video, audio, clock, and control data. Among these are three TMDS channels that carry the video and audio data, one clock channel to synchronize the data flow, and additional pins for features like Consumer Electronics Control (CEC), Display Data Channel (DDC), and Hot Plug Detection (HPD). This pin configuration allows HDMI to support both video and audio on the same interface, simplifying cable management and improving device compatibility.

There are several types of HDMI connectors, including the standard Type A (used on most TVs and AV equipment), Mini HDMI (Type C) for tablets and camcorders, and Micro HDMI (Type D) for smartphones and smaller portable devices. Despite differences in size, all hdmi types are capable of delivering the same high-definition performance, provided that the cable and ports meet the necessary version specifications.

HDMI versions have evolved significantly since the interface was introduced. HDMI 1.4 brought support for 3D video and 4K at 30Hz, while HDMI 2.0 increased bandwidth to support 4K at 60Hz and enhanced audio return channel (eARC). HDMI 2.1, the latest major standard, supports resolutions up to 10K, dynamic HDR, Variable Refresh Rate (VRR), and data transfer rates of up to 48Gbps. This makes HDMI 2.1 ideal for next-generation gaming consoles, high-performance graphics cards, and state-of-the-art home theater systems.

Another important feature of HDMI connectors is their support for HDCP (High-bandwidth Digital Content Protection), a form of digital copy protection developed by Intel. HDCP ensures that content such as movies and premium streaming services is securely transmitted between devices and cannot be intercepted or recorded illegally. Most HDMI-enabled devices today are HDCP compliant, which is essential for playing protected content.

In terms of physical durability, high-quality HDMI connectors often come with gold-plated contacts, shielding, and reinforced cables to ensure long-term reliability and reduced signal degradation. These enhancements are especially important in professional or industrial applications where connectors may be frequently plugged and unplugged, or exposed to environmental stresses.

Installation and use of HDMI connectors are generally straightforward. The connector is keyed, meaning it can only be inserted in one orientation, reducing the risk of damage. Once connected, most devices automatically detect the HDMI signal and configure themselves to display the correct resolution and refresh rate. Plug-and-play compatibility is one of the reasons HDMI has become so popular across a wide range of consumer and commercial electronics.

In conclusion, a High Definition HDMI Connector is a fundamental component in today’s digital media ecosystem. By combining high-speed data transmission, audio and video integration, and support for advanced technologies, HDMI connectors enable seamless connectivity between a broad range of devices. Whether used for home entertainment, gaming, conferencing, or industrial applications, HDMI continues to set the standard for high-definition digital signal transmission.
