Multi-Position Rocker Power SWITCH: Technical Overview and Applications

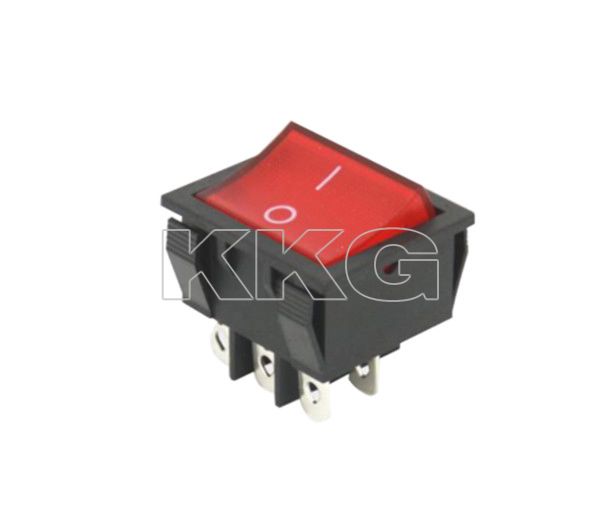

The Multi-Position Rocker Power Switch is an electromechanical component designed for controlling electrical circuits in various devices and equipment. Characterized by its paddle-shaped actuator that rocks back and forth, this switch type offers multiple discrete positions, typically ranging from 2 to 6 positions, allowing for complex switching configurations beyond simple on/off functionality. The rocker design provides intuitive operation through a seesaw motion that alternately makes and breaks electrical contacts with an operating force typically between 2N and 5N, ensuring positive tactile feedback to the operator.

Technical Characteristics with Professional Data

The electrical characteristics of multi-position Rocker Switches demonstrate their robustness in circuit control applications. Standard switches typically carry UL/CSA certification for 15A at 125VAC and 10A at 250VAC resistive loads, with some industrial-grade models rated for 20A at 125VAC. The contact arrangement follows SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw) configurations, with some specialized versions offering 3PDT arrangements for complex control scenarios. The electrical life expectancy ranges from 10,000 cycles at full rated load to over 50,000 cycles at reduced loads, with arc suppression technologies implemented in higher-end models to minimize contact erosion.

Mechanically, these switches exhibit exceptional durability with operating temperatures ranging from -40°C to +85°C for standard models and up to 105°C for high-temperature variants. The actuator travel typically measures 3-5mm with a crisp snap-action mechanism that provides an audible click sound of 50-70 dB when operated. The terminal types include quick-connect (0.187" or 4.8mm), solder lug, and printed circuit board (PCB) mount versions with lead spacing of 10mm or 12.7mm for compatibility with standard board layouts. The panel cutout requirements are precisely standardized at 13.5mm × 19mm for single-pole switches and 21.5mm × 27mm for double-pole configurations in most international standards.

Application Scenarios

Multi-position rocker switches find extensive application across numerous industries due to their versatility and reliability. In the consumer electronics sector, they serve as primary power control devices in desktop computers, audio/video equipment, and home appliances, where their multiple positions allow for mode selection (e.g., off-low-medium-high) in addition to primary power switching. The automotive industry utilizes sealed variants in vehicle dashboards for controlling auxiliary systems like fog lights, winches, and power accessories, with specific models designed to withstand the harsh automotive environment including temperature extremes and vibration exposure.

Industrial applications represent a significant market for these switches, where they control machinery, manufacturing equipment, and power distribution systems. In these settings, switches with high interrupt ratings (16A-20A at 250VAC) and reinforced insulation are employed to ensure operational safety and compliance with international standards such as IEC 61058 and UL 20. The medical equipment industry requires specialized versions with smooth surfaces, clinical-grade materials, and enhanced sealing for infection control, used in devices ranging from patient monitors to diagnostic equipment where reliable operation is critical.

Marine and aerospace applications demand switches with exceptional environmental resistance, including protection against salt spray, humidity, and wide temperature fluctuations. These specialized switches often incorporate environmentally sealed construction meeting MIL-S-22710 and other military specifications, with gold-plated contacts for low-level circuit reliability. Additionally, the renewable energy sector employs heavy-duty versions in solar power systems, wind turbines, and battery management systems where they provide isolation and mode selection functions with minimal contact resistance to maximize system efficiency.

Maintenance Procedures

Proper maintenance of multi-position rocker switches is essential for ensuring long-term reliability and safety. Preventive maintenance begins with regular visual inspections for signs of physical damage, discoloration, or deformation of the actuator and surrounding panel area, which may indicate overheating or mechanical stress. For switches operating in dirty environments, periodic cleaning with isopropyl alcohol (90% concentration or higher) and a soft brush helps remove contaminants that might compromise electrical isolation or mechanical operation. Compressed air (maximum 30 PSI) may be used to dislodge particulate matter from the actuator crevices, taking care not to damage the switching mechanism.

Electrical maintenance involves periodic verification of terminal tightness with a calibrated torque screwdriver (typically 0.6-0.8 Nm for quick-connect terminals) to prevent heating due to loose connections. Contact resistance should be measured periodically using a low-resistance ohmmeter (milliohmmeter) with the switch in each position; values exceeding 50mΩ indicate contact degradation requiring replacement. For switches controlling inductive loads, inspection for contact arcing should be performed using appropriate safety procedures, with replacement recommended if visible pitting exceeds 50% of the contact surface area.

Operational testing should be conducted at intervals corresponding to the switch's duty cycle, typically every 10,000 operations for heavy-use applications. The test should verify positive detent in each position, full actuator travel, and crisp operation without hesitation or binding. Switches exhibiting sluggish operation may benefit from specialized contact cleaner applications, though manufacturers generally recommend replacement rather than repair for safety-critical applications. Environmental seals should be verified annually for IP-rated switches using appropriate testing methods to maintain their protection rating, with particular attention to the integrity of the sealing gasket between the switch body and panel.

When replacement is necessary, it must be performed with an identical or manufacturer-approved equivalent switch with matching electrical ratings, terminal configuration, and physical dimensions. Power must be completely disconnected before replacement, and verification of de-energization should be performed using appropriate voltage testing equipment. Following installation, operational testing under actual load conditions should be conducted while monitoring for abnormal heating, with infrared thermography recommended for quantitative assessment (temperature rise should not exceed 30°C above ambient under rated load).
