What is The Rotary Switch Encoder?

Comprehensive Introduction to Rotary SWITCH Encoder

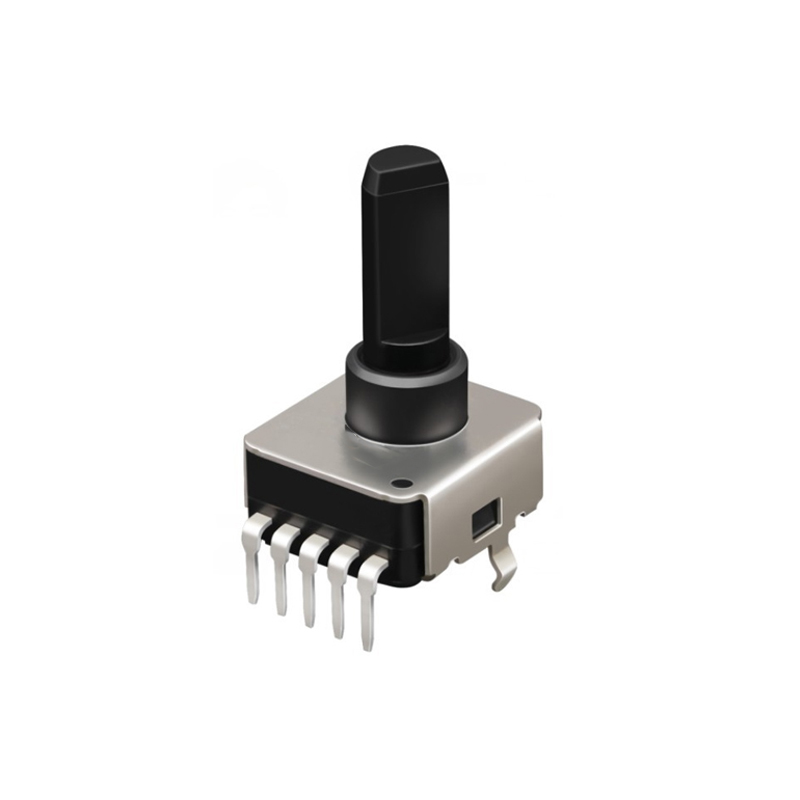

A rotary switch encoder, often simply termed a rotary encoder or shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft into analog or digital output signals. Unlike a simple potentiometer, most modern rotary encoders provide digital outputs, making them essential for precise motion sensing and position control in a vast array of electronic systems. They are categorized primarily into two types: Absolute Encoders, which provide a unique digital code for each shaft position, and Incremental Encoders, which output pulses to indicate movement relative to a known starting point.

Key Characteristics and Technical Data

The performance and selection of a rotary encoder are dictated by several critical characteristics, each with associated professional data points. Resolution is paramount, defining the number of distinct positions per revolution (PPR). Incremental encoders commonly offer resolutions ranging from 12 to 1024 PPR for standard models, with high-precision versions exceeding 10,000 PPR. Absolute encoders' resolution is expressed in bits; common models feature 10-bit (1024 positions) or 12-bit (4096 positions) resolution, while advanced multi-turn absolute encoders can achieve up to 25 bits or more of total data. Another vital characteristic is the operating frequency or maximum response frequency, which dictates the maximum rotational speed the encoder can accurately track. This can range from 30 kHz to over 500 kHz for incremental models, supporting shaft speeds of tens of thousands of RPM.

The output signal type is a fundamental differentiator. Incremental encoders typically output square wave signals in channels A and B, phased 90 degrees apart (in quadrature) to indicate direction, along with a separate index (Z) pulse per revolution. These signals often conform to standard electrical interfaces like TTL (5V) or HTL (10-30V). Absolute encoders output parallel binary, serial protocols (e.g., SSI, BiSS, PROFIBUS-DP), or fieldbus signals (e.g., PROFINET, EtherCAT), transmitting the complete position value with each communication cycle. Mechanical life is a key reliability metric, typically rated for 50 to 100 million revolutions for high-quality industrial encoders, dependent on bearing quality and operational load. Furthermore, robust devices feature an IP (Ingress Protection) rating such as IP64 (splash proof) or IP67 (dust tight and protected against immersion), ensuring reliable operation in harsh environments. Operating temperature ranges are also critical, often spanning from -40°C to +85°C or higher.

Primary Application Scenarios

The unique combination of precision, durability, and digital feedback makes rotary encoders indispensable across numerous industries.

Industrial Automation and Robotics: This is perhaps the most demanding application domain. Rotary encoders are integrated into servo motors, CNC machines, robotic arms, and conveyor systems to provide closed-loop feedback for precise position, velocity, and torque control. In a CNC milling machine, an absolute encoder on a motor ensures the tool head knows its exact position upon power-up, eliminating the need for a homing sequence and preventing catastrophic errors.

Consumer Electronics: In this domain, encoders provide a intuitive human-machine interface. They are the central component in the scroll wheels of computer mice, the navigation knobs on professional audio mixing consoles, and the input dials on smart home thermostats and oven controls. Their digital nature allows for infinite rotation in many cases, a significant advantage over potentiometers.

Automotive and Aerospace: Here, reliability under extreme conditions is paramount. Encoders are used in throttle position sensing, steering angle measurement, and headlight leveling systems. In aerospace, they provide feedback for flight control surfaces, throttle quadrants, and antenna positioning systems.

Medical Equipment: Precision and sterility are critical. Rotary encoders are found in devices like dialysis machines for controlling fluid flow rates, in surgical robots for providing haptic feedback and precise movement control, and in adjustable hospital beds and dental chairs for smooth and accurate positioning.

Telecommunications: Large absolute encoders are crucial for positioning satellite communication dishes and radio antennas with extreme accuracy, ensuring optimal signal strength and tracking.

Maintenance and Care Procedures

Proper maintenance is crucial for ensuring the long-term accuracy and reliability of a rotary encoder. The specific procedures depend heavily on the type of encoder (optical, magnetic, capacitive) and its environmental sealing.

For preventive maintenance, regular visual inspections are the first line of defense. Check for any signs of physical damage to the housing, shaft, or coupling. Inspect the CONNECTOR and cable for wear, cracks, or pin damage. Ensure that all mounting screws are tight to prevent misalignment, which is a common source of premature failure. The shaft coupling must be checked for backlash and wear; a worn coupling will introduce error and vibration into the system. It is also critical to ensure that the operating environment remains within the encoder's specified ratings for temperature, humidity, and vibration.

Cleaning must be performed with care. For encoders with lower IP ratings used in benign environments, use a soft, dry, lint-free cloth to wipe the exterior. If necessary, slightly dampen the cloth with isopropyl alcohol, but ensure no liquid enters the device. For sealed industrial encoders (IP67 and above), the exterior can be cleaned more aggressively with solvents, but the breather/drain valve (if present) must not be damaged. Never submerge an encoder unless its IP rating explicitly permits it (e.g., IP67 for temporary immersion). Compressed air can be used to blow dust and debris away from the body and shaft seal, but the pressure should be low to avoid damaging internal seals or forcing contaminants inside.

Critical precautions must be observed. Avoid subjecting the encoder to mechanical shock or excessive axial/radial load on the shaft beyond its datasheet specifications, as this will quickly degrade the bearings. Ensure the electrical connections are made correctly and that the power supply is within the specified voltage range and free of spikes; electrical overstress is a leading cause of failure. For optical encoders, which contain a light source and a code disk, the internal components are highly sensitive. These devices should only be opened in a certified cleanroom environment; otherwise, contamination of the code disk will permanently degrade performance. In most cases, internal maintenance of an optical encoder is not practical, and the unit should be replaced if internal failure is suspected.

Ultimately, the best maintenance strategy for high-reliability applications is to follow the manufacturer's guidelines precisely, operate the device within its specified parameters, and implement a schedule for periodic inspection and testing. When performance drifts or failure occurs, replacement with a certified unit is often the most cost-effective and reliable solution compared to attempted repair.
