In industrial control, electronic devices, and various terminal products, SWITCHes serve as core human-machine interaction components. Their performance and design directly impact operational convenience and user experience. The Horizontal Illuminated Push Button Switch, with its unique horizontal mounting layout and integrated "operation + indication" advantages, has become the preferred solution for numerous scenarios. It not only realizes circuit on-off control but also provides intuitive status feedback through built-in light-emitting components, significantly enhancing operational accuracy and efficiency in complex environments.
Core Definition, Structure, and Working Principle

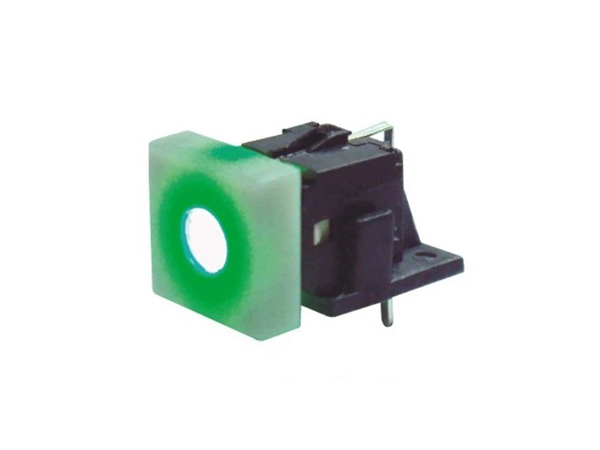

A Horizontal Illuminated Push Button Switch is an electrical switch installed horizontally, integrating press control and light indication functions. Its core design logic combines "mechanical control" with "visual feedback," meeting the basic requirement of circuit switching while allowing users to quickly perceive the switch status through light signals to avoid misoperations.
In terms of structural composition, this type of switch mainly includes five core components:
1. Button Cap: As the direct contact part for human-machine interaction, it is mostly made of plastic or metal. The surface can be designed as transparent, frosted, or with logos, facilitating light transmission and adapting to different operational feels.
2. Button Stem: Connects the button cap to the internal contact system. When pressed, it transmits mechanical force to trigger the contact action.
3. Contact System: The core electrical component of the switch, responsible for circuit on-off. Contact materials are usually silver alloy or copper alloy to ensure electrical conductivity and service life.
4. Light-Emitting Component: LED is the mainstream light source, featuring small size, low power consumption, and long lifespan. It can be adapted to different colors (red, green, yellow, blue, etc.) according to requirements, and some support dual-color lighting.
5. Housing and Mounting Structure: Adopts flame-retardant plastic or metal housing with fixed mounting functions. The horizontal layout design enables it to fit side mounting on panels, installation in narrow spaces, or dense control areas. Mounting methods are mostly snap-on or threaded for easy disassembly.
Its working principle is simple and efficient: when the user presses the button cap, the button stem pushes the contact system to switch the circuit on or off. Meanwhile, the light-emitting component is connected to the circuit in parallel or series, lighting up according to the circuit status (on/off) or specific control signals to intuitively feedback the current working status of the switch. For example, the green light of the switch stays on when the device is running, and the red light lights up when there is a fault, allowing operators to grasp the device status without additional inspection.
Key Classifications and Core Features
Main Classification Dimensions
Horizontal illuminated push button switches can be classified according to core functional requirements, with different classifications corresponding to different application scenarios:
1. Classification by Contact Configuration: This is the most commonly used classification method, with core differences in the number of controlled circuits and switching methods. Single-Pole Single-Throw (SPST) switches can only control the on-off of one circuit, featuring simple structure and low cost, suitable for single-function control (such as power switches for small devices). Single-Pole Double-Throw (SPDT) switches can switch between two circuits to achieve "two-choice-one" control (such as forward-reverse switching of devices). Double-Pole Double-Throw (DPDT) switches can control the on-off of two independent circuits simultaneously, adapting to scenarios that require synchronous switching of multiple groups of circuits (such as mode switching of complex instruments).
2. Classification by Actuation Mode: Divided into momentary contact type and latching type. Momentary conTact Switches turn on the circuit when pressed and automatically reset to off when released, suitable for scenarios requiring temporary triggering (such as emergency stop buttons for equipment, temporary start commands). Latching switches keep the contacts on when pressed and need to be pressed again or unlocked by external signals to turn off, suitable for scenarios requiring continuous circuit on-off (such as long-term operation control of equipment, mode locking).
3. Classification by Protection Level: According to the protection requirements of the operating environment, it can be divided into general type, waterproof type (IP65/IP67), dustproof type, high-temperature resistant type (-40℃~125℃), etc. Waterproof and dustproof switches adopt a sealed surface design, which can be used in outdoor equipment, industrial humid environments, or dusty scenarios (such as workshop control cabinets, outdoor lighting control). High-temperature resistant types are suitable for special environments such as automobile engine compartments and industrial high-temperature equipment.
Core Product Features
1. Flexible Installation and Strong Adaptability: The horizontal mounting design breaks the layout limitations of traditional vertical switches, enabling embedding on the side of panels, narrow spaces, or dense control areas. It is especially suitable for scenarios with strict requirements on installation height (such as instrument panels, small terminal equipment).
2. Intuitive Operation and Clear Feedback: The light indication function is its core advantage. LED light colors can be defined according to scenarios (such as red for fault/stop, green for normal/operation, yellow for standby/warning). Even in dimly lit or complex environments, users can quickly identify the switch status and reduce the risk of misoperation.
3. Compact Structure and Reliable Performance: The overall size is small, with a precise internal structure. The contacts have low contact resistance and short bounce time, ensuring sensitive switch action and long service life (usually mechanical life up to 1 million times or more, electrical life up to 500,000 times or more).
4. Functional Expansion and Strong Customization: Supports multiple indication modes such as dual-color lighting, three-color lighting, and flashing lighting. Some products can achieve personalized logos through laser etching. Meanwhile, different voltages (5V, 12V, 24V, 220V, etc.), contact materials, and protection levels can be selected according to requirements to adapt to diverse scenarios.
Wide Application Scenarios
With the advantage of integrated "control + indication," horizontal illuminated push button switches have penetrated into multiple fields such as industrial production, transportation, household appliances, and instruments, becoming indispensable core components:
1. Industrial Control Field: In industrial control cabinets, PLC control systems, and production line equipment, they are used for equipment start-stop control, mode switching, fault reset, etc. For example, the start/stop buttons of workshop assembly lines indicate the running status with green constant light and the shutdown status with red light. The mode switching buttons of CNC machine tools distinguish automatic mode, manual mode, and edit mode by different colors.
2. Transportation Field: The control areas of automobiles, ships, rail transit, and other equipment. For example, the headlight control, air conditioning mode switching, and warning light buttons on automobile center consoles allow drivers to quickly identify the operation status while driving through the light indication function. The control buttons of navigation equipment in ship cockpits can adapt to the marine humid environment due to their waterproof and dustproof characteristics.
3. Household Appliances Field: The operation panels of high-end household appliances, such as program selection buttons for washing machines, function switching buttons for refrigerators, and start/pause buttons for microwave ovens. The soft LED lights enhance the operation experience and allow users to intuitively understand the working status of the equipment.
4. Instrumentation Field: Control components of precision instruments such as medical equipment, testing instruments, and communication equipment. For example, parameter adjustment buttons of medical monitors and function switching buttons of oscilloscopes adapt to the compact layout and high-precision operation requirements of the instruments with their small size and clear indication.
5. Outdoor and Special Environments: Outdoor lighting equipment, security equipment, agricultural machinery, etc. Waterproof and dustproof horizontal illuminated push button switches are adopted to resist the impact of harsh environments such as wind, rain, dust, and vibration, ensuring operational reliability. Examples include control buttons for outdoor street lights and alarm trigger buttons for security cameras.
Selection and Usage Notes
Key Selection Points
1. Clarify Core Requirements: Select the contact configuration (SPST/SPDT/DPDT) according to the number of controlled circuits, the actuation mode (momentary/latching) according to operational needs, and the protection level (general/waterproof/high-temperature resistant) according to environmental requirements.
2. Match Electrical Parameters: Confirm that the rated voltage and current of the switch are consistent with the circuit requirements to avoid contact burnout due to overload. The voltage of the light-emitting component should match the system power supply, and products with current-limiting resistors should be selected if necessary.
3. Consider Installation and Operation: Select the external size and mounting method (snap-on/threaded) of the switch according to the installation space size. The material and feel of the button cap should adapt to the usage scenario. For example, wear-resistant metal button caps can be selected for industrial scenarios, and soft-feel plastic button caps for household appliance scenarios.
4. Pay Attention to Indication Functions: Select the light color and lighting mode (constant light/flashing/dual-color) according to scenario requirements to ensure that the indication signal is clear and easy to understand, avoiding color confusion (such as red should be used only for fault or stop indication as much as possible).
Usage and Maintenance Suggestions
1. Ensure horizontal fixation during installation to avoid button jamming or poor contact due to inclination. Strictly follow the terminal markings during wiring to prevent LED burnout caused by reverse connection of positive and negative poles.
2. Avoid frequent high-intensity pressing to prevent deformation of the button stem or wear of the contacts. For waterproof and dustproof switches, ensure the seals are intact during installation to avoid water and dust ingress affecting performance.
3. Regularly check the switch status. If problems such as light flashing, unresponsive pressing, or poor contact occur, replace it in a timely manner to avoid affecting the normal operation of the equipment. When replacing, select products of the same model and parameters to ensure compatibility.
With its unique structural design, rich functional features, and wide adaptability, the horizontal illuminated push button switch has become an important part of human-machine interaction in modern equipment. From efficient control in industrial production to convenient operation in daily life, it continuously improves the practicality and user experience of equipment through the perfect combination of "operation and indication." With the development of electronic technology, it will evolve towards smaller size, lower power consumption, higher protection level, and more personalized customization, further expanding the application boundaries.
