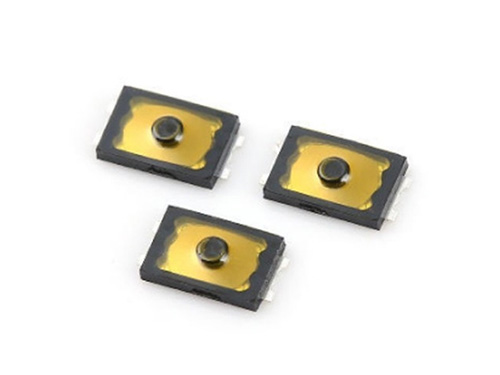

The 2×3×0.6mm 4-pin SMD film high-temperature tactile SWITCH is a miniature tactile film switch compatible with surface mount technology. It combines the installation advantages of SMD components, the thin and light characteristics of film switches, and adaptability to high-temperature working conditions. It is mainly suitable for various miniature precision electronic devices and plays a key control role in consumer electronics, automotive electronics, medical equipment and other fields. The following is a comprehensive introduction from the aspects of fine structure composition, precise performance parameters, segmented application scenarios, core advantages, and selection and use points:
Fine Structure Composition
The structural design of the switch revolves around the core requirements of "miniaturization, High temperature resistance and high stability", and various components work together to ensure the accuracy of circuit on-off and service life:
1. External Package and Pins
The overall shell is made of high-temperature resistant engineering plastics such as LCP (Liquid Crystal Polymer) or PPS (Polyphenylene Sulfide). This type of material can not only resist the erosion of high-temperature environment, but also has excellent structural strength and wear resistance, which can effectively protect internal components. The four pins are symmetrically distributed SMD (Surface Mount Device) patch pins, which are preferably made of highly conductive copper with additional gold plating or silver plating on the surface. The gold/silver plating layer can not only reduce the oxidation rate of the pins, avoid poor contact caused by oxidation during long-term use, but also improve welding firmness and conductivity. It can be quickly and batch welded on the PCB board, which is compatible with the mass production needs of electronic products. The symmetrical distribution design of the pins can also enhance the stability after welding and reduce the risk of falling off caused by slight vibration.
2. Core Internal Components
The core functional component is a 4-pin metal dome, usually in cross or square structure, which is the core to realize tactile feedback and circuit on-off. When pressed, the dome is uniformly stressed and deformed, closely fitting with the conductive contacts below to complete the circuit connection; when released, the dome quickly resets by its own elasticity to disconnect the circuit, and the entire process has clear tactile feedback. Some high-end models will add gold plating or nickel plating on the surface of the dome to further enhance wear resistance and conductivity; the 4-pin dome structure can also disperse pressing pressure, avoid excessive wear at a single point, and extend service life. In addition, there is an insulating layer inside, mostly made of polyester film, which accurately separates each pin from the conductive components, prevents short circuits between pins, and ensures electrical safety.
Precise Performance Parameters
Although the parameters of this size switch vary slightly due to differences in manufacturer processes, a relatively unified standard range has been formed in the industry, and some customized models can be flexibly adjusted according to needs. The specific common parameters are classified as follows:
1. Electrical Parameters
Rated voltage: DC 12V (conventional); Rated current: 50mA (conventional); Contact resistance: commonly ≤30MΩ, high-quality models can be as low as ≤500mΩ; Insulation resistance: ≥100MΩ; Withstand voltage: 250V AC, can withstand 1 minute without breakdown or leakage.
2. Mechanical Parameters
Operating force: optional range 110-330gf, mainstream selection 240-250gf (suitable for the pressing feel needs of most consumer electronics); Key travel: conventional range 0.16-0.25±0.1mm, some customized models can be accurately adjusted to 0.18mm, suitable for the key feedback needs of different devices.
3. Environmental and Life Parameters
Operating temperature: core range of high-temperature models is -40℃~125℃, conventional high-temperature models are -30℃~85℃ (suitable for automotive and industrial high-temperature working conditions); Press life: generally 100,000-300,000 times, high-quality models (such as TAF03-BYF-R) can reach 500,000 times; Protection level: some models support IP67-IP68 waterproof and dustproof, suitable for humid, dusty and other complex environments.
Segmented Application Scenarios
With the ultra-small size of 2×3×0.6mm, ultra-thin thickness of 0.6mm and high-temperature stability, the application of this switch is concentrated in the precision electronic field with strict requirements on space size and environmental adaptability, and most of them assume the key control functions of the equipment:
1. Consumer Electronics Field
It is the core function key of TWS Bluetooth headsets and smart watches, such as power on/off keys and volume adjustment keys, which perfectly meets the "extreme thin and light" design needs of such equipment; it is also used for function keys/shutter Micro Switches of miniature digital players, small Bluetooth speakers and mini cameras to ensure the accuracy and portability of equipment operation.
2. Automotive and Industrial Electronics Field
It is suitable for automotive miniature electronic modules, such as automotive sensors, small function keys of central control panels, miniature keys for window control, etc., and can stably withstand the extreme environment of high temperature in summer and low temperature in winter in the car; in the field of industrial control, it is used for miniature control panels and sensor trigger switches under high-temperature working conditions, which can resist complex conditions such as temperature fluctuations and slight vibrations in industrial scenarios.
3. Medical and Smart Home Field
It is applied to portable medical equipment, such as operation keys of blood glucose meters and small physical therapy instruments, which not only ensures stable performance, but also adapts to the portable design of the equipment; in the field of smart home, it is used for touch auxiliary keys of smart door locks, trigger switches of small environmental sensors, miniature smart controllers, etc., to improve the refined control level of home equipment.
Core Advantages
1. Strong Installation and Adaptability
The ultra-small and ultra-thin size of 2×3×0.6mm almost does not occupy the internal space of the equipment, which perfectly fits the current development trend of "miniaturization and high-density integration" of electronic products; the 4-pin SMD design can not only accurately adapt to high-density PCB boards, but also seamlessly integrate into automated production lines, greatly improving the assembly efficiency of electronic products, reducing labor costs and assisting mass production.
2. Stable Performance and Good Press Experience
The combined design of high-temperature resistant materials and 4-pin dome enables the switch to maintain consistent tactile sensation and stable circuit on-off in environments with frequent pressing and drastic temperature changes, without jamming, delay or false triggering; the IP67-IP68 waterproof and dustproof capability of some models further expands its applicability in complex environments and reduces the risk of equipment failure.
3. Good Compliance and Long Service Life
Most models have passed international environmental certifications such as RoHS and CE, meeting the access requirements of electronic equipment in most regions of the world and suitable for export-oriented products; the press life of more than 100,000 times can match the overall service life of most electronic equipment (such as the conventional service life of TWS Bluetooth headsets and smart watches), reducing the cost of later maintenance and replacement and improving the product user experience.
Selection and Use Points
1. Core Selection Principle: Matching Scenario Requirements
For automotive and industrial high-temperature scenarios, priority should be given to models with an operating temperature range of -40℃~125℃ and LCP shell to ensure high-temperature stability; for wearable devices such as TWS Bluetooth headsets and smart watches, focus on operating force (suggested selection 160-250gf) and key travel to balance pressing feel and equipment thin and light design; for humid and dusty environments (such as bathroom smart equipment, industrial dusty workshops), it is necessary to confirm that the model has IP67 or above waterproof and dustproof level.
2. Usage Notes
Welding link: Strictly control the welding temperature and time to avoid shell deformation and internal dome damage caused by long-term high-temperature baking (it is recommended to follow the SMT welding parameters provided by the manufacturer); Installation link: Ensure that the welding position of the PCB board is clean without impurities and oxidation, and prevent impurities from affecting welding stability and causing poor contact; Storage link: Long-term storage needs to be sealed and moisture-proof to avoid pin oxidation and dome rust due to moisture, which affects performance.
