A Rocker Switch is a widely used electrical SWITCH, known for its distinctive rocking action that toggles between its "ON" and "OFF" positions. It is an essential component in various applications, from household appliances to industrial machines, offering a simple yet effective way to control electrical circuits. Understanding its design, operation, and variations is crucial for selecting the right switch for your needs.
How to Wire a Rocker Switch
Wiring a rocker switch is a relatively straightforward process. It typically involves connecting the switch to the power source and the electrical load. Here's a general guide on how to wire a basic rocker switch:
Prepare the Switch: Identify the terminals of the rocker switch. Most rocker switches have two or more terminals—one for the power input, one for the output, and sometimes an additional terminal for illumination or a secondary circuit.
Connect Wires:
For a single-pole rocker switch, connect the input wire (power supply) to one terminal and the output wire (load) to the other.
If it's an illuminated rocker switch, you may also need to connect a ground wire for the light to function when the switch is turned on.
Secure the Switch: Mount the rocker switch in its designated location (panel, dashboard, etc.) and ensure all connections are secure.
Test the Wiring: After completing the connections, test the switch to ensure it toggles the circuit correctly between ON and OFF.
Types of Rocker Switches
3 Position Rocker Switch
A 3 Position Rocker Switch allows for three distinct positions: ON, OFF, and a middle "alternate" position. These are often used in applications where multiple settings are required, such as controlling a fan with different speed settings or managing a multi-function device.
Waterporoof Rocket Switch

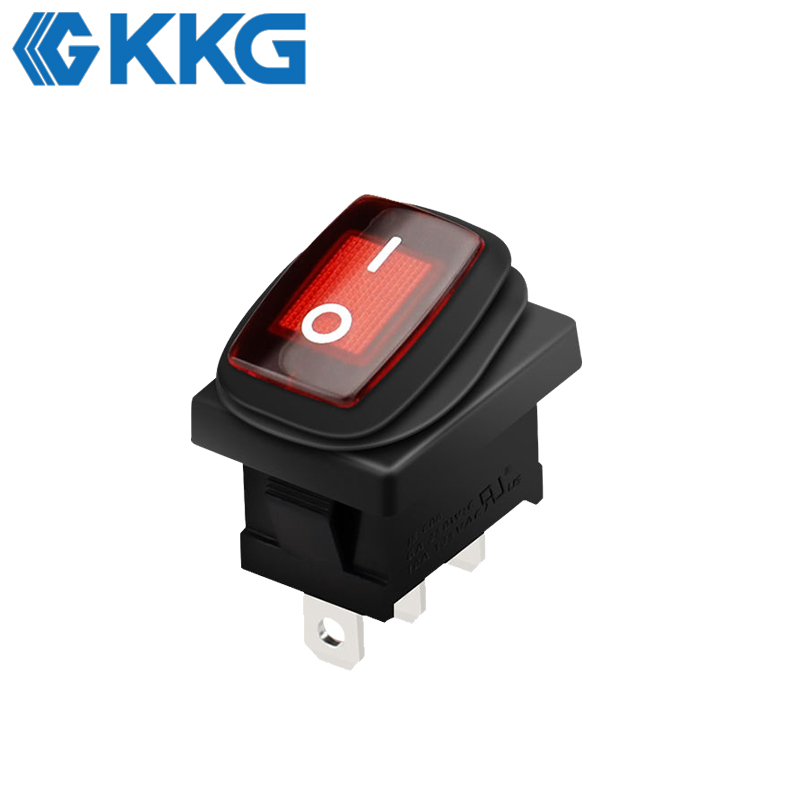

The Waterproof Rocker Switch is designed to withstand exposure to moisture, making it perfect for outdoor and marine environments. Its sealed construction prevents water and dust from interfering with the switch's functionality.
A 3A rocker switch is rated for a current of 3 amps and is commonly used in low-power devices. These switches are ideal for controlling small appliances, electronics, and devices that don’t require a high current capacity.
The 6A Round Rocker Switch features a round design and is rated for 6 amps. This type of switch is often used in automotive and industrial applications where a compact form factor is required but with slightly higher current handling than a 3A switch.
A 7 Pins LED Rocker Switch incorporates an LED indicator to show the switch's status. It features seven pins to connect the power, ground, and LED lighting components. This is particularly useful in applications where you want a visual indication of whether the device is powered ON or OFF.
A Multi-Position Rocker Power Switch allows for multiple settings or power levels, ideal for equipment that requires more than two states. For example, it can control multiple functions like power, low, medium, and high settings, providing versatility in use.
Lighted Rocker Switch
The Lighted Rocker Switch is equipped with an internal light that illuminates when the switch is ON. This type of switch is commonly used in darker environments or when it's essential to easily identify the status of the switch. The LED light is typically powered by the same circuit, making it energy-efficient.
12V Rocker Switch
A 12V Rocker Switch is commonly used in automotive and RV applications, as 12V is the standard voltage for many vehicles. These switches are designed to control devices that operate on 12V DC, such as lights, fans, and other automotive accessories.
Custom Toggle Switch
A Custom Toggle Switch allows users to personalize the switch according to their specific needs. You can choose various features such as the number of positions, materials, and even LED lighting options, making it ideal for projects that require unique switch designs.
ON OFF ON Rocker Switch
An ON OFF ON Rocker Switch is a variation of the rocker switch that provides two ON positions and one OFF position. This switch is often used in applications where a device needs to operate in two different states (e.g., controlling a fan with two-speed settings).
Why Choose Rocker Switches?
Rocker switches offer several advantages, including:
Simplicity: They are easy to use, with a clear tactile feedback when toggling between positions.
Durability: Rocker switches are built to last and can withstand frequent use in various conditions.
Versatility: With different sizes, designs, and current ratings, rocker switches can be customized to fit almost any electrical application.
Safety: Many rocker switches are designed with built-in safeguards, such as waterproof sealing or illuminated indicators, which improve the user experience and ensure safe operation.
Whether you're wiring a 12V rocker switch for your car, choosing a waterproof rocker switch for outdoor use, or selecting a custom toggle switch for a DIY project, rocker switches provide a versatile and reliable solution. By understanding the different types of rocker switches, such as the 3 Position Rocker Switch, 3A Rocker Switch, and illuminated rocker switch, you can ensure that you're selecting the right one for your application.
With proper wiring and installation, rocker switches can be an essential component in your electrical systems, offering functionality, safety, and convenience across a wide range of industries.
