How does a Push Button Switch work?This is a common question for anyone involved in electronics,industrial equipment,or everyday consumer devices.A push button is one of the simplest and most widely used components for controlling electrical circuits.From household appliances to complex machinery,the button SWITCH plays a critical role in enabling user interaction with electronic systems.
At its core,a push switch operates by completing or interrupting an electrical circuit when pressure is applied.Inside the Push Button Switch,there are conductive contacts and a spring mechanism.When the user presses the push button,the internal contacts are forced together,allowing current to flow through the circuit.Once the pressure is released,the spring returns the contacts to their original position,breaking the circuit and stopping the current flow.
One of the most common types is the Momentary Push Button Switch.This type of push switch only remains active while it is being pressed.As soon as the user releases the push button,the circuit returns to its default state.This makes the momentary push button switch ideal for applications such as doorbells,keyboards,and control panels,where temporary activation is required.In contrast,some button switch designs are latching,meaning they stay in their on or off state until pressed again.

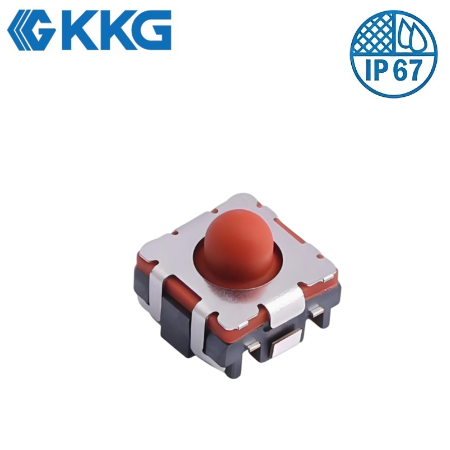

The structure of a push button switch is designed for reliability and ease of use.Most designs include a durable outer housing,a movable actuator(the visible push button),internal contacts,and a return spring.When the button switch is pressed,the actuator moves downward,compressing the spring and connecting the contacts.This simple yet effective mechanism ensures consistent performance over thousands or even millions of cycles.
Another important aspect of a push switch is its configuration.A push button switch can be normally open(NO)or normally closed(NC).In a normally open configuration,the circuit is off until the push button is pressed.In a normally closed configuration,the circuit is on until the button is pressed,which then interrupts the flow.Choosing the right type of button switch depends on the specific application and control requirements.
Modern momentary push button switch designs also come with additional features such as waterproof sealing,LED illumination,and enhanced durability.These improvements make the push switch suitable for a wide range of environments,including outdoor equipment,automotive systems,and industrial machinery.The versatility of the push button switch allows it to be integrated into both simple and complex electronic designs.
In practical applications,the push button is often connected to a larger control system,such as a microcontroller or relay.When the button switch is activated,it sends a signal that triggers a specific function,such as starting a motor,turning on a light,or initiating a process.This makes the momentary push button switch an essential interface between users and electronic systems.
In conclusion,a push button switch works by using a simple mechanical action to control the flow of electricity within a circuit.Whether it is a basic push switch or a more advanced momentary push button switch,the principle remains the same:pressing the push button changes the state of the circuit.Thanks to its simplicity,durability,and versatility,the button switch continues to be a fundamental component in modern electronics and industrial applications.
