Horizontal Illuminated Push Button Switch

Horizontal Illuminated Push Button Switch

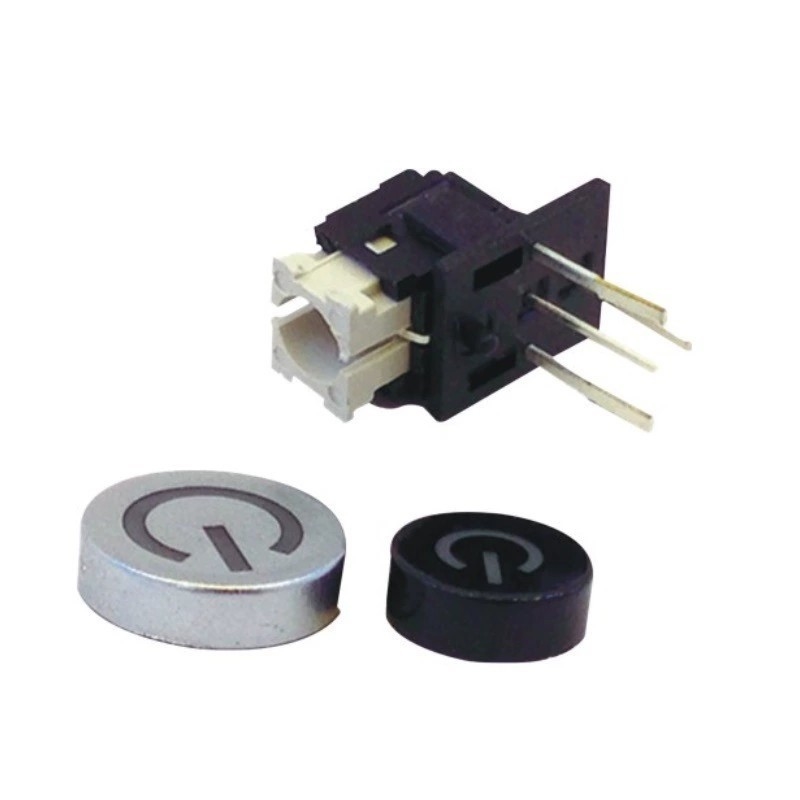

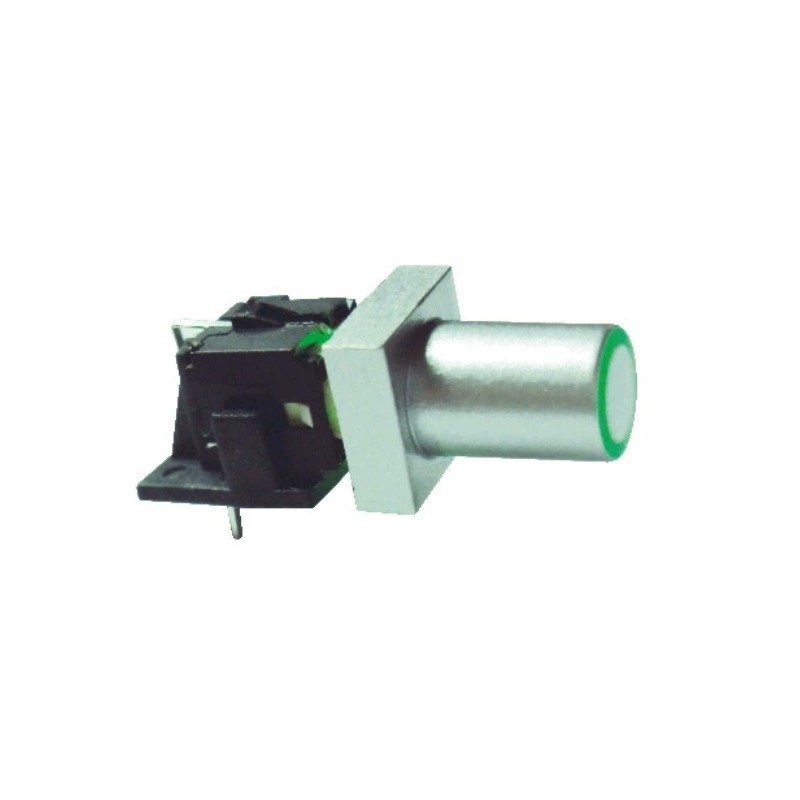

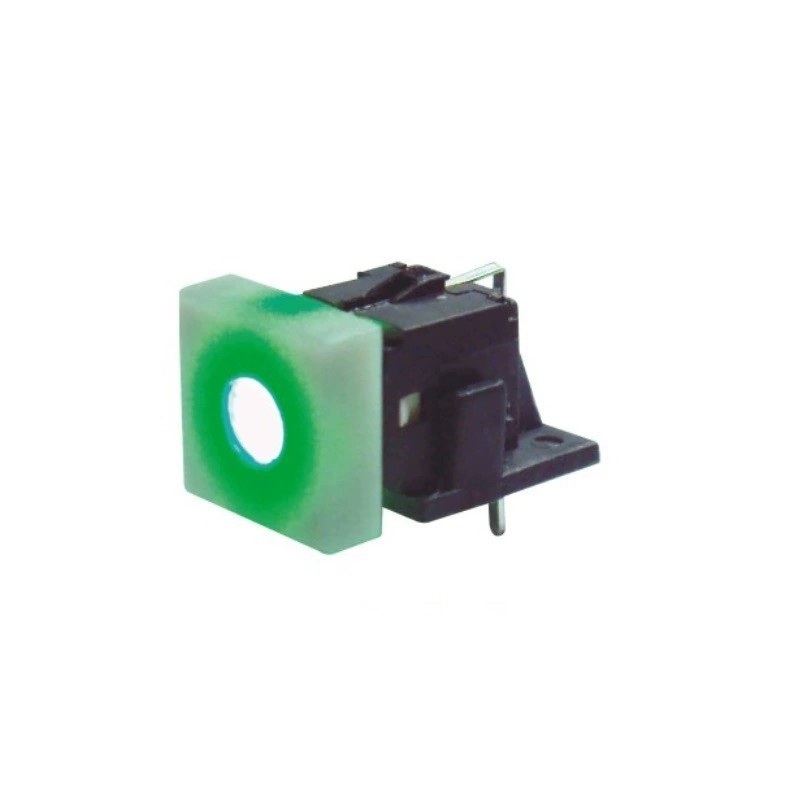

The Horizontal Illuminated Push Button Switch is a versatile and user-friendly control device designed for seamless integration into various applications. This switch features a sleek, horizontal operation mechanism that provides a smooth and responsive push action, making it ideal for environments where space is limited or a streamlined design is required.

One of its key features is the integrated illumination, typically powered by an LED, which offers clear visual feedback on the switch's operational status. This feature is particularly useful in low-light conditions or applications where quick identification of the switch's state is crucial. The illumination is available in multiple colors, including blue, green, yellow, white, and red, allowing for customization to match specific design requirements.

Constructed from high-quality materials such as nylon 6/6 and copper alloy terminals with gold plating, this switch ensures durability and long-term reliability. It has a robust design that supports a wide operating temperature range (-40°C to 85°C) and offers a long operational life of up to 50,000 cycles.

The switch is designed for panel mounting and features a cut-out size of 8mm, making it easy to install in a variety of control panels and devices. It is commonly used in applications such as industrial machinery, home automation, consumer electronics, medical instruments, and broadcasting systems.

With its excellent tactile feel, high reliability, and customizable illumination options, the Horizontal Illuminated Push Button Switch is an ideal choice for enhancing both functionality and aesthetics in modern control systems

Horizontal illuminated button switch is a type of button switch that integrates lighting functions. Its button part can emit light, making it easy to operate in low light environments.

Function: Mainly used to connect or disconnect circuits, while providing intuitive visual feedback indicating the current status of the switch.

2、 Characteristics and advantages

Luminous function: Through the built-in LED or other luminous components, the button can emit light when pressed or not pressed, making it easy for users to recognize and operate.

Horizontal installation: This switch is designed for horizontal installation and is suitable for various situations with small flat and spatial limitations.

Multiple designs: Provide multiple button and border designs to meet the needs of different users and application scenarios.

Durability: High quality materials and manufacturing processes are used to ensure that the switch has a long service life and stable performance.

3、 Application scenarios

Household items: such as control panels for consumer electronics products such as televisions and speakers.

Industrial automation: used in automated production lines and machinery equipment to control the functions of starting, stopping, and adjusting equipment.

Medical equipment: Provide intuitive operation interface and status indication on the control panel of medical equipment.

Transportation: Used to control various systems and equipment on vehicles, ships, and airplanes.

4、 Technical principles

Electronic switch: Most modern horizontal illuminated button switches are designed based on the principle of electronic switches, which achieve switching functions by turning on or off circuits.

Light emitting components: Built in LEDs or other light emitting components emit light when powered on, providing illumination for buttons.

Microprocessor control: In some advanced applications, the horizontally illuminated button switch may also integrate microprocessor control functionality to achieve more complex logic control and status indication.

characteristic

Lighting function:

The horizontal strip light button switch is equipped with LED or other lighting components, which can emit bright light in low light or nighttime environments, ensuring that users can clearly see the position and status of the switch.

The lighting colors are diverse, commonly including red, green, blue, etc., which can be selected according to actual needs to meet different visual requirements and equipment status indicators.

Structural design:

The horizontal installation method makes the switch more ergonomic and convenient for users to operate in various postures.

The switch housing is made of high-quality materials such as polyetherimide (PEI), which have excellent weather resistance, wear resistance, and impact resistance, ensuring that the switch can still work normally in harsh environments.

The contacts are made of metal alloy material, which has good conductivity and arc resistance, ensuring stable electrical performance of the switch during long-term use.

Electrical performance:

Rated current: usually 5A@250VAC Or lower, to meet the control requirements of most small current circuits.

Contact resistance: The initial maximum contact resistance is usually less than 100m Ω, ensuring that the switch has good conductivity when closed.

Insulation resistance: At 500VDC, the insulation resistance is usually greater than 1000M Ω, ensuring that the switch has good insulation performance when disconnected.

Dielectric strength: usually greater than 1500V (1 minute), ensuring that the switch will not experience breakdown when subjected to rated voltage.

Mechanical properties:

Mechanical lifespan: usually up to 50000 cycles, ensuring that the switch can maintain good operational performance and reliability during long-term use.

Operating force: usually between 250 ± 100 grams, ensuring that users can easily operate without applying excessive force.

Travel: Typically 1.0mm ± 0.3mm (LOCK) or 1.5mm ± 0.3mm (FULL), ensuring a clear tactile sensation and feedback when the switch is pressed or released.

Security:

Horizontal light button switches usually comply with international safety standards such as UL and CSA, ensuring that the switch does not pose any safety hazards to users and equipment during use.

The switch housing is made of fire-resistant and corrosion-resistant materials, which have excellent fire resistance and corrosion resistance, ensuring that the switch can still work normally in fire or corrosive environments.

Application scenarios

The horizontal strip light button switch is widely used in various occasions that require clear indication and convenient operation due to its unique lighting function and structural design. Here are some typical application scenarios:

Industrial control:

On industrial production lines, horizontal light button switches can be used to control the start, stop, and reset operations of various mechanical equipment. Its lighting function allows operators to clearly see the position and status of switches even in low light environments, ensuring the normal operation of the production line.

In industrial automation systems, horizontal strip light button switches can be used to control the signal input and output of various sensors. Its stable electrical performance and reliable mechanical performance ensure the stability and reliability of the system.

Medical equipment:

In medical equipment, the horizontal strip light button switch can be used to control the start and stop of various treatment devices. Its lighting function enables medical staff to accurately locate and operate switches even in low light environments, ensuring patient safety and treatment effectiveness.

In the medical monitoring system, the horizontal strip light button switch can be used to control the alarm and reset operations of various monitoring devices. Its stable electrical performance and clear indication function ensure the accuracy and reliability of the monitoring system.

Consumer Electronics:

In home entertainment equipment, the horizontal strip light button switch can be used to control the on/off and volume adjustment of devices such as televisions and speakers. Its lighting function enables users to easily locate and operate the switch at night, thereby improving their user experience.

In smart home systems, the horizontal strip light button switch can be used to control the on/off and status indication of various smart devices. Its convenient operation method and clear indication function enable users to easily control various devices in their homes, achieving the convenience and intelligence of smart homes.

Transportation:

In transportation equipment, the horizontal strip light button switch can be used to control the on/off and status indication of various signal lights and indicators. Its lighting function allows drivers to clearly see the status of signal lights and indicators even at night or in adverse weather conditions, ensuring driving safety.

In railway and subway systems, horizontal light button switches can be used to control the start and stop operations of various control systems. Its stable electrical performance and reliable mechanical performance ensure the normal operation and safety performance of railway and subway systems.

Maintenance methods

In order to ensure the normal use and extend the service life of the horizontal strip light button switch, regular maintenance and upkeep are required. Here are some common maintenance methods:

Cleaning:

Regularly clean the switch to remove dust and dirt from the surface. Soft fabrics or brushes can be used for wiping, avoiding the use of hard objects or corrosive cleaning agents.

During the cleaning process, be careful to avoid water or other liquids entering the interior of the switch to prevent damage to the electrical and lighting components inside.

Check:

Regularly check whether the contacts, wiring, and housing of the switch are intact, and replace them promptly if there is wear or damage.

Check if the lighting function of the switch is normal. If there are any issues such as non illumination or flashing, promptly check if the lighting components and circuit connections are functioning properly.

Lubrication:

For switches that require frequent operation, a suitable amount of lubricant can be applied to the contacts or sliding parts to reduce friction and wear.

Pay attention to selecting suitable lubricants and avoid using lubricants that are harmful to electrical components.

Storage:

If the switch needs to be stored for a long time, it should be placed in a dry, ventilated, and non corrosive gas environment.

Avoid exposing switches to high temperature, low temperature, or high humidity environments to prevent damage to internal electrical and lighting components.

repair:

If any malfunction or performance degradation is found in the switch, it should be repaired or replaced in a timely manner.

Maintenance should be carried out by professional personnel to avoid unauthorized disassembly and repair, in order to prevent damage to switches or potential safety hazards.

FAQ

1. What is a Horizontal illuminated push button switch?

A Horizontal Illuminated Push Button Switch is a control device designed with a horizontal orientation, featuring integrated LED illumination to provide visual feedback on its operational status. This makes it easier for operators to identify the switch’s status at a glance, even in low-light conditions.

2. Where are Horizontal Illuminated Push Button Switches commonly used?

These switches are widely used in industrial automation, medical equipment, consumer electronics, and transportation systems. They are ideal for applications requiring clear visual feedback, such as control panels, emergency stops, and indicator lights.

3. What are the benefits of using an LED-illuminated push button switch?

LED-illuminated switches offer enhanced visibility, energy efficiency, and longer service life compared to incandescent-lit switches. They also reduce maintenance and operational costs while providing customizable color options.

4. How do I choose the right Horizontal Illuminated Push Button Switch for my needs?

When selecting a switch, consider the application requirements, operating environment, illumination type, size, and contact configuration. Ensure the switch meets specific IP ratings for dust and moisture resistance, and choose from available customization options like color and legend.

5. Are Horizontal Illuminated Push Button Switches durable?

Yes, most illuminated push button switches are designed to withstand harsh environmental conditions such as dust, moisture, and vibrations. Many come with high IP ratings (e.g., IP65 or higher) to ensure longevity.
