DIP Illuminated Switch

Product Description

An illuminated switch is an advanced electrical control component that integrates a switching mechanism with built-in lighting for instant visual feedback. Whether used as an illuminated light switch, illuminated push button switch, or backlit light switch, this product allows users to clearly see the switch status even in low-light or dark environments.

Compared with traditional switches, a lighted light switch or illuminated push button improves usability, safety, and system monitoring. Available in multiple forms such as illuminated mushroom head push button and illuminated selector switch, these switches are widely used in medical devices, consumer electronics, and industrial automation systems.

Product Operating Principle

GE Healthcare Infusion Pumps – Emergency Buttons Illuminated Tact Switch

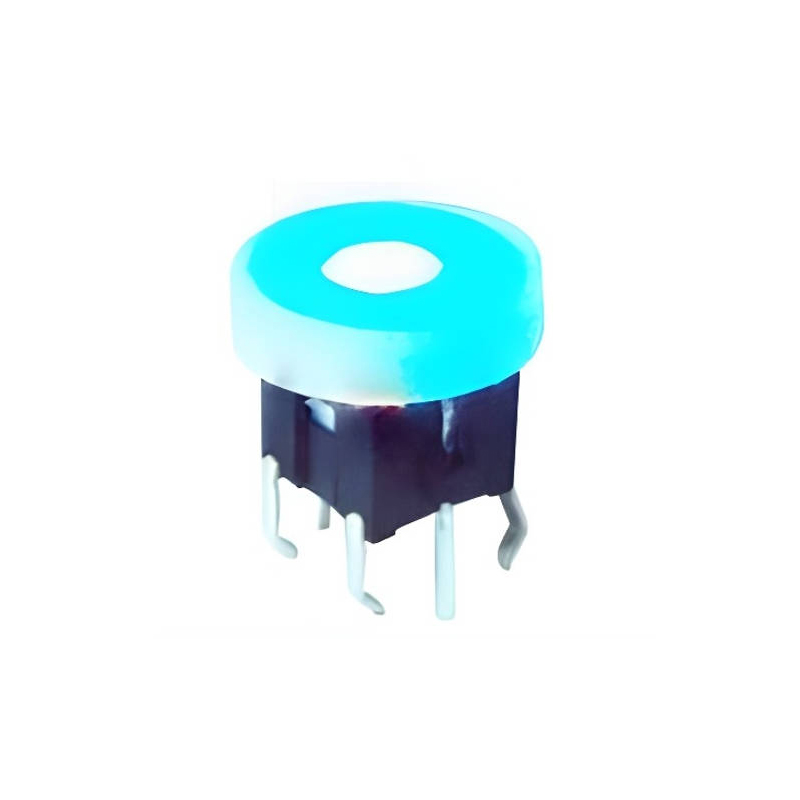

This illuminated switch combines tactile actuation with instant LED illumination to provide real-time status feedback. When the switch is pressed, internal contacts close to complete the circuit while the integrated LED lights up simultaneously, indicating active status.

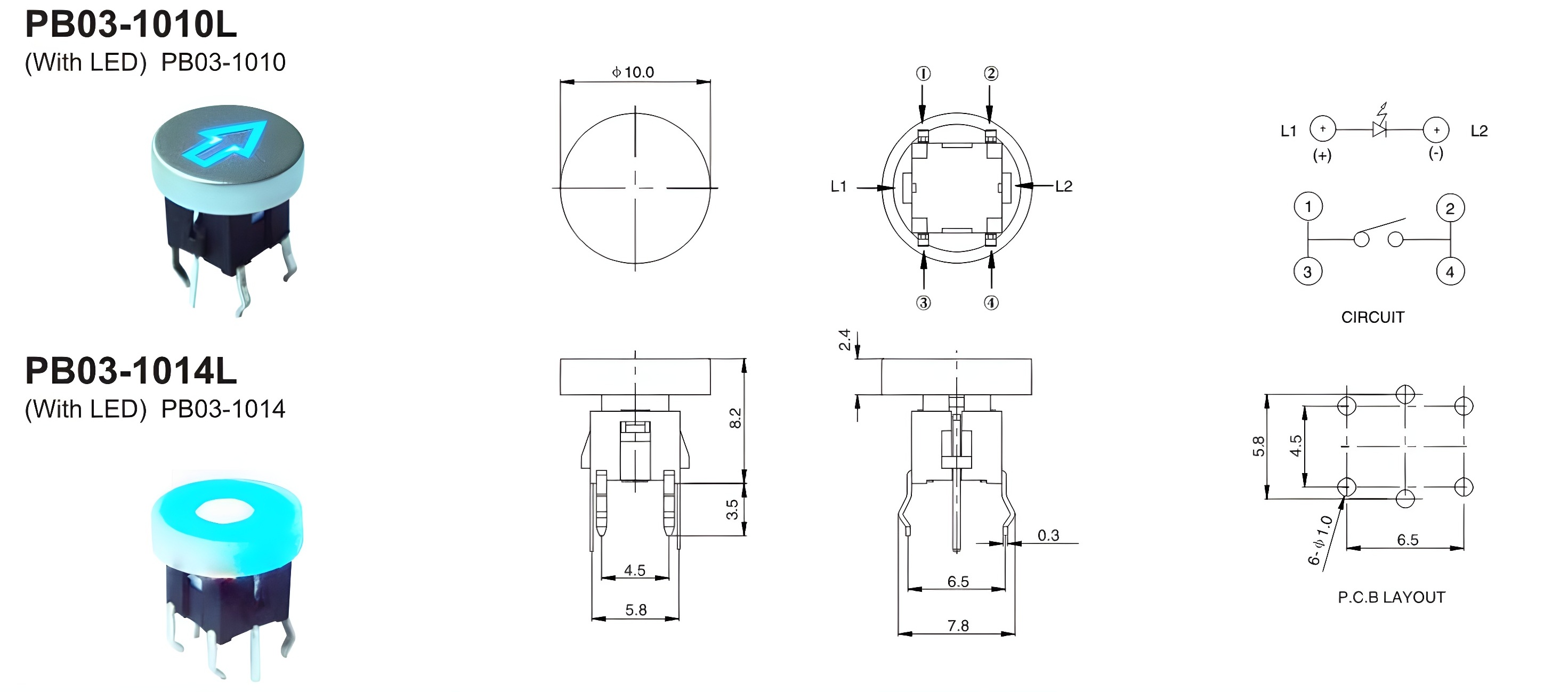

The DIP-mount design ensures secure PCB integration, and the slim height of only 8.2 mm makes it ideal for space-critical applications such as servers, medical equipment, and compact control panels. Once released or switched off, the contacts open and the illumination turns off, clearly signaling the system state.

Key Features

• Integrated LED lighting for clear visual indication

• Supports multiple forms: illuminated push button switch, illuminated selector switch, and illuminated light switch

• High-visibility backlit light switch design for dark environments

• Tactile feedback ensures precise operation

• Slim and compact structure suitable for dense PCB layouts

• DIP-mount configuration for stable and reliable installation

• Long electrical and mechanical lifespan

Product Functions

JBL Speakers – Backlit Power Controls Illuminated Tact Switch

High-Intensity LEDs
Super-bright illumination ensures excellent visibility in low-light conditions.

Customizable LED Colors
LED colors can be customized to match system alerts or operating states (e.g., blue = active, red = fault).

Broad Compatibility
Designed as a direct replacement for Omron SS-5 and Panasonic EVQ series switches, simplifying upgrades and maintenance.

These features make the illuminated push button ideal for modern electronic interfaces requiring both control and indication.

Product Advantages

Enhanced Visibility and Safety

An illuminated light switch or lighted light switch allows users to quickly identify switch location and status, reducing operational errors.

Improved User Experience

Clear illumination and tactile feedback provide a more intuitive and responsive interface compared to standard switches.

Space-Saving Design

The compact structure supports high-density PCB designs without sacrificing performance.

Wide Application Compatibility

From push button switches for lights to industrial control interfaces, illuminated switches adapt easily to different system requirements.

Application Scenarios

Medical Devices

Used in patient monitoring systems and infusion pumps, such as GE Healthcare infusion pumps, where illuminated mushroom head push button switches serve as emergency buttons requiring immediate visibility and response.

Consumer Electronics

Integrated into products like LG TVs and JBL speakers as backlit light switch solutions for power and function control, enhancing user interaction in dim environments.

Industrial Automation

Installed in Rockwell Automation panels and Schneider Electric PLC systems as status indicators and control switches. Illuminated selector switches provide clear machine state feedback in complex industrial settings.

Frequently Asked Questions (FAQ)

Q1: What is an illuminated switch used for?

An illuminated switch is used to control electrical circuits while providing visual status indication. It is commonly applied in medical devices, industrial control panels, and consumer electronics.

Q2: What is the difference between an illuminated push button switch and a standard push button?

An illuminated push button switch includes a built-in LED that lights up when active, making it easier to identify switch status compared to a standard, non-illuminated push button.

Q3: Can illuminated switches be used in low-light environments?

Yes. Backlit light switches and lighted light switches are specifically designed for clear visibility in dark or low-light conditions.

Q4: Are illuminated switches suitable for industrial use?

Absolutely. Illuminated selector switches and illuminated tact switches are widely used in industrial automation for status indication and reliable control.

Q5: Can LED colors be customized?

Yes. Many illuminated push button switches support customizable LED colors to match different system alerts or design requirements.

Conclusion

The illuminated switch is a smart and reliable solution that combines control and indication in one compact component. Whether used as an illuminated light switch, illuminated push button switch, or illuminated mushroom head push button, it enhances safety, usability, and system feedback across medical, industrial, and consumer applications.

With high-visibility lighting, durable construction, and flexible configurations, illuminated switches are an essential choice for modern electronic and electrical control systems.
