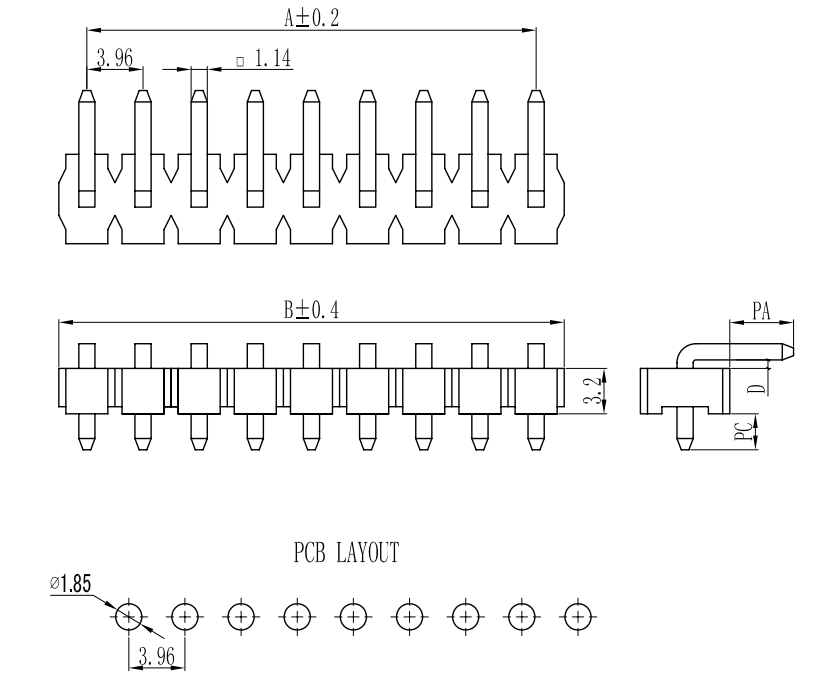

3.96mm Pitch 6Pin Header

Rockwell Automation PLCs Pin Header's Product Operating Principle

• Electrical Connection: Provides reliable signal and power transfer through precisely spaced pins that align with corresponding sockets or mating connectors.

• Mechanical Stability: The wider 3.96mm spacing reduces interference and allows robust mechanical strength, ideal for high-vibration environments.

• Soldered Interface: Through-hole mounting ensures secure solder joints for long-term durability and stable performance in harsh conditions.

BMW 3 Series Dashboard Control Units Pin Header's Product Functions

• Interconnection: Facilitates reliable board-to-board and component interconnections in complex systems.

• Signal Integrity: Maintains clear signal transmission with minimal crosstalk and interference.

• Mechanical Reinforcement: Provides robust physical support and stability, particularly in environments with mechanical stress or vibration.

Marantz Pin Header's Product Applications

• Industrial Control Panels:

• Example: Used in custom control modules for Rockwell Automation PLCs.
  Ensures robust, vibration-resistant connections for reliable operation in factory settings.

• Automotive Electronics:

• Example: Integrated in dashboard control units in vehicles like BMW 3 Series.
  Delivers stable power and signal connections under high-vibration and temperature extremes.

• High-Power Consumer Electronics:

• Example: Employed in high-end audio amplifiers from Marantz for internal board interconnections.
  Provides clear, secure signal routing and power distribution in premium equipment.
