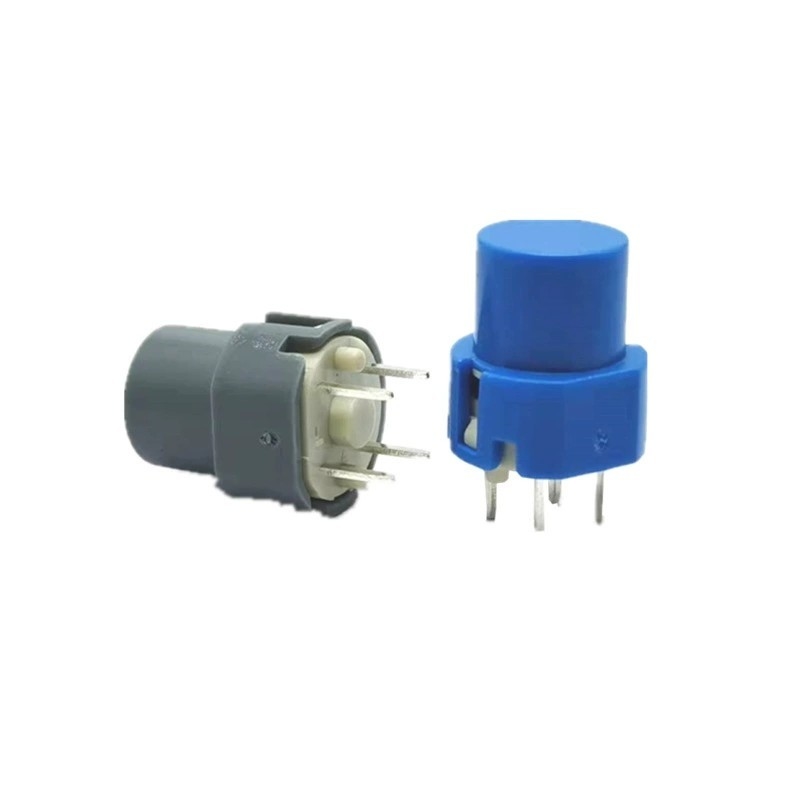

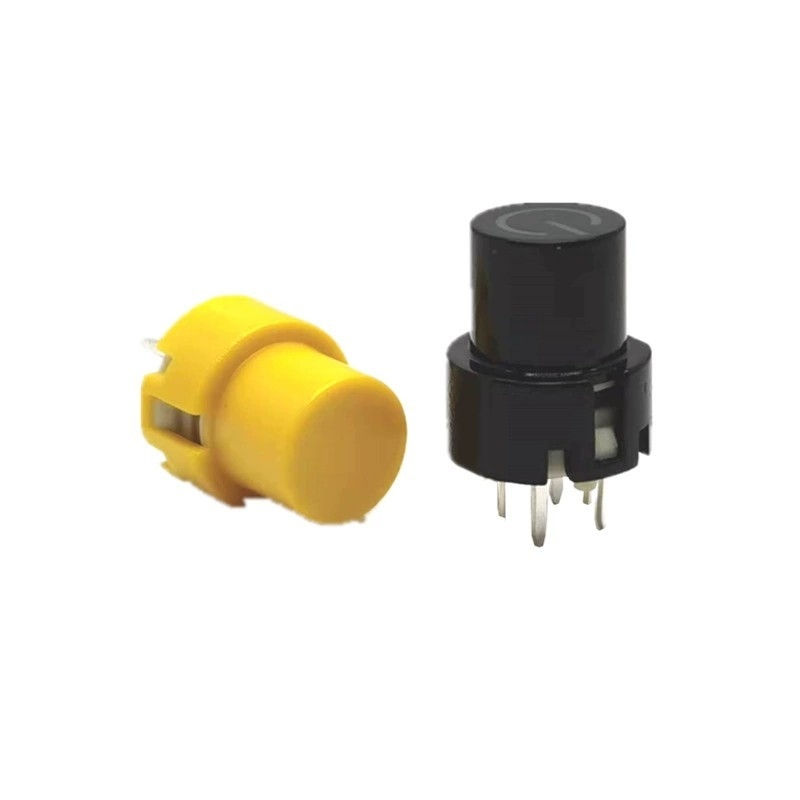

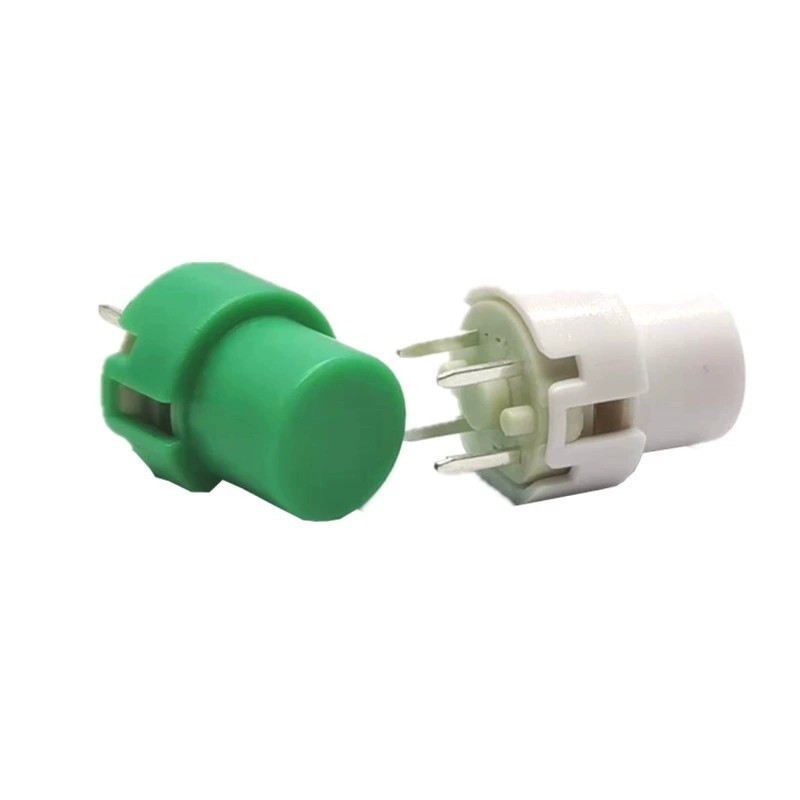

The Multicolor LED Tact Switch is a compact, versatile electronic component combining a tactile push-button with a multicolor LED indicator. It provides both user input functionality and visual feedback through vibrant RGB illumination. Commonly used in consumer electronics, automotive controls, and industrial interfaces, these switches offer a satisfying tactile 'click' response upon actuation. The integrated LED can display multiple colors to indicate various statuses (e.g., power on/off, mode selection, alerts), enhancing user interaction and device aesthetics. Its design is ideal for applications requiring intuitive operation and clear, color-coded system feedback in a single, space-saving package.
| Current: | 10mA (maximum) | Voltage: | 35V DC (maximum) |
| LED: | Yes | Contact Resistance: | ≤50mΩ |
| Insulation Resistance: | ≥100MΩ At 250VDC For 1 Min | Operating Temperature: | -25°C To +75°C |
| Operating Force: | 130gf | Color: | Multicolor |
| Product name | Illuminated tact switch |
| Rating | DC35V 10mA |
| Operating force | 180+/-50gf |
| Life | 100,000 Cycles |
| Travel | 0.25+/-0.1mm |
| Part No | CLA931301D17 |
Here are 5 application domains for Multicolor LED Tactile Switches:
Consumer Electronics:
Used in gaming peripherals (keyboards, mice, controllers) for customizable RGB backlighting and key assignment feedback, enhancing user interaction and aesthetic appeal.
Industrial Control Panels:
Serve as multi-status indicator buttons on machinery HMIs. Different colors instantly communicate machine state (e.g., green-run, yellow-standby, red-fault), combining control and status into a single component.
Smart Home Interfaces:
Ideal for modern control panels and switches. They provide visual feedback (e.g., blue for active connectivity, orange for a timer set, white for basic on/off) while serving as a physical control input.
Automotive Interiors:
Employed in dashboard controls, center consoles, and ambient lighting systems. The tactile switch provides physical feedback, while the multicolor LED adapts to UI themes, driving modes, or notification alerts.
Medical Devices:
Critical in hospital equipment interfaces (ventilators, monitors). The color-coding allows for quick identification of different functions or alarm priorities, reducing operator error in high-stress environments.
Q: What is a Multicolor LED Tact Switch?
A: It combines a tactile push button with a multicolor LED, offering visual feedback (e.g., status indication) in a compact component.
Q: How does the LED change colors?
A: It typically uses RGB LEDs controlled via PWM signals or integrated drivers to mix red, green, and blue light intensities.
Q: Common applications?
A: Used in consumer electronics, industrial controls, gaming peripherals, and smart devices for interactive user interfaces.
Q: Wiring considerations?
A: Requires separate connections for the tactile switch (momentary circuit) and the RGB LED (common anode/cathode pins).
Q: Advantages over standard switches?
A: Provides dual functionality (input + visual cues), saves space, and enhances user experience with color-coded feedback.
Q: How to select one?
A: Check voltage/current ratings, LED color options, lifespan (mechanical cycles), and mounting style (PCB or panel mount).
