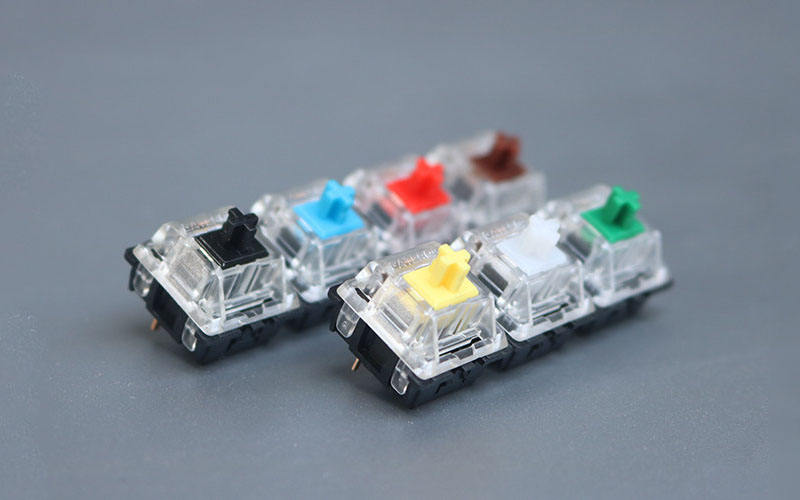

Customized Color RGB Keyboard Switch

Corsair K95 RGB Platinum RGB Keyboard Switch's Product Operating Principle

• Mechanical Actuation: When pressed, the switch registers keystrokes with a crisp tactile response.

• Integrated Illumination: An RGB LED built into the switch illuminates the key, controlled by onboard firmware.

• Customizable Effects: Software controls allow dynamic color and lighting pattern customization per key.

Razer BlackWidow V3 Pro RGB Keyboard Switch's Product Functions

• Keystroke Registration: Ensures fast and accurate input for both gaming and productivity.

• Visual Feedback: Provides dynamic RGB lighting that can indicate system status, macros, or simply enhance style.

• Customization: Supports software-driven lighting profiles to suit personal preferences.

KBDFans RGB Keyboard Switch's Product Applications

• Gaming Keyboards:

• Example: Incorporated in Corsair K95 RGB Platinum keyboards.
  Enhances gaming performance with responsive keys and immersive lighting effects.

• Professional/Multimedia Keyboards:

• Example: Used in the Razer BlackWidow V3 Pro mechanical keyboard.
  Provides precise input and customizable lighting for productivity and creative work.

• Custom/Enthusiast Builds:

• Example: Employed in DIY mechanical keyboard kits like those from KBDFans.
  Enables enthusiasts to build personalized keyboards with unique RGB lighting profiles.

The working principle of Color RGB Keyboard Switch mainly relies on the LED light beads and control chip on the keyboard. Each LED bead can emit light in three colors: red, green, and blue. By controlling the chip to adjust the brightness of the three colors, various color blends and variations can be achieved. At the same time, the control chip can also control the flashing speed, gradient direction and other parameters of the light according to the user's settings, thereby achieving rich lighting effects.

2、 Type and Characteristics

Color RGB Keyboard Switch is usually combined with high-end gaming keyboards or professional typing keyboards, which may use high-quality switch types such as mechanical switches and capacitive switches. These switch types have the following characteristics:

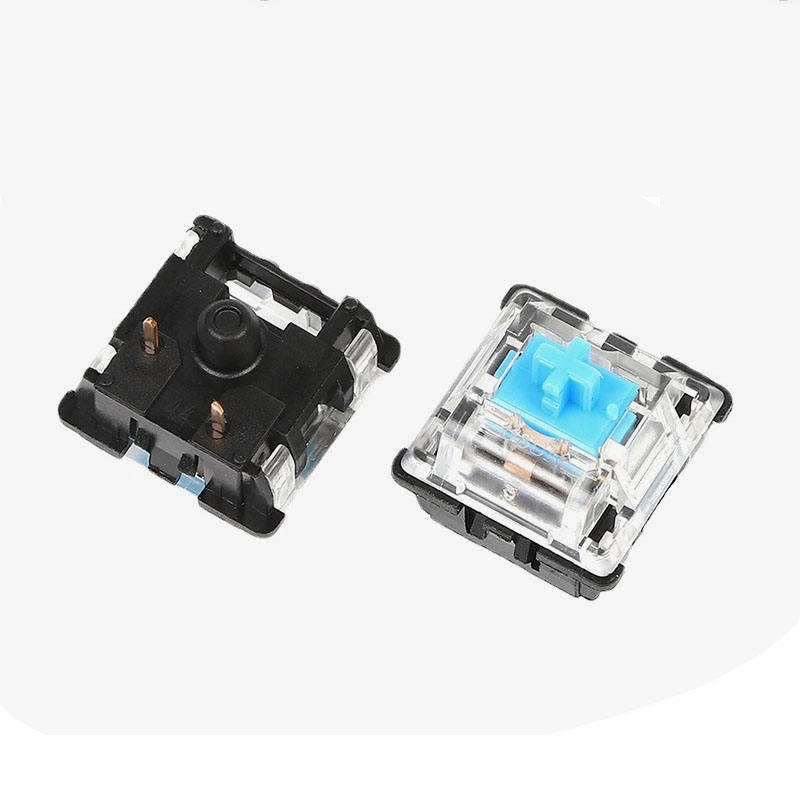

Mechanical switch: Each button has an independent mechanical structure, with good tactile feel, long lifespan, and usually supports RGB backlighting. Mechanical switches are also divided into linear switches and paragraph switches. Linear switches do not have a noticeable pause during the pressing process, while paragraph switches may have one or more noticeable pauses.

Capacitive switch: using the principle of capacitive induction to detect button actions, it has the advantages of fast response speed and strong anti-interference ability. Meanwhile, capacitive switches also support RGB backlight effects.

3、 Lighting Effects and Control

The lighting effect of Color RGB Keyboard Switch is one of its most attractive features. Users can control parameters such as light on/off, mode, and brightness through specific software or hotkey combinations. Common lighting effects include scrolling lights, breathing lights, explosion lights, etc., which can be customized according to user preferences.
