Through-Hole Right Angle Piano Dip Switch

Product Description

The DIL switch, also known as a DIP switch, is a compact, board-mounted mechanical switch designed for reliable hardware-level configuration and control. It allows users to manually set operating modes, addresses, or functional parameters through clearly defined DIP switch ON OFF positions, without relying on software or firmware interfaces.

Available in multiple designs such as right angle DIP switch, piano DIP switch, DIN switch, and DIP push button, this solution is ideal for applications where stable, visible, and vibration-resistant settings are required. Mounted directly onto a DIP switch board, each DIP switch ON OFF state remains fixed until manually changed, ensuring configuration integrity.

The piano-style actuator provides excellent tactile feedback and visual clarity, making the DIP switch control process intuitive even in industrial or enclosed environments.

Key Features

• Supports multiple formats: DIL switch, DIP switch, DIN switch

• Piano DIP switch design with clear ON/OFF indication

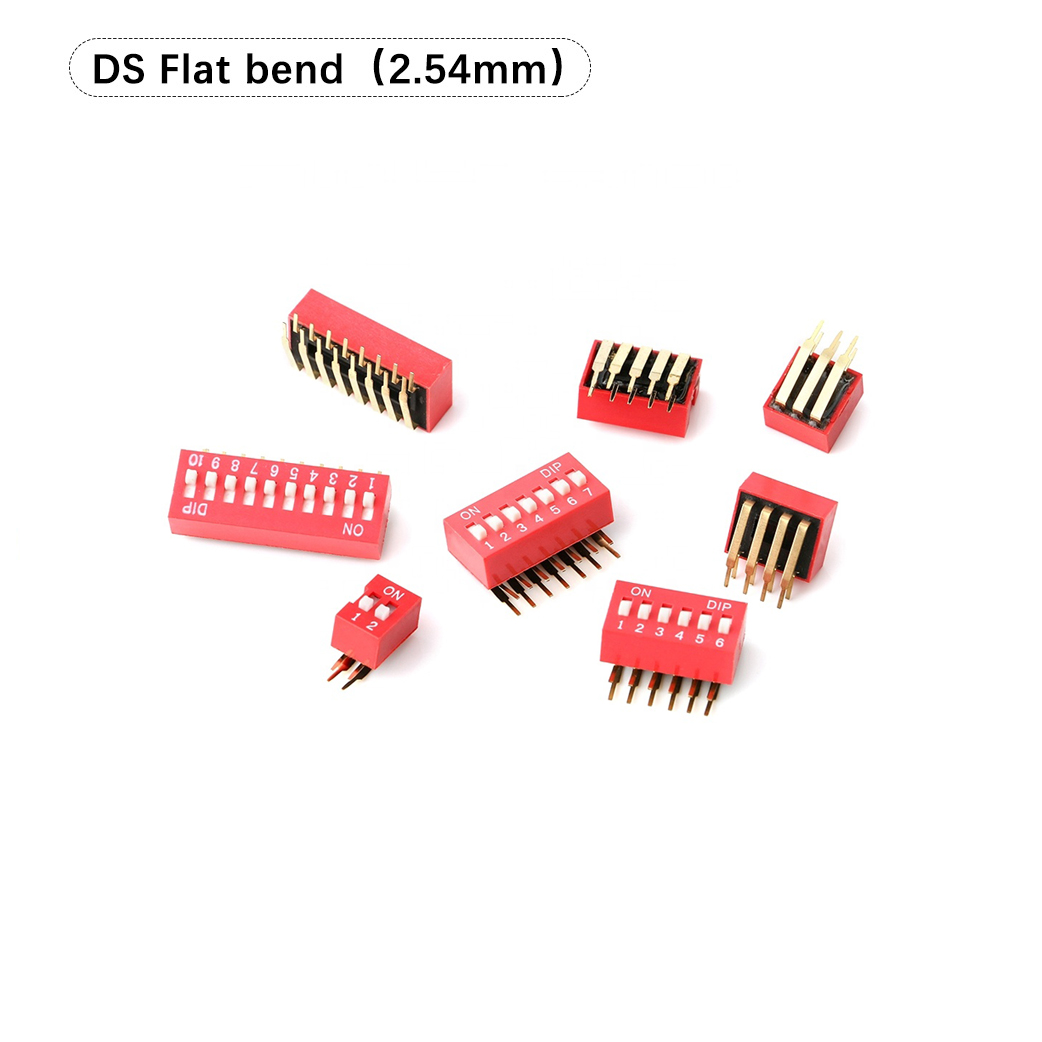

• Right angle DIP switch option for board-edge or side-access operation

• Stable mechanical latching for each DIP switch ON OFF position

• Optional DIP button and DIP push button styles

• Through-hole mounting for secure PCB attachment

• Compatible with standard DIP switch board layouts

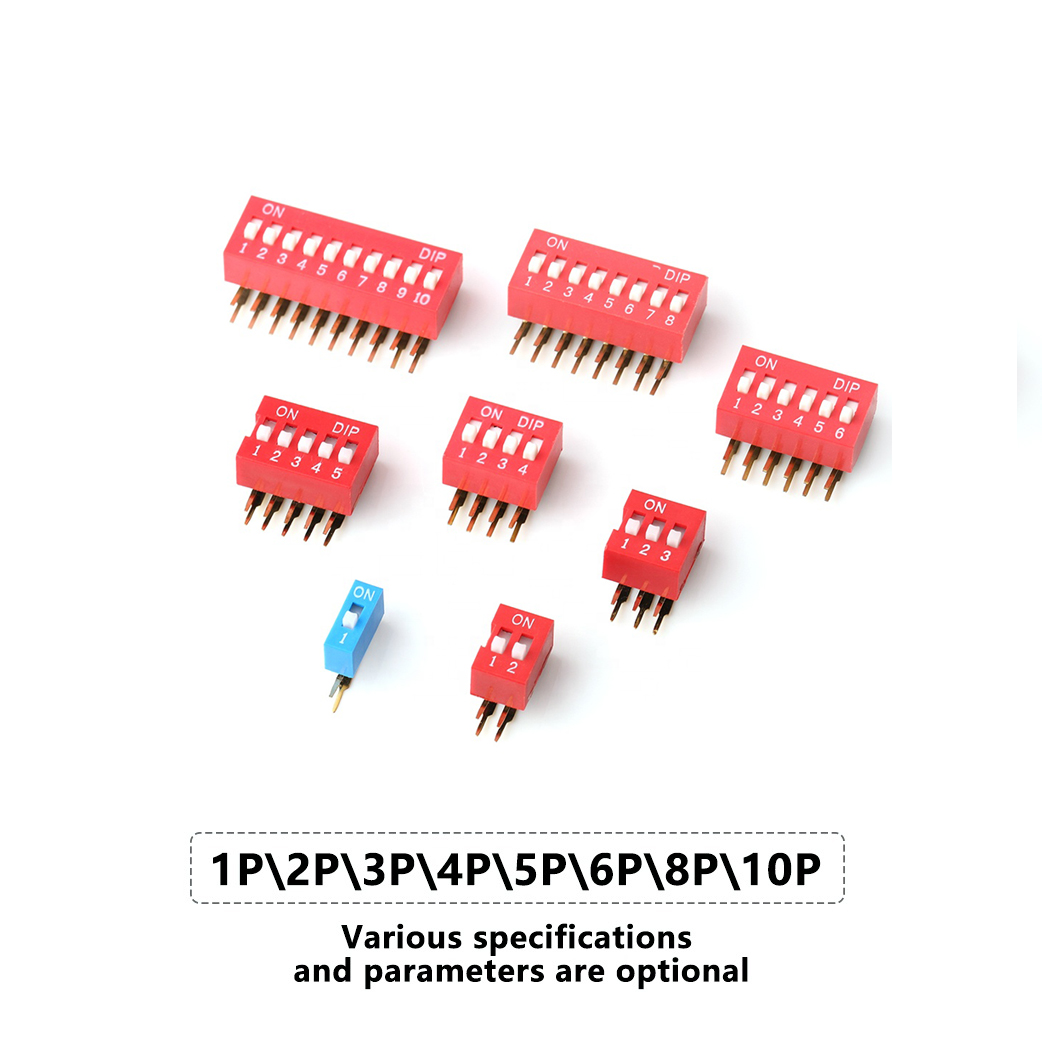

• Multiple pin counts available (e.g. 2–12 positions)

• Resistant to vibration and accidental switching

Product Advantages

Clear and Reliable DIP Switch Control

Each DIP switch ON OFF state is mechanically locked, providing dependable DIP switch control without the risk of signal drift, memory loss, or software corruption.

Easy Board-Edge Access

The right angle DIP switch allows operators to access settings from the side of the enclosure, similar to configurations used in industrial controllers and security panels.

Visual Configuration at a Glance

The piano DIP switch layout makes the DIP switch ON OFF position instantly recognizable, reducing setup errors during installation or maintenance.

Flexible Design Options

Whether using a standard DIL switch, a DIP push button, or a DIN switch, the product adapts easily to different electrical and mechanical requirements.

Long-Term Stability

Compared with momentary DIP button solutions, the latching DIP switch maintains configuration states reliably over long operating cycles.

Application Scenarios

Industrial Automation & PLC Systems

Used for address setting, operating mode selection, and system configuration on control boards, similar to PLC and automation modules.

Security & Alarm Systems

Commonly applied for zone configuration, communication settings, and system parameters using DIP switch ON OFF logic.

Communication & Networking Equipment

A DIL switch or DIN switch provides hardware-level addressing and protocol selection on shared buses.

Consumer & Embedded Electronics

Integrated on compact DIP switch boards for feature enable/disable functions in power supplies, controllers, and embedded systems.

Testing, Debugging & Maintenance

Technicians use DIP switch control to isolate circuits, enable diagnostics, or simulate operating conditions without firmware changes.

Product Operating Principle

• Side or Top Actuation
  In a right angle DIP switch, actuators are perpendicular to the PCB, allowing side access through enclosures or panels.

• Circuit Control Logic
  Each switch functions as an independent SPST circuit. Switching to DIP switch ON closes the circuit; DIP switch OFF opens it.

• Secure Latching Mechanism
  The internal structure locks each actuator firmly into its selected DIP switch ON OFF position, preventing accidental changes due to shock or vibration.

FAQ – Frequently Asked Questions

Q1: What is the difference between a DIL switch and a DIP switch?

A: In most applications, DIL switch and DIP switch refer to the same product type—a dual in-line package switch used for manual configuration.

Q2: What does DIP switch ON OFF mean?

A: DIP switch ON OFF indicates whether a specific circuit path is enabled (ON) or disabled (OFF). Each position represents a binary control input.

Q3: When should I choose a right angle DIP switch?

A: A right angle DIP switch is ideal when the DIP switch board is mounted in a tight enclosure and side access is required.

Q4: Is a DIP push button the same as a DIP switch?

A: No. A DIP push button or DIP button is usually momentary, while a DIP switch maintains a fixed ON or OFF state.

Q5: How many configurations can a DIP switch provide?

A: An 8-position DIP switch offers 256 possible configurations, making it suitable for complex addressing and control tasks.

Summary

The DIL switch / DIP switch is a proven, hardware-based configuration solution trusted across industrial, security, and electronic systems. With options including piano DIP switch, right angle DIP switch, DIP push button, and DIN switch, it delivers reliable DIP switch control, clear ON OFF positions, and long-term operational stability.

Industrial Automation: Used on I/O modules for PLC systems, such as the Siemens SIMATIC S7-300 series, to set the module's bus address.

Computer Hardware: Found on older motherboards like the ASUS P5B for manually configuring CPU settings like FSB (Front Side Bus) speed and multipliers.

Security Systems: Integrated into security system panels like the Honeywell VISTA-20P to configure zone types and partition assignments.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: What's the lead time of bulk order?
A: The lead time is normally 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.

Q2. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.

Q3. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q4:What is your PCB/ PCBA service?
A: Our PCB / PCBA service is about Medical industry, Automobile, Energy, Measurements, Consumer Electronics.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
