2-Port Right Angle Network Interface Socket with Indicators

ASUS TUF Gaming B550 RJ45 Socket's Product Introduction

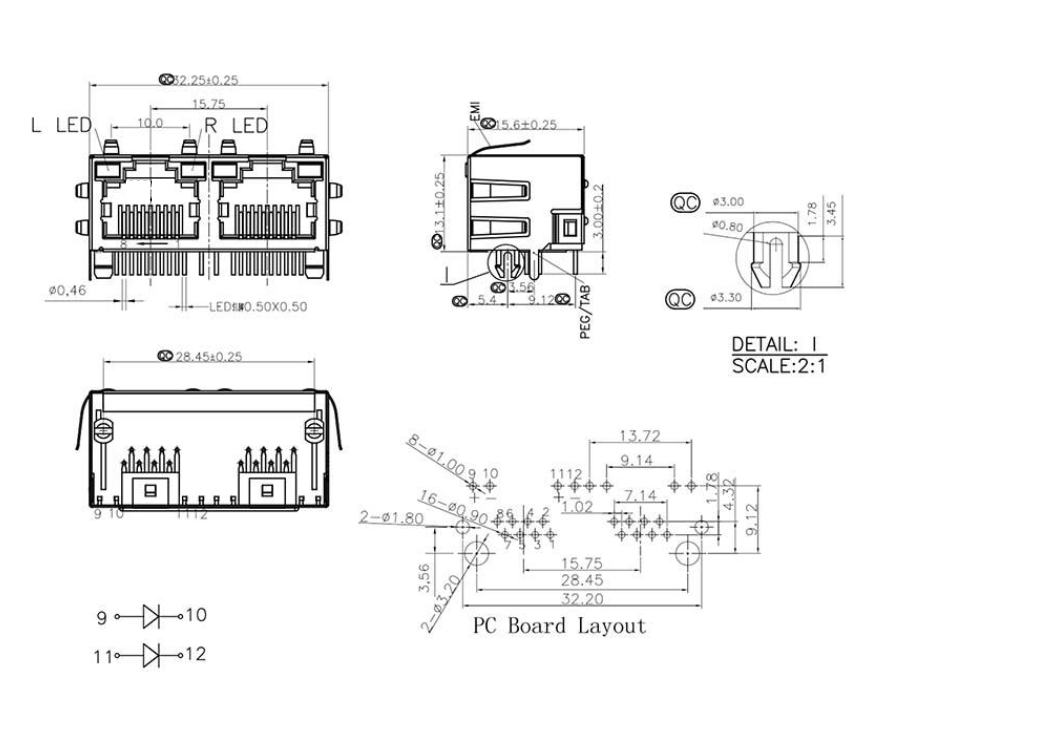

KKG Electronics presents the RJ45-9804 1X2, a professional-grade rj45 connector socket designed to double network connectivity in a compact footprint. This ganged module integrates two shielded ports into a single block, making it an efficient solution for high-density networking hardware. The robust metal shell effectively grounds the unit, protecting data integrity from electromagnetic interference. Ideally suited for any rj45 connector board layout, it features integrated LEDs to provide immediate visual diagnostics of link activity. The connector is engineered to firmly latch onto a standard rj45 head, ensuring a secure physical connection that resists vibration. While primarily a PCB component, its rigid metal chassis allows it to function reliably as a rj45 connector socket panel mount interface when aligned with enclosure cutouts. With gold-plated contacts and a durable structure, this component delivers the reliability needed for Gigabit Ethernet applications.

TP-Link MC220L RJ45 Socket's Product Operating Principle

Ganged Shielding Integration: The metal housing surrounds both jack cavities to create a unified Faraday cage that intercepts external electronic noise and drains it to the PCB ground plane preventing signal corruption.
Visual Status Signaling: Internal LED circuits embedded in the housing face connect to the logic board to illuminate indicating network speed or data transmission activity without separate light pipes.
Mechanical Port Alignment: The rigid molded block ensures that both ports remain perfectly aligned side-by-side simplifying the mechanical design of the device faceplate and reducing assembly tolerance issues.

Reolink RLN8-410 RJ45 Socket's Product Functions

Port Density Expansion: Instantly adds two fully shielded network interfaces to a device using a single component footprint reducing manufacturing time compared to placing two individual shielded jacks.
Signal Interference Protection: Protects sensitive differential data pairs from electromagnetic interference (EMI) and radio frequency interference (RFI) which is critical for maintaining high speeds in industrial environments.
Network Diagnostics: Provides users and technicians with immediate at-a-glance feedback on the connectivity status of each port facilitating faster troubleshooting of network issues.
Secure Physical Anchor: Utilizes multiple through-hole shield tabs to solder firmly into the circuit board providing exceptional shear strength to withstand the weight and tension of two attached network cables.

Industrial Switches: Integrated into the front panel of the Moxa EDS-205 Unmanaged Switch to provide shielded connectivity with activity status in harsh environments.

Media Converters: Used on the I/O board of the TP-Link MC220L to bridge fiber connections to dual copper Ethernet lines for local distribution.

Motherboards: Located on the rear panel of the ASUS TUF Gaming B550 to provide high-speed LAN connectivity with EMI protection.

Security NVRs: Integrated into the rear of the Reolink RLN8-410 to connect multiple IP cameras with reliable shielded data transmission.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
