1x2 Right Angle Network Interface Socket

Netgear GS105 RJ45 Socket's Product Introduction

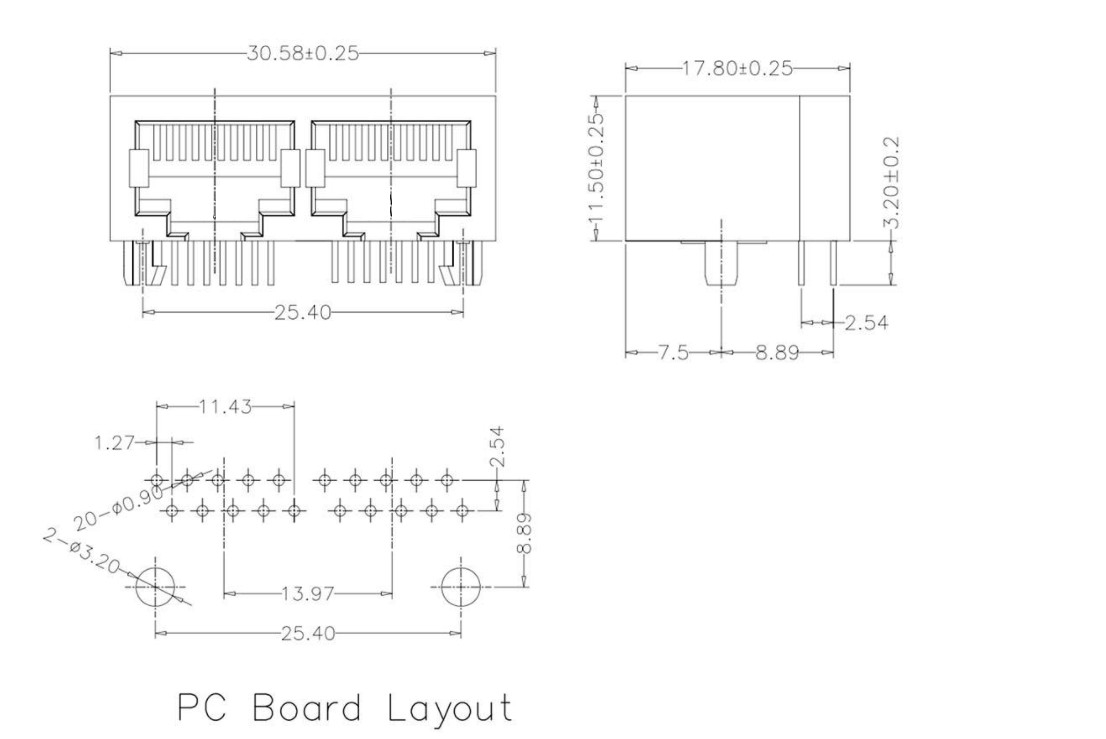

KKG Electronics presents the RJ45-5603 1X2, a high-efficiency rj45 connector socket designed to double network connectivity in a single component. This "1x2" ganged module integrates two standard Ethernet ports into a robust unshielded housing, streamlining the assembly process for multi-port devices. It is engineered to securely latch onto a standard rj45 head, ensuring a consistent and stable physical connection for data transfer. While primarily a PCB component, its rigid structure allows it to function effectively as a rj45 connector socket panel mount interface when aligned with device enclosure cutouts. Ideally suited for any high-density rj45 connector board, this component reduces placement time during manufacturing compared to installing two separate jacks. It supports standard Ethernet protocols, making it an essential component for consumer routers, VoIP phones, and office networking hubs requiring reliable local area network connections.

Arduino Ethernet Shield W5100 RJ45 Socket's Product Operating Principle

Ganged Port Integration: The thermoplastic housing molds two distinct jack cavities side-by-side allowing two independent Ethernet cables to connect to the PCB sharing a common structural alignment.
Spring Contact Engagement: Internal phosphor bronze contacts wipe against the plug blades upon insertion removing oxidation to establish a low-resistance electrical path for data transmission.
Mechanical Latching: Internal ridges within each port capture the locking tab of the Ethernet plugs securing them against accidental removal while maintaining constant contact pressure.

TP-Link Archer A7 RJ45 Socket's Product Functions

Port Expansion: Instantly adds two network interfaces to a device using a single component significantly reducing assembly time compared to soldering two individual jacks.
Signal Interface: Connects external LAN cabling to the device's internal magnetic modules or network controllers enabling simultaneous bidirectional data transfer for two devices.
Structural Rigidity: The multi-leg through-hole footprint anchors the connector firmly to the circuit board distributing the mechanical stress of heavy cables across a wider area.
Cost Efficiency: Reduces the total bill of materials and manufacturing complexity for multi-port devices like switches and routers by utilizing a unified housing design.

Wi-Fi Routers: Integrated into the LAN switch block of the TP-Link Archer A7 to provide wired internet access to multiple home devices.

Unmanaged Switches: Used on the circuit board of the Netgear GS105 to create a compact 5-port networking hub.

VoIP Phones: Located on the rear panel of the Cisco 7940 Unified IP Phone to provide a LAN port and a PC pass-through port.

Development Boards: Integrated into the shield of the Arduino Ethernet Shield W5100 to enable network communication for IoT projects.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1. How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.

Q2: How can we get the samples and best quotation?

A:We need to know more details about the products you inquired.

    For example, what are the functions you need? The specification of it and which finished products will be used with it?

    It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.

    We could provide the free samples to you.

Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.

Q4. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special
    requirement.
    For PCBA quotation, please provide Gerber data / files and BOM (bill of materials). If you need function test, please also provide
    the test instruction/ procedure.
