Single Axis Potentiometer
  • Single Axis Potentiometer

Single Axis Potentiometer

A Single Axis Potentiometer is a fundamental electromechanical component that functions as a variable resistor. It features a single rotational or linear shaft whose position determines the output voltage. By moving the wiper contact along a resistive track, it creates a voltage divider circuit. This provides an analog signal directly proportional to the physical position. Commonly used for precise measurement and control, these devices are essential in applications like joysticks, sensor calibration, and volume controls, translating mechanical movement into an electrical value.

  • Product Details
  • Product Features
  • Application Field

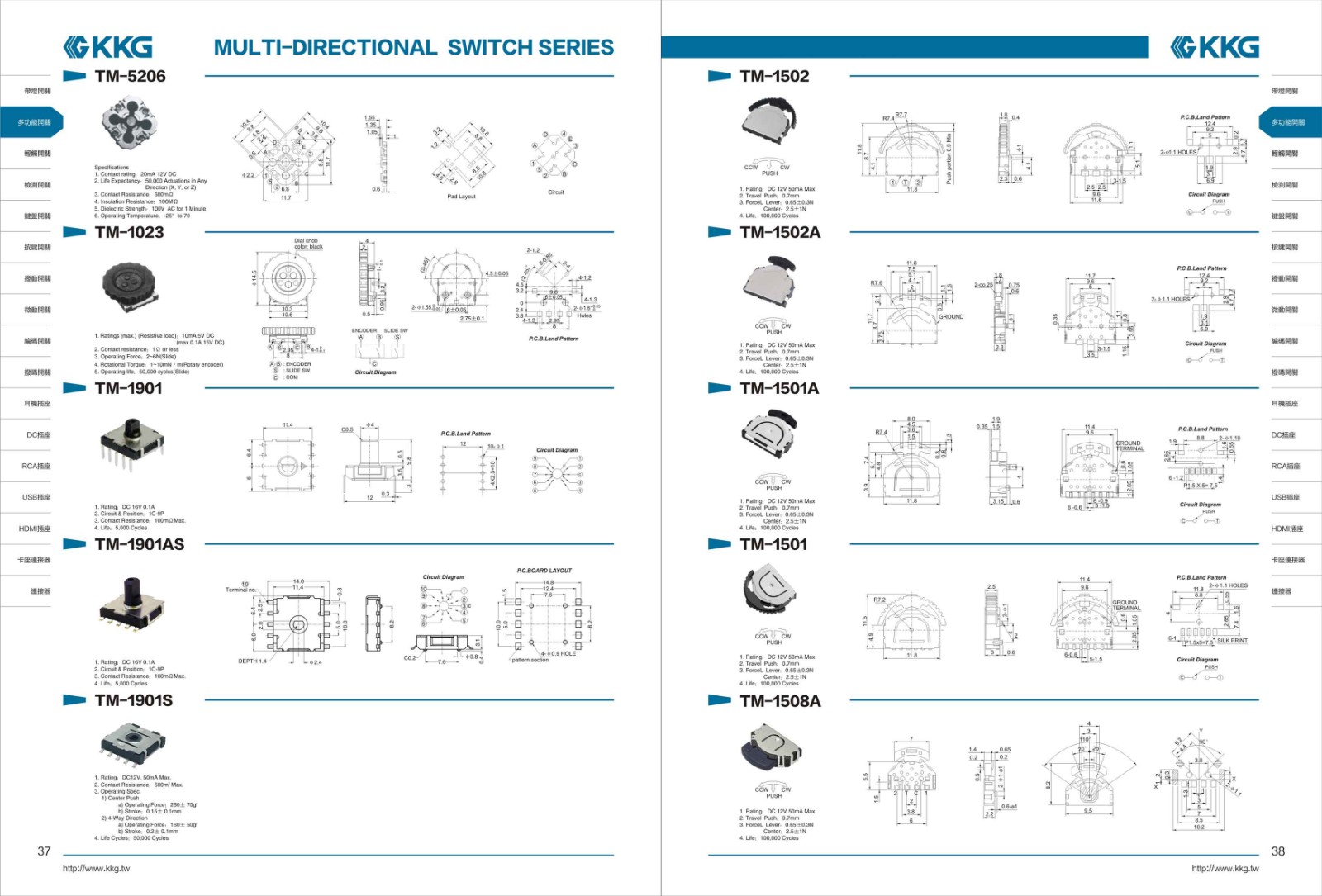

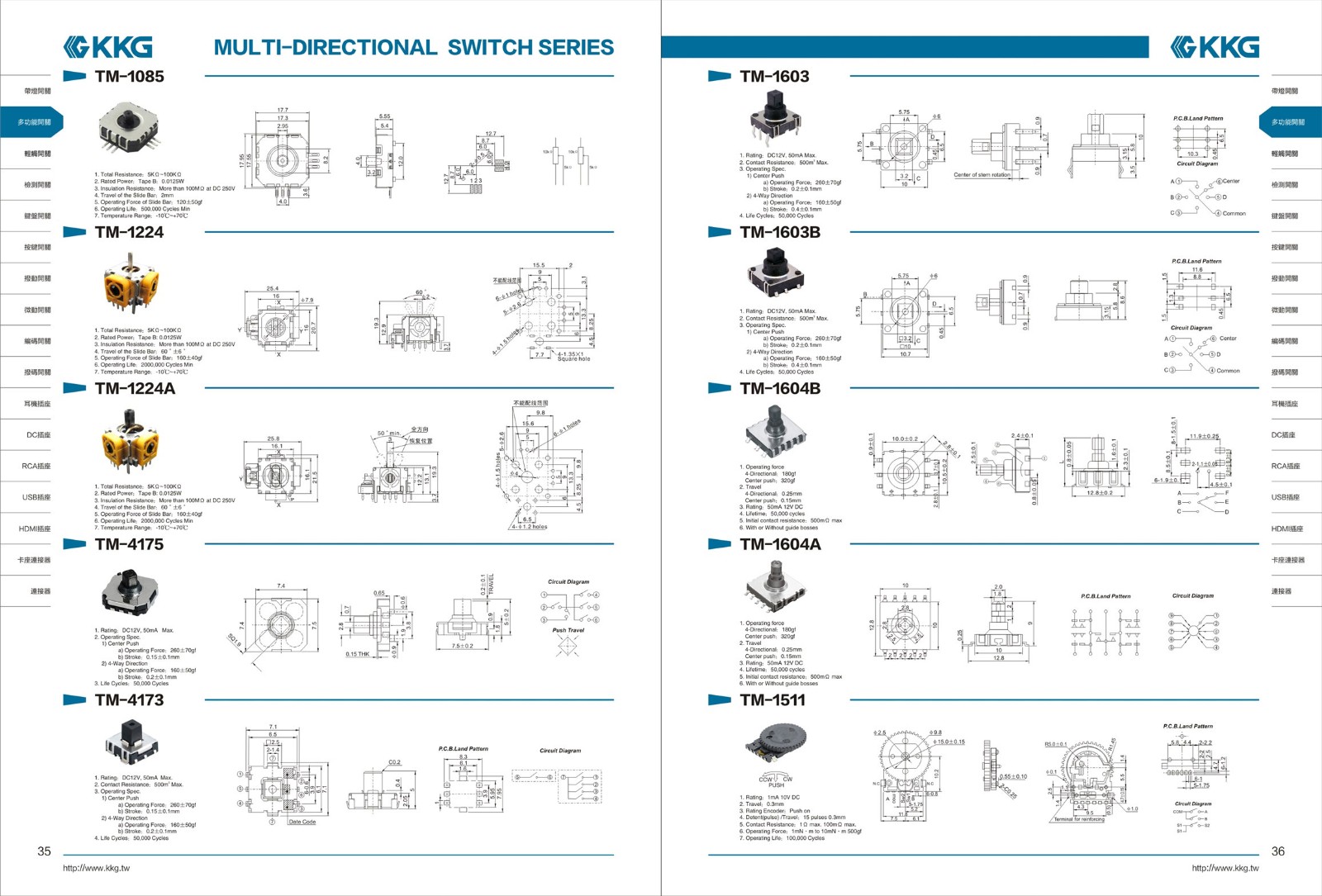

  • More Products
  • FAQ

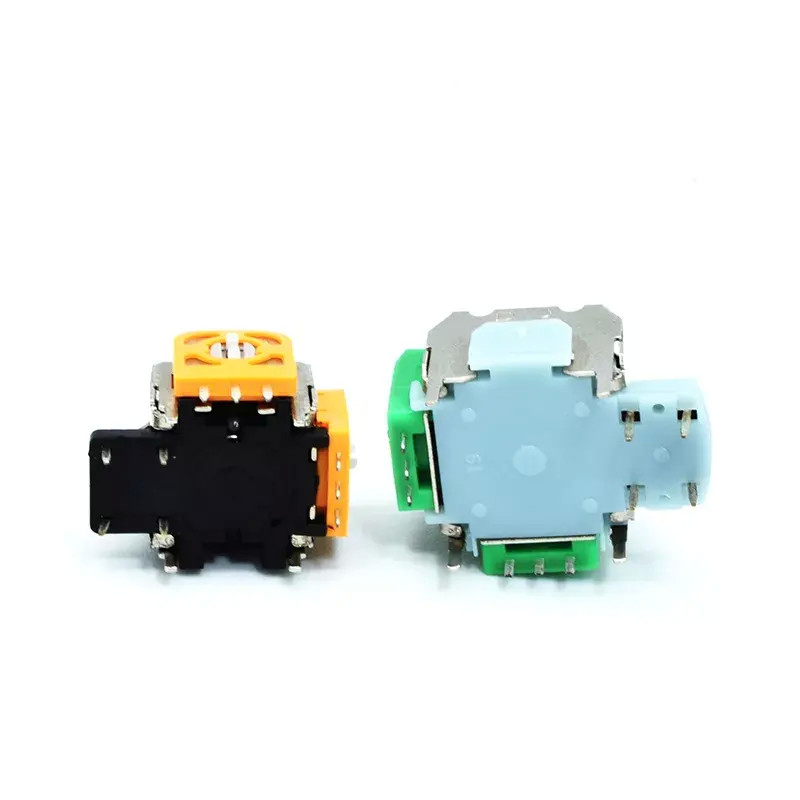

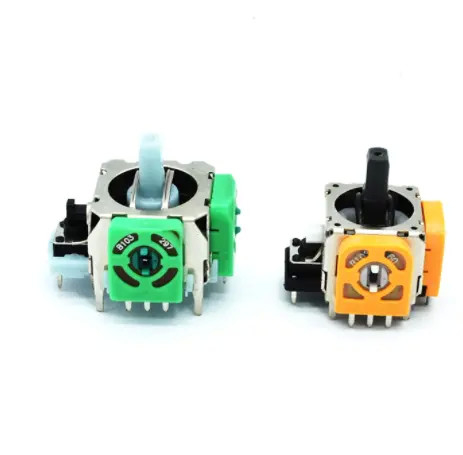

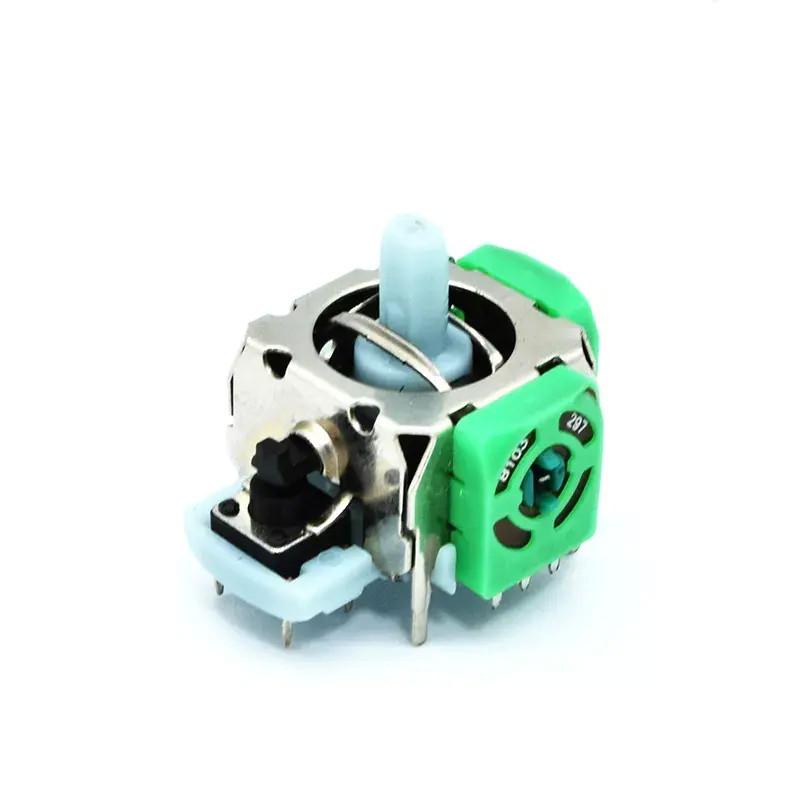

High Light: Joystick Potentiometer 360 Degree Rotation Joystick Potentiometer 3D MINI 0.0125W Rocker Potentiometer

Place Of Origin:Guangdong, ChinaModel Number:KKG- RJ16
D/C:NEWResistance:10KΩ-100KΩ
Rated Power:Taper B: 0.0125W, Taper B: 0.0125WOperating Temperature:-10℃-70℃
Power (Watts):0.0125WAdjustment Type:Top Finger Adjustment
Mounting Type:Top Adjustment; Top Finger AdjustmentBuilt In Switch:Rotary, SPST, Push-Pull, DPDT, With Detent
Rotation:55°±6°Termination Style:PC Pin
PC Pin:3.2mmNumber Of Turns:3MM
Certification:TUV RoHs ISOProduct Name:Rocker Potentiometer
Type:Rotary PotentiometerTechnology:Carbon Film
Resistance Tolerance:10%-20%Max. Operating Voltage:Taper B: 50V
Brand:Rotary Potentiometer PSP-SMTPackaging:STANDARD
Tolerance:±20%Diameter:16
Package / Case:PlasticTemperature Coefficient:0.05
Resistive Material:CarbonActuator Type:Slotted
Insulation Resistance:More Than 100MΩ At DC 250VService:OEM ODM


Joystick Potentiometers's Specification:

Electrical Specification
Total Resistane10KΩ~ 100kΩ
Total Resistance Tolerance±20%
Resistance TaperB, See P128
Max. Operation VoltageLiner Taper B:AC50V or DC5.0V
Rated Powerliner taper B:0.0125W
Sliding NoiseLess than 300mV (by JIS method)
Insulation resistancemore than 100MΩ at DC250V 1Minute
Withstand Voltage1 minute at AC 250V/2mV/50Hz
Operating Life100,000 cycles min
contact resistanceless than 300MΩ
insulation resistancemore than 100MΩ
withstand voltage1 minute at AC 250V (50-60HZ)
Travel0.25+0.2/0.1mm
Operating force480±150gf
Durability
Operating life500,000 cycles Min
Mechanical specification
Figure of lever operationCircular Operating
Stopper strength3.1 kgf.cm Min 3 sec
Push-Pull strengthPush/Pull 5.0 kgf Min 3 sec
Operation force300 gf.cm Max.
Accuracy of rest position±5°
Operating angle of lever55 ±6°
Tact Switch specification
Maximum Ratings12V DC 50mA
Operating Force820±260gf
Travel0.5+0.5 -0.4mm

Wide Resistance Range: 10KΩ to 100KΩ, suitable for various resistance requirements in gaming and joystick applications.

High Precision Adjustment: Resistance tolerance ±20% ensures stable and consistent performance of this game potentiometer.

Durable Carbon Film Technology: Provides wear resistance and long service life, ideal for joystick potentiometer use.

Rated Power: 0.0125W, perfect for low-power control circuits commonly found in game controllers.

Wide Operating Temperature: -10℃ to 70℃, reliable in diverse environmental conditions.

Multiple Built-in Switch Types: Includes rotary, SPST, push-pull, DPDT, and detent options, offering versatility for different joystick potentiometer designs.

Convenient Top Finger Adjustment: Allows easy tuning and installation for game potentiometer applications.

Moderate Rotation Angle: 55° ±6° with 3mm number of turns, delivering precise input control in joystick devices.

Standard PC Pin Termination: 3.2mm pins for secure and simple PCB soldering.

Certified Quality: Complies with TUV, RoHS, and ISO standards, ensuring safety and environmental compliance.

Joystick potentiometers for game controllers and arcade machines

Precision adjustment components in industrial and automation equipment

Rotary controls in audio and consumer electronics

Analog input devices in gaming peripherals

Position detection in medical instruments and control systems

Q1: What types of built-in switches does this joystick potentiometer support?

A1: This game potentiometer supports rotary, single-pole single-throw (SPST), push-pull, double-pole double-throw (DPDT), and detent switch types, meeting various application needs.


Q2: What is the adjustment method for this joystick potentiometer?

A2: It features convenient top finger adjustment for quick and easy tuning, ideal for game potentiometer installations.


Q3: What is the operating temperature range of this game potentiometer?

A3: It operates reliably within -10℃ to 70℃, suitable for a wide range of environments.


Q4: What is the resistance tolerance?

A4: The resistance tolerance is ±20%, providing stable input signals.


Q5: Does this joystick potentiometer meet environmental and safety certifications?

A5: Yes, it complies with TUV, RoHS, and ISO certification standards to ensure quality and environmental safety.
