Switch Series Product Collection KKG Developing with the Green Planet
FEATURE

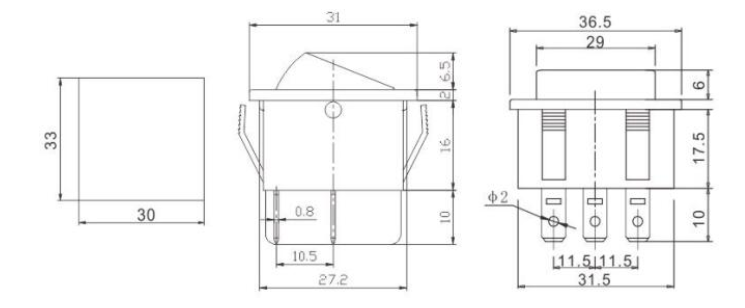

‧ 31.00mm*36.50mm
‧ 2 gears ‧ Double row of feet
APPLICATIONS
‧ Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains
The Multi-Position Rocker Power Switch is a reliable and versatile switching component designed for controlling power flow in various electrical devices. Featuring multiple stable positions, this switch provides enhanced user control and is ideal for use in household appliances, industrial equipment, and automotive systems. With a durable housing, high electrical endurance, and customizable terminals, it ensures safe and long-lasting performance in demanding environments.
The Multi-Position Rocker Power Switch is an advanced electromechanical component engineered for superior performance and reliability in demanding applications.
High Electrical Rating & Durability:
Engineered to handle substantial electrical loads, these switches typically support ratings up to 20A at 125VAC or 16A at 250VAC. Constructed with high-quality thermoset plastics and silver-alloy contacts, they ensure minimal contact resistance (< 20mΩ) and a long operational lifespan exceeding 100,000 cycles.
Multi-Position Functionality:
Available in 2 to 6 distinct positions, these switches provide precise circuit control. Common configurations include ON-OFF-ON and ON-OFF-(ON), enabling complex switching logic like dual-power source selection or multi-speed control in a single, compact unit.
Robust Environmental Sealing:
Many models feature an ingress protection rating of IP67, making them completely dust-tight and capable of withstanding temporary immersion in water up to 1 meter for 30 minutes. This ensures reliable operation in harsh industrial, automotive, or outdoor environments.
Enhanced Safety & Compliance:
Designed to meet international safety standards such as UL 61058 and IEC 60669, they incorporate reinforced insulation and high-arcing resistance. The wide rocker design allows for easy operation, even with gloves, and often includes a molded-in terminal numbering for fail-safe wiring.
Versatile Mounting & Customization:
Featuring a standardized panel cutout of 28.5mm x 19mm (for a standard single-pole unit), installation is simplified. Customization options are extensive, including various actuator colors, laser-etched legends (e.g., I/O, 1-2-3), and illumination via LED or neon indicators for low-light visibility.
| Characteristics | Specification |
| Current | 20A 125VAC/15A 250VAC |
| Contact Resistance | 35MAX |
| Operating temperature | -25℃+85℃ |
| Insulation resistance | 500VDC 100MAX min |
| Withstand voltage | 1500VAC 1min |
| Electrical life | 10,000cycles |
Household Appliances
Used in electric fans, heaters, water dispensers, and kitchen equipment for reliable power control.
Industrial Equipment
Ideal for control panels, motor switches, and automation machinery requiring multi-step operation.
Automotive Systems
Applies to dashboards, auxiliary lighting, and custom modifications in vehicles and boats.
Power Strips and Extension Units
Enables individual control of sockets or devices with clear on/off positions.
Medical Devices
Used in diagnostic or treatment equipment where precise and secure switching is essential.
Consumer Electronics
Commonly found in audio equipment, amplifiers, and gaming systems for user interface control.
Q: What is a multi-position rocker switch used for?
A: It is used to control different power states or functions in a device. With 2 or 3 positions, it allows for ON/OFF, ON/OFF/ON, or custom configurations depending on the application.
Q: Can this switch be used for both AC and DC applications?
A: Yes, many models support both AC and DC circuits. Please check the voltage and current ratings in the technical specifications before use.
Q: Is the switch panel-mountable?
A: Yes, the switch is typically designed for easy panel mounting, either via snap-in or screw-mount installation.
Q: Are there options with LED indicators?
A: Yes, some versions come with built-in LED lights to indicate the switch position or power status.
Q: Can I request custom terminal types or functions?
A: Absolutely. We offer customization for terminals, actuator shapes, switch positions, and even printing/logo upon request.
Q: Is the switch RoHS or UL certified?
A: Most of our rocker switch models are RoHS compliant and can be UL certified depending on your regional and project requirements.
