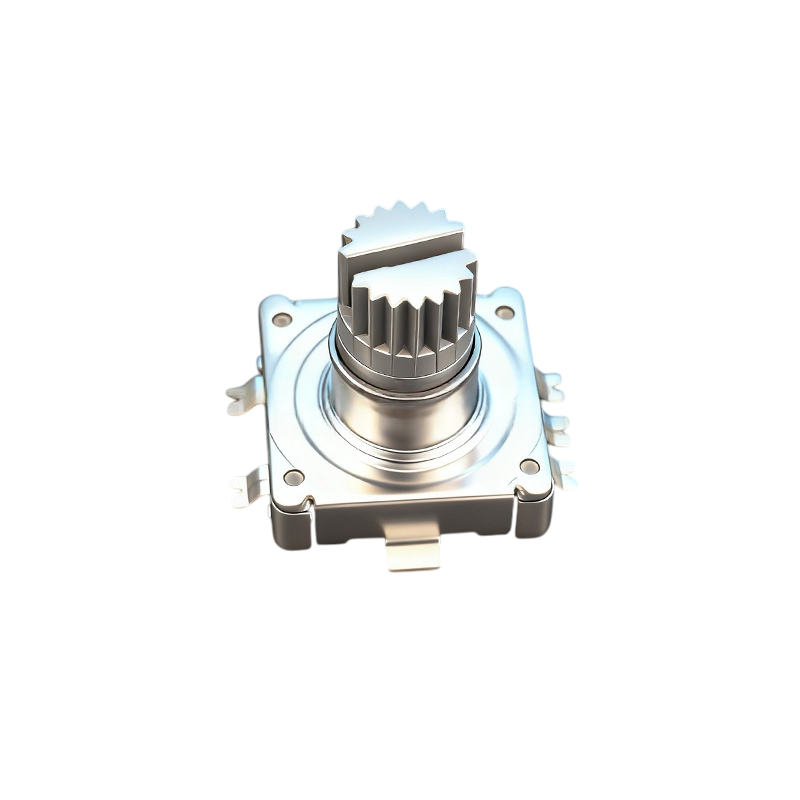

Rotary Encoder for Mechanical Keyboards

The KKG EC11-15244B2 rotary encoder switch is a high-precision,incremental rotary encoder for mechanical keyboards,designed to deliver both reliable tactile feedback and versatile digital control.Engineered by a leading encoder switch manufacturer,this component is ideal for applications requiring precise input,from custom keyboards and audio equipment to industrial control interfaces.

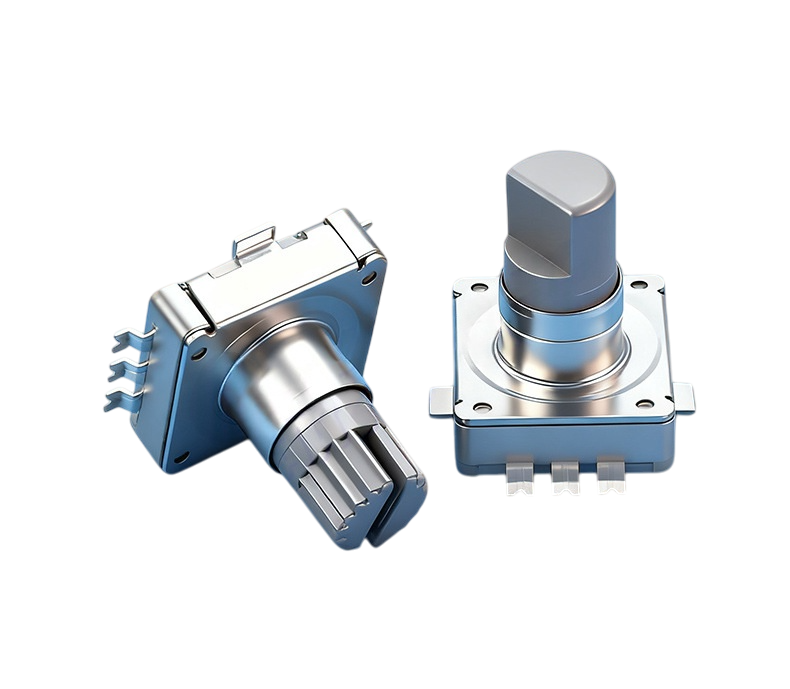

Featuring a robust metal shaft,this keyboard rotary encoder provides a satisfying tactile response corresponding to 15 pulses per full rotation.This allows users to adjust volume,scroll through menus,or fine-tune settings with precision.The integrated push-button switch adds a separate momentary input,enabling functions such as selection,muting,or confirmation without needing additional hardware.

Key Features

Incremental Digital Control:Converts rotational motion into digital signals,allowing microcontrollers to accurately track rotation direction and speed.

Tactile Feedback:15 detent pulses per 360-degree rotation ensure each step is distinct,providing a premium user experience.

Push-Button Integration:Momentary switch functionality allows users to select,confirm,or trigger actions alongside rotational input.

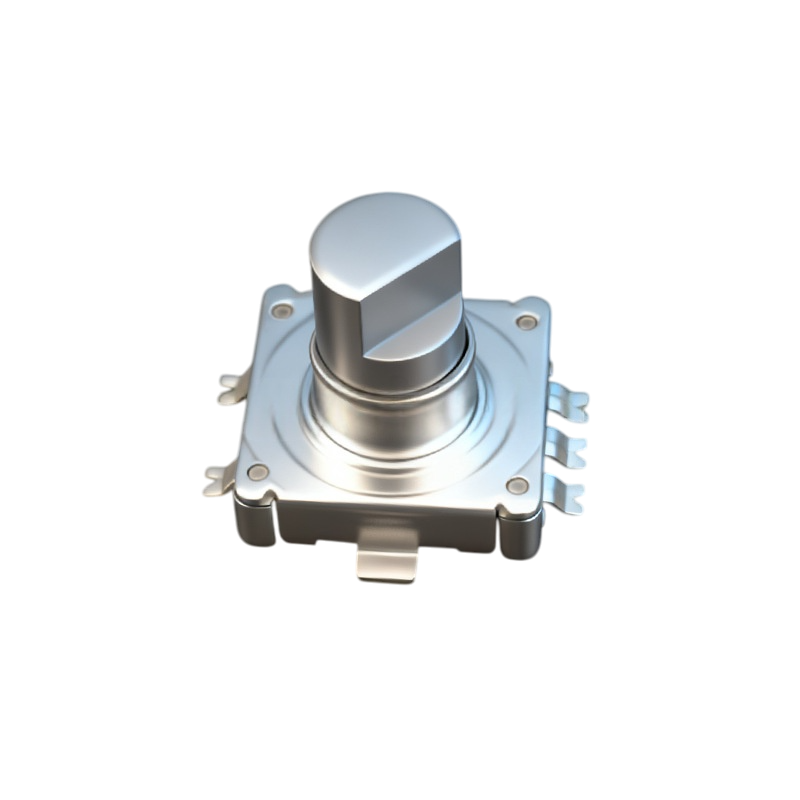

Durable Metal Shaft:Ensures a long operational lifespan and a professional,high-quality feel.

Reliable Electrical Performance:Withstands 300V AC for one minute,with insulation resistance≥100MΩand contact resistance≤100mΩ.

Wide Operating Temperature:Functional from-25℃to+80℃for versatile environmental applications.

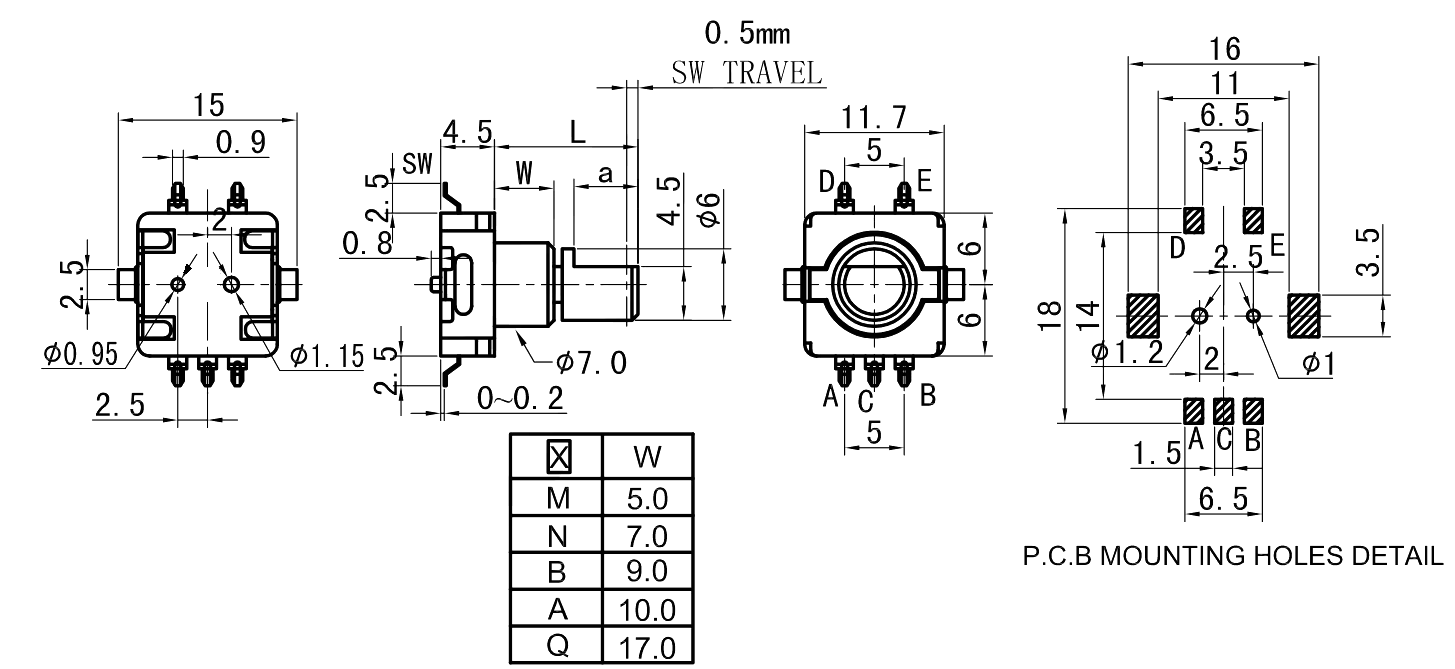

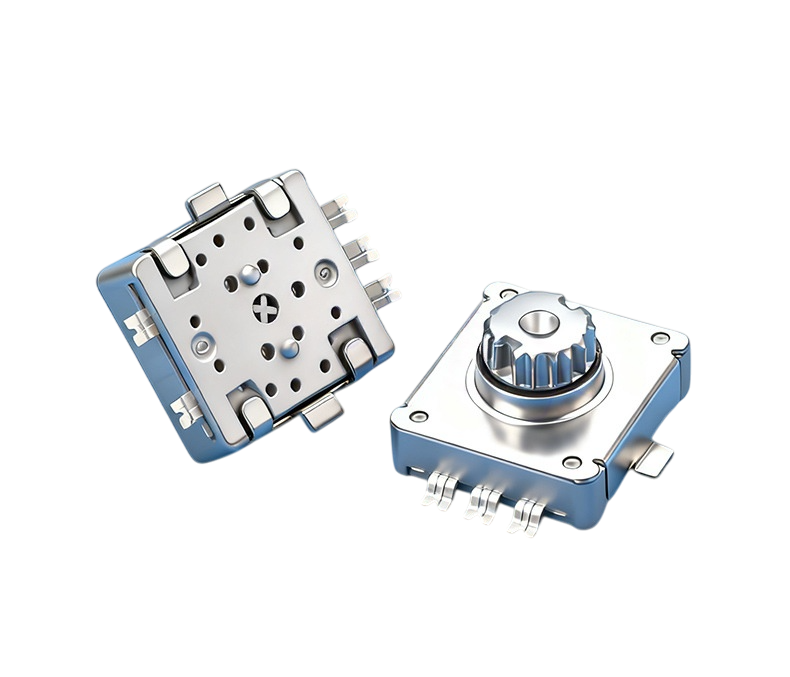

Secure PCB Mounting:Through-hole design guarantees stable electrical and mechanical connections.

Advantages

Precision Input:Incremental pulses and tactile detents provide accurate control over settings and adjustments.

Dual-Functionality:Combines rotation and push-button input in a compact form factor,saving space on keyboards or control panels.

Durable and Reliable:High-quality materials and robust design ensure long-term performance.

Easy Firmware Integration:Compatible with microcontrollers and custom keyboard firmware for digital control projects.

Versatile Usage:Works seamlessly in both consumer and professional electronic devices.

Applications

Mechanical Keyboards:Adjust volume,scroll through menus,or switch modes with one integrated control.

Professional Audio Equipment:Fine-tune audio settings,mix levels,or apply effects with precise rotational input.

Custom Electronics Projects:Ideal for hobbyist and DIY keyboard or controller builds.

Industrial Control Panels:Reliable digital input for monitoring and adjusting machinery or equipment.

Embedded Systems:Compatible with firmware-controlled devices requiring tactile rotary input and push-button functionality

Custom Keyboards: Used as the multi-function knob on a custom mechanical keyboard with rotary encoder, such as the Keychron Q1 or GMMK Pro, for volume, media, or macro control.

Audio & Music Equipment: Serves as the primary menu navigation and parameter selection control on synthesizers like the Arturia MicroFreak.

Industrial & Lab Controls: Integrated into test equipment for precise setting adjustments, such as on the Rigol DP832 Programmable DC Power Supply.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1:How does the EC11-15244B2 rotary encoder work?

A1:It operates on an incremental principle,converting the shaft rotation into digital pulses that a microcontroller can read to determine rotation direction and speed.

Q2:What is the purpose of the push-button function?

A2:The integrated momentary push-button provides an independent input,commonly used for selection,muting,or mode switching alongside rotational control.

Q3:How precise is the tactile feedback?

A3:The encoder provides 15 detent pulses per 360-degree rotation,giving distinct tactile steps for precise adjustments.

Q4:What is the operating temperature range?

A4:The device is functional from-25℃to+80℃,suitable for a wide range of environmental conditions.

Q5:Is this encoder easy to integrate into a custom keyboard or controller?

A5:Yes.With through-hole PCB mounting and standard pulse output signals,it can be directly integrated into firmware-controlled devices or custom mechanical keyboards.
