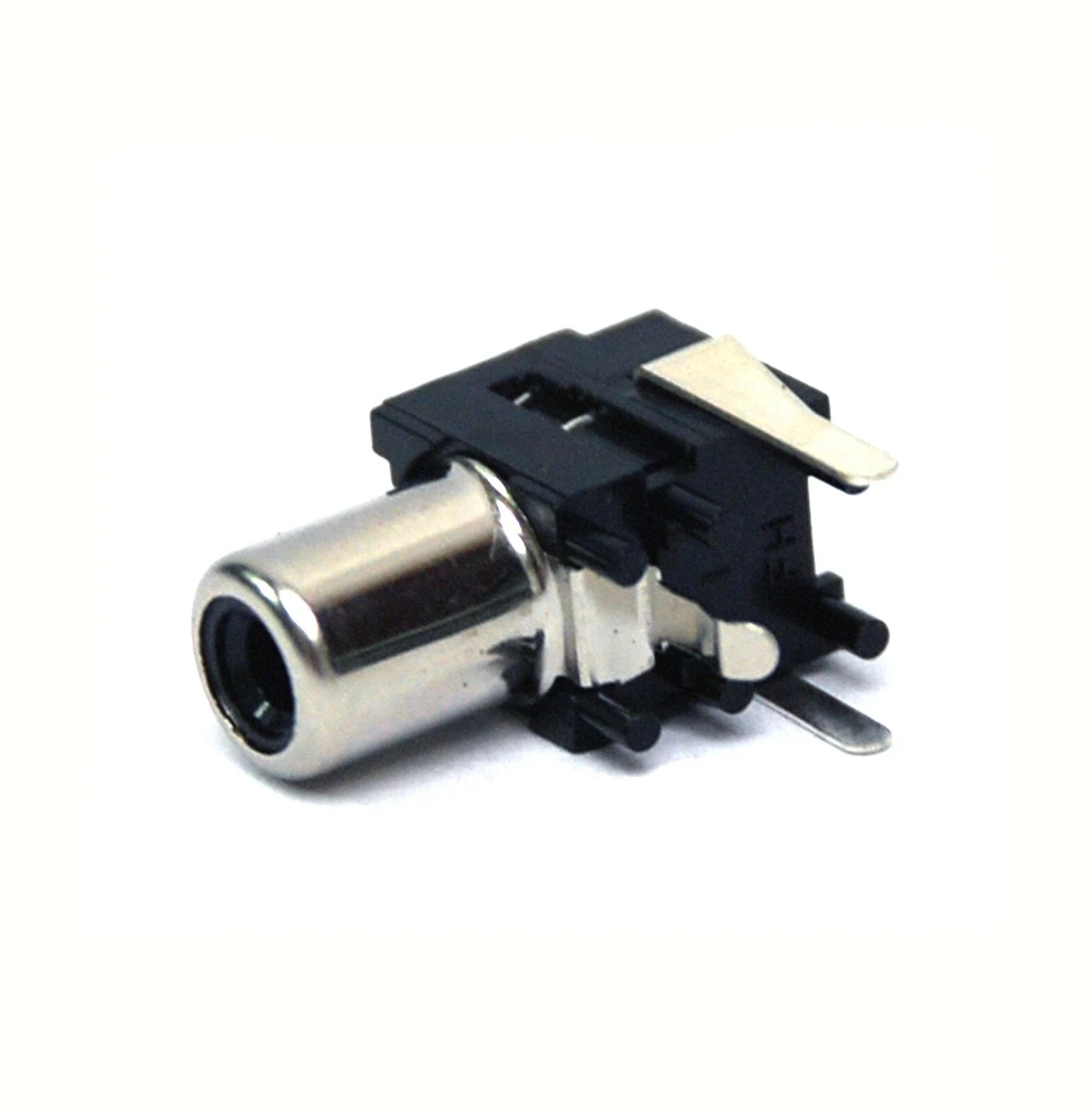

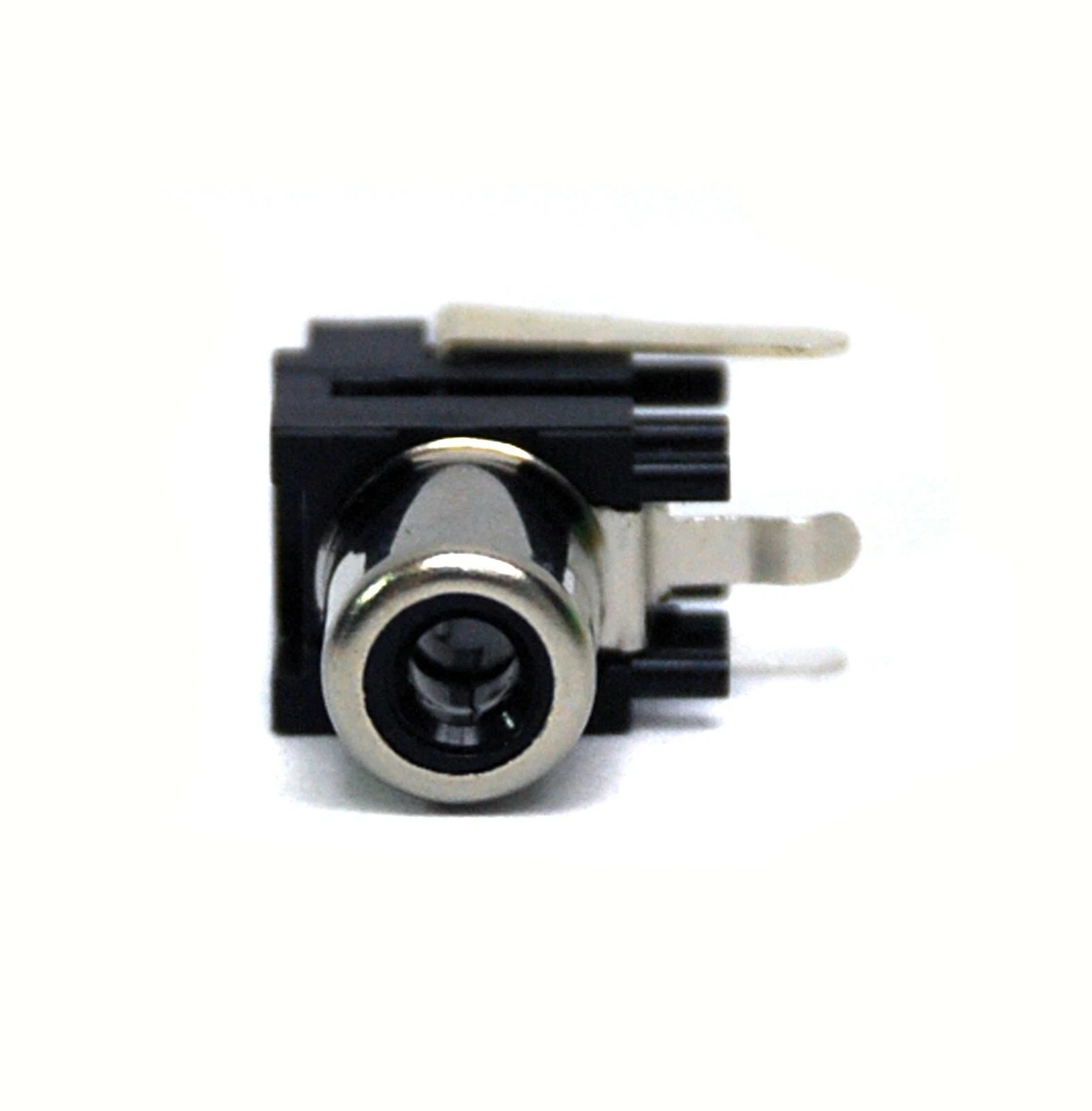

KKG RCA-K366G: Right Angle Single Port RCA Jack

Marantz SR series RCA Audio Socket's Product Introduction

The KKG RCA-K366G is a versatile and durable single-port connector, expertly engineered for applications requiring a single, reliable AV connection. As a leading product from a trusted rca socket factory, this component provides maximum layout flexibility, allowing designers to place individual connection points precisely where needed on a PCB. This female rca jack is built for a secure through-hole mounting, creating a powerful mechanical bond that ensures long-term stability and performance, even with frequent use.

The right-angle design is a critical feature for creating modern, compact electronics, as it allows cables to connect parallel to the board, saving valuable internal space. The distinctive green color-coding is traditionally used for the luminance (Y) signal in component video setups or for center channel audio, making this rca socket an ideal choice for high-fidelity AV equipment. Built with quality materials for excellent signal integrity, the RCA-K366G is the definitive choice for any application requiring a high-performance, single-channel RCA connection.

Oppo BDP-103 Audio Socket's Product Operating Principle

Secure PCB Integration: The through-hole pins are designed to be soldered directly to the circuit board, creating a strong electromechanical bond that ensures durability and a clean signal path.
Signal Path Creation: When a male RCA plug is inserted, the internal contacts securely grip the plug's center pin and outer shield, completing a reliable, single-channel path for an audio or video signal.
Space-Saving Orientation: The right-angle body allows the connector to have a low profile on the PCB, saving vertical space within an enclosure and enabling slimmer product designs.

Dish Network Wally RCA Audio Socket's Product Functions

Standardized Single Interface: Provides a universal, single-channel connection point compatible with any standard male RCA cable.
Custom Layout Flexibility: The single-port design allows for custom placement and grouping on a PCB, perfect for creating bespoke I/O panels for audio and video.
Durable Board Mounting: The through-hole mounting style ensures a robust and reliable physical connection to the circuit board that withstands physical stress.
Signal-Specific Use: The green color-coding makes it ideal for specific signals like component video (Y) or center-channel audio, preventing connection errors.

Component Video Output: Used as the dedicated luminance (Y) signal jack on high-end DVD players and video processors, such as the Oppo BDP-103, alongside separate red (Pr) and blue (Pb) jacks.

Center Channel Pre-Out: Serves as the pre-amplifier output for the center channel speaker on AV receivers like the Marantz SR series, for connecting to an external power amplifier.

Professional Video Equipment: Integrated into video distribution amplifiers and switchers as a single BNC-style alternative for composite video signals in professional settings.
