Standard Profile Raised Slide Switch

Crestron MC3 DIP Switch's Product Introduction

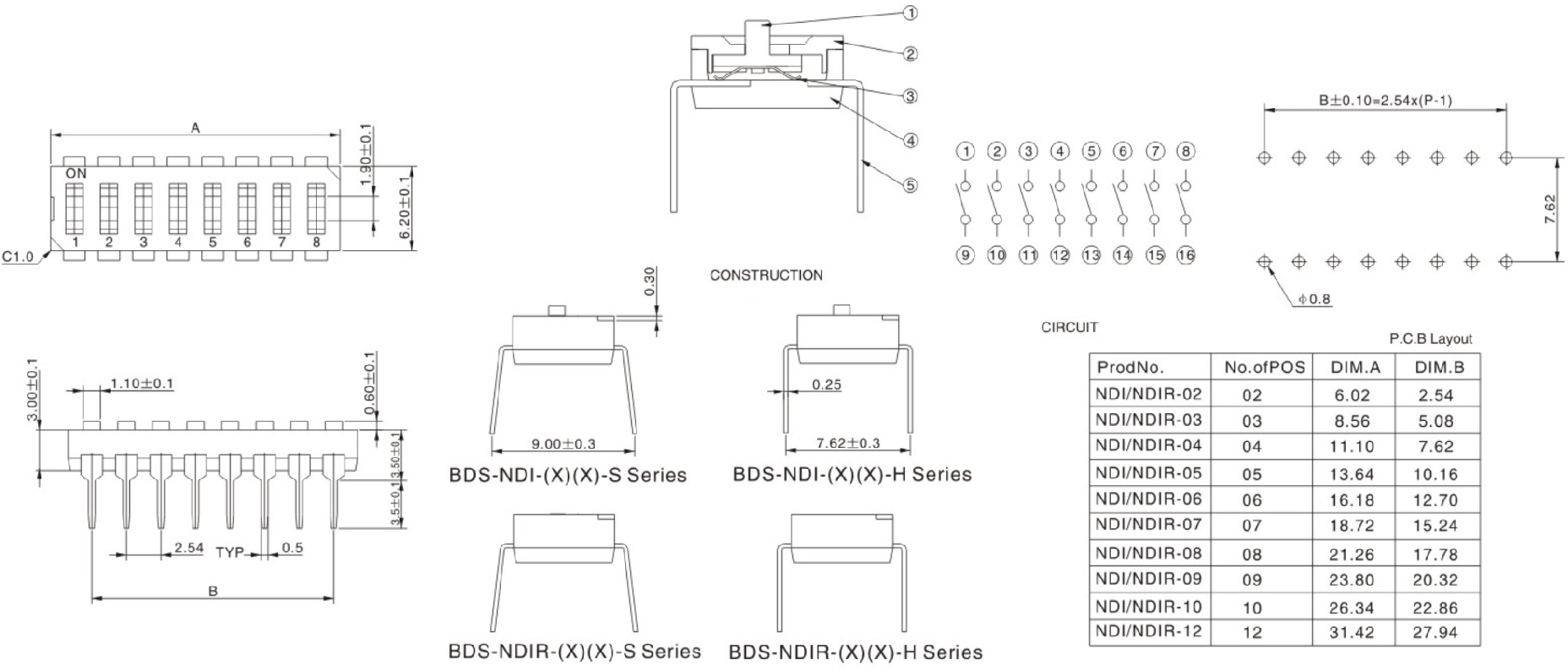

KKG Electronics presents the DIP-NDI, a versatile electronic dip switch designed for precise hardware configuration. This model features a classic raised slide actuator mechanism, providing clear visibility and tactile feedback for operator adjustments. While compact enough to be classified as a micro dip switch, it adheres to the standard 0.100" (2.54mm) pitch, ensuring compatibility with standard sockets and breadboards. Physically configured as a dip switch 16 pin module (dual rows for 8 positions), it allows for 256 unique binary code combinations. Its gold-plated internal contacts ensure stable signal transmission, making it a dependable component for industrial and consumer electronics requiring long-term settings retention.

ResMed AirSense 10 DIP Switch's Product Operating Principle

Slide Actuation: The raised plastic lever slides horizontally to move an internal metal wiper, bridging the terminals to complete the circuit.
Binary Logic: Each of the 8 poles functions as an independent SPST circuit, allowing users to generate binary codes (1/0) by toggling the actuators.
Mechanical Detent: A precise internal spring mechanism ensures the slider locks firmly into the ON or OFF position, preventing accidental shifting.

Yaskawa V1000 DIP Switch's Product Functions

Hardware Addressing: Sets unique node IDs for devices connected to a network bus, such as RS485 or CAN systems, to prevent data collisions.
Mode Selection: Manually configures operational states, such as baud rates, protocol selection, or impedance matching on the PCB.
Signal Isolation: Acts as a physical disconnect switch to isolate specific circuit sections during testing, maintenance, or debugging.
Non-Volatile Setup: Retains configuration data mechanically without the need for power or battery backup, ensuring settings survive power cycles.

Industrial Automation: Used in the I/O configuration terminals of the Yaskawa V1000 AC Drive to set the communication baud rate and station address.

Medical Electronics: Integrated into the control board of the ResMed AirSense 10 CPAP machine to configure region-specific pressure defaults during assembly.

Home Security: Located on the main controller PCB of the Crestron MC3 Control System to manually set the RF channel frequency for wireless device pairing.
