SMD Gull Wing Slide Component DIP-DM
Product Brief Description
The DIP-DM Series is a precision SMT dip switch featuring standard 2.54mm pitch gull-wing leads. It offers a contact rating of 25mA at 24VDC, gold-plated contacts for low resistance, and heat-resistant materials suitable for reflow soldering. Designed for automated assembly, it ensures reliable logic configuration in compact surface-mount designs.
ODM/OEM Service
Source Factory
Stable Daily Output
High Quality
Multiple Payment Methods
Pre/After Service
Product Details
| Characteristics | Specification |
|---|
Rating (Switching)
| 25mA 24V DC |
|---|
| Rating (Non-Switching) | 100mA 50V DC |
|---|
| Pin Pitch | 2.54mm |
|---|
| Insulation Resistance | 100MΩ (min.) |
|---|
| Contact Resistance | 50mΩ (max.) |
|---|
| Dielectric Strength | 500V AC for 1 minute |
|---|
| Operating Temperature | -20℃ to +70℃ |
|---|
| Life Span | 2,000 Cycles Min
|
|---|
Philips IntelliVue X3 DIP Switch's Product Introduction
KKG Electronics presents the DIP-DM Series, a high-performance dip switch smd solution designed for modern automated manufacturing. Featuring gull-wing terminals, this component allows for seamless reflow soldering on surface-mount PCBs. While maintaining the standard 2.54mm pitch for compatibility, its compact profile qualifies it as a versatile mini dip switch for high-density boards. When selected in the 8-position configuration, it functions as a robust dip switch 16 pin module, providing 256 unique binary codes. The series offers reliable slide actuation with crisp tactile feedback, making it an essential dip switch choice for industrial controls and consumer electronics requiring durable hardware setting interfaces.
Fibaro FGS-223 DIP Switch's Product Operating Principle
Slide Actuation: The raised or recessed actuator slides horizontally to shift the internal wiper, bridging the gold-plated contacts to toggle the circuit state.
SMT Interface: Gull-wing leads are soldered directly to the PCB surface pads, allowing the switch to bridge logic traces without drilling holes.
Contact Logic: Each pole operates as an independent SPST circuit, enabling users to generate precise binary codes by positioning the sliders.
Omron CP1E DIP Switch's Product Functions
Hardware Addressing: Manually sets unique binary IDs for modules on a communication bus, ensuring devices like wireless transmitters are correctly identified.
Mode Configuration: Selects operational parameters such as baud rates, boot modes, or regional settings directly on the hardware level.
Circuit Isolation: Acts as a physical maintenance switch to disconnect specific circuit blocks or enable test modes during diagnostics.
Settings Retention: Mechanically stores configuration data indefinitely without the need for standby power or battery backup.

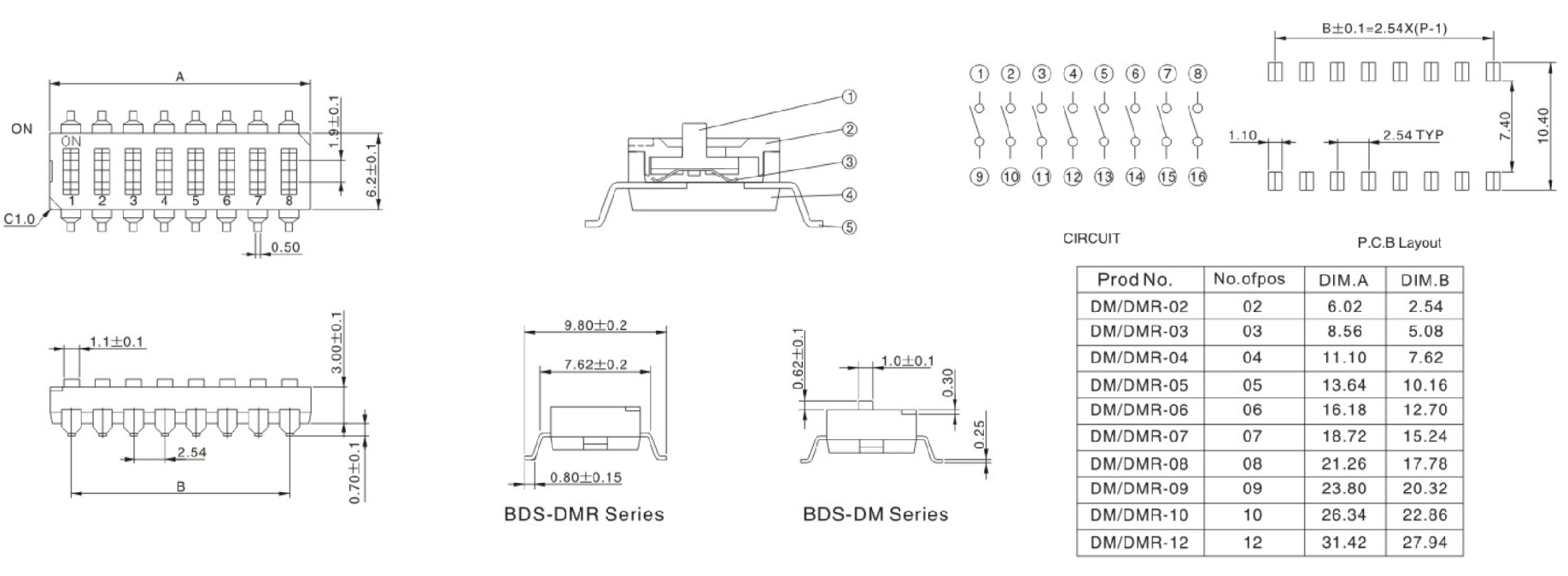

Dimension
Products Applications
Industrial Automation: Integrated into the main control unit of the Omron CP1E PLC to configure input response times and communication ports.
Medical Electronics: Used in portable patient monitors like the Philips IntelliVue X3 to set default alarm parameters and wireless network channels.
Smart Home: Located on the Z-Wave control module of the Fibaro FGS-223 Relay Switch to manually include or exclude the device from the network.
Temperature Profile
KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.
The product's appearance does not change when tested at 260°C for 5 minutes!
Packaging Efficiency
We ensure high production efficiency and ship your order within 7 days after payment.
