High Density Surface Mount Slide Switch Series

Espressif ESP32-WROOM DIP Switch's Product Introduction

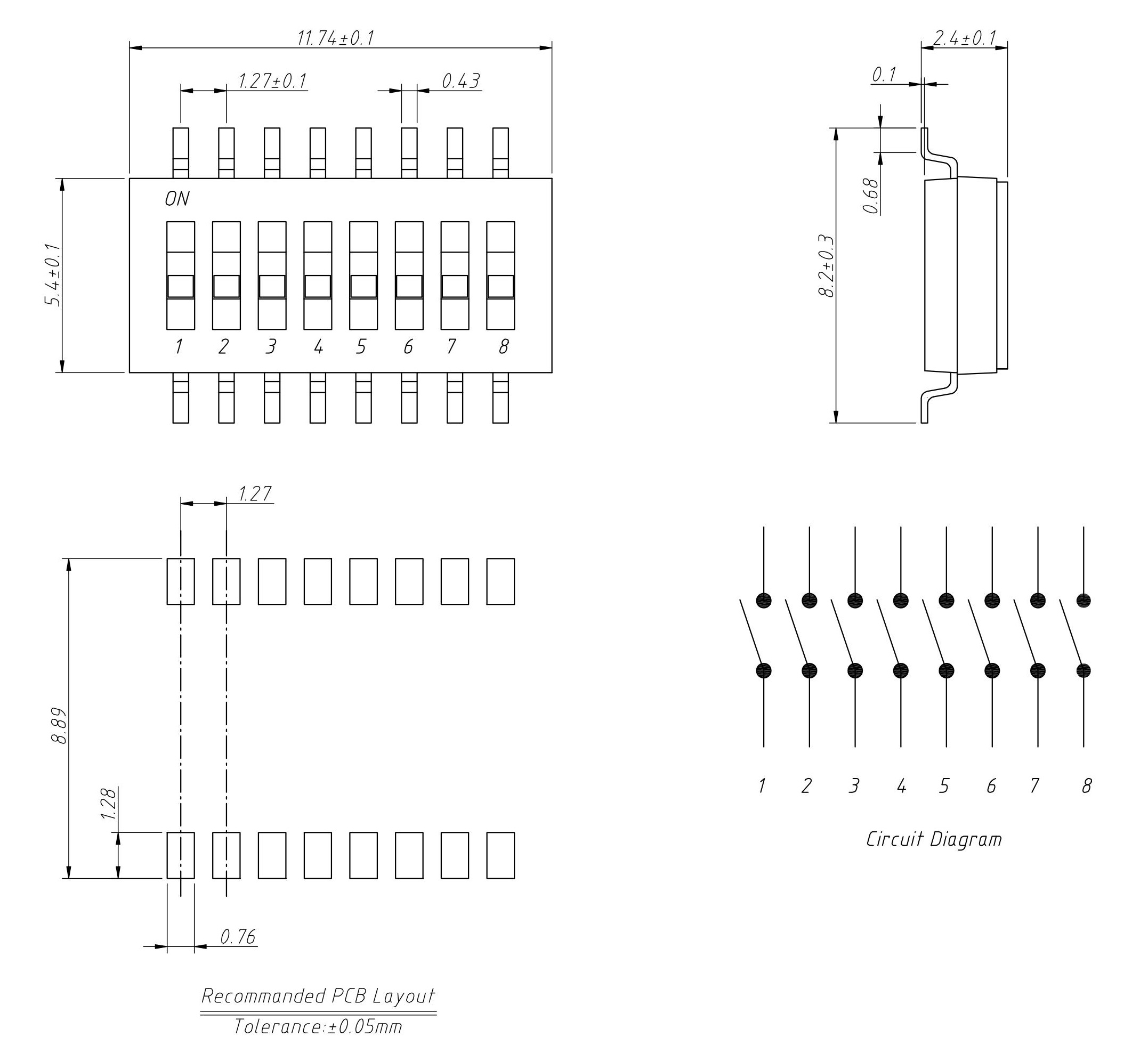

KKG Electronics presents the KLS7-KPR Series, a compact dip switch smd solution engineered for miniaturized electronic designs. Utilizing a 1.27mm half-pitch, this component reduces mounting space by approximately 50%, making it ideal for modern, high-density PCBs. The 8-position model functions as a highly efficient dip switch 8 pins module, providing 256 binary combinations in a fraction of the space. Its heat-resistant housing withstands reflow soldering, ensuring robust integration into automated assembly lines. With gold-plated internals, it guarantees a stable connection whenever you toggle the on dip switch state. This versatile switch is the preferred choice for communication and industrial devices requiring a reliable, space-saving configuration interface.

Keyence GT2 Series DIP Switch's Product Operating Principle

Miniature Slide: The flat actuator moves horizontally to shift the internal wiper, bridging contacts to complete the circuit.
Half-Pitch Logic: Independent SPST circuits are spaced at 1.27mm intervals, allowing high-density binary coding in a small footprint.
SMT Interface: Gull-wing leads allow for direct surface mounting and reflow soldering, eliminating the need for through-holes.

Cisco Catalyst 9200 DIP Switch's Product Functions

Space Saving: Enables complex logic configuration on extremely small PCBs where standard switches simply would not fit.
Device Addressing: Sets unique hardware IDs for compact modules in server blades without increasing the device footprint.
Mode Selection: Allows manufacturers to manually configure regional settings or frequency bands on mass-produced SMT boards.
Signal Gating: Acts as a miniature physical disconnect to enable or disable specific circuit paths during testing.

Communication Equipment: Integrated into the mainboard of the Cisco Catalyst 9200 Series Switch to configure internal boot modes and redundancy settings.

Industrial Sensors: Used in the compact housing of the Keyence GT2 Series Digital Contact Sensor to set measurement modes and output types.

Wireless Modules: Located on the PCB of the Espressif ESP32-WROOM Development Module to manually toggle bootloader modes during firmware flashing.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1:Are you a factory or trade company?

A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.

Q2: What is the turnaround time for rapid prototyping of modified designs?

A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.

Q3: How do you ensure long-term product availability for legacy systems?

A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.

Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
