Ultra-Compact SMD Logic Switch Series

Medtronic MiniMed 780G DIP Switch's Product Introduction

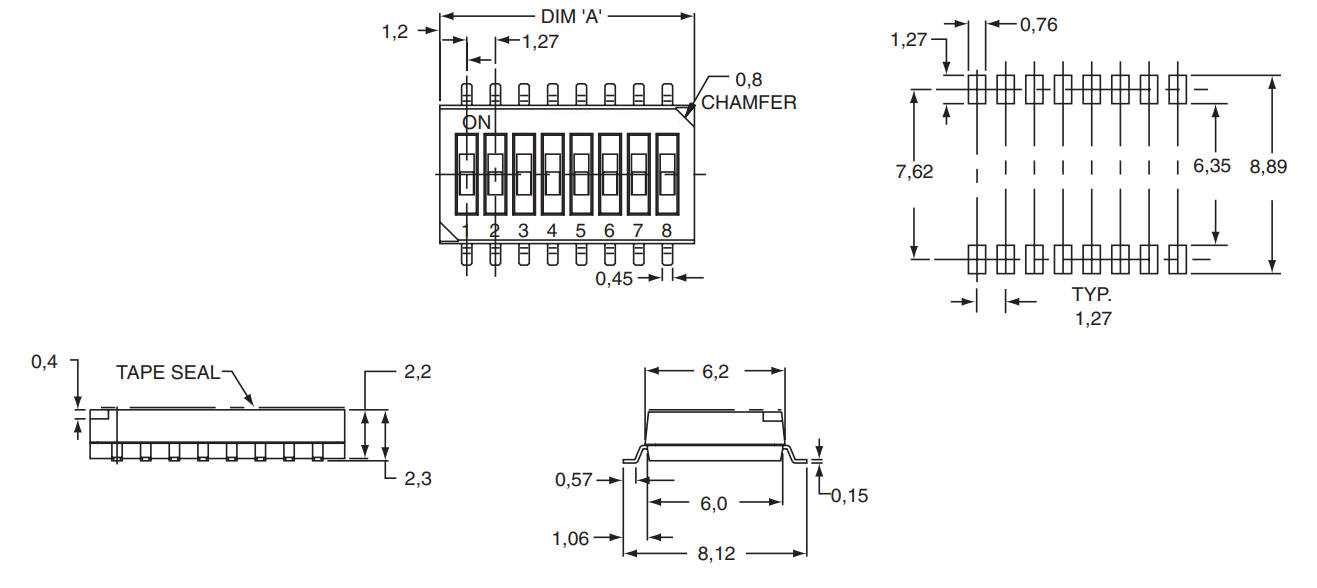

KKG Electronics presents the DIP-H0SB1 Series, an ultra-compact dip switch smd solution designed for the most demanding high-density applications. Featuring a 1.27mm half-pitch, this component reduces the required board space by up to 50% compared to standard switches. It comes equipped with a top tape seal, allowing it to withstand automated washing processes and facilitating vacuum placement. While the series includes various configurations, the 6-position dip switch 12 pin variant is particularly popular for compact module addressing. As a true mini dip switch, it combines space efficiency with industrial-grade reliability. Whether used in consumer electronics or industrial controls, this electronic dip switch ensures stable signal transmission with its robust heat-resistant housing and gold-plated contacts.

Cisco Catalyst 9300 DIP Switch's Product Operating Principle

Tape Sealed Actuation: The low-profile slider operates beneath a protective tape layer, which preserves contact integrity by preventing flux and contaminant ingress during assembly.
Half-Pitch Geometry: Internal contacts are spaced at a precise 1.27mm interval, allowing for independent SPST circuits to be packed into a high-density footprint.
SMD Contact Interface: Gull-wing leads extend from the side of the housing, designed specifically for surface mount reflow soldering and stable PCB adhesion.

Siemens ET 200SP DIP Switch's Product Functions

Process Compatibility: The integrated top seal allows the switch to pass through aqueous or solvent washing cycles without compromising the electrical contacts.
High-Density Settings: Enables engineers to implement complex hardware configuration logic on miniaturized PCBs where standard switches are too bulky.
Automated Placement: The tape seal provides a smooth, flat surface optimized for the vacuum nozzles of high-speed SMT pick-and-place machinery.
Configuration Logic: Provides a reliable physical interface for setting binary codes, such as enabling specific frequency bands or device modes.

Industrial Automation: Integrated into the compact I/O slices of the Siemens ET 200SP to configure bus addresses and fail-safe modes.

Networking Hardware: Used on the high-density motherboard of the Cisco Catalyst 9300 Switch to manually set secure boot options and console baud rates.

Medical Devices: Located on the main control PCB of the Medtronic MiniMed 780G Insulin Pump to configure factory diagnostic modes during production.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
