Rotary Coded Switch

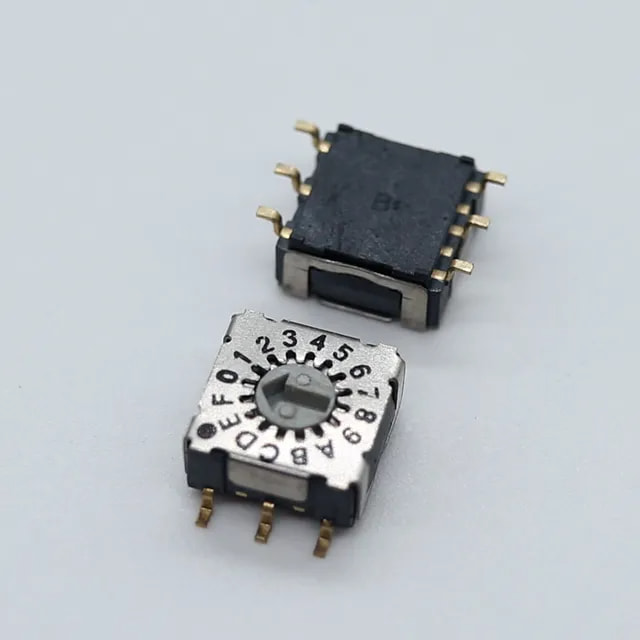

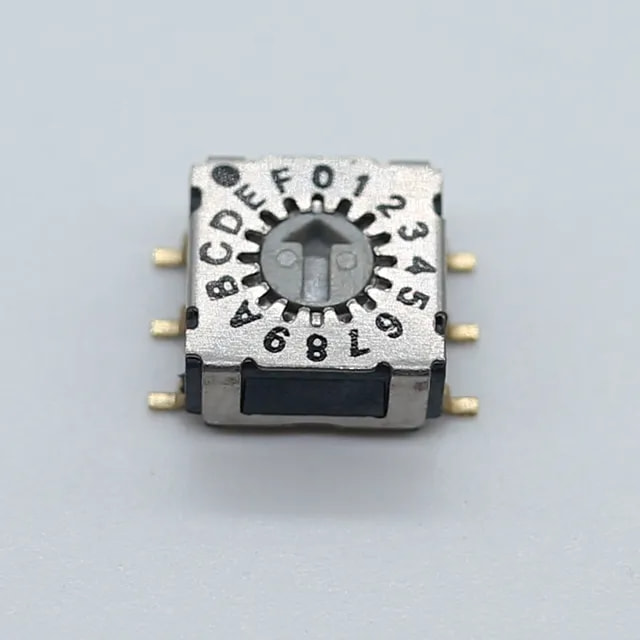

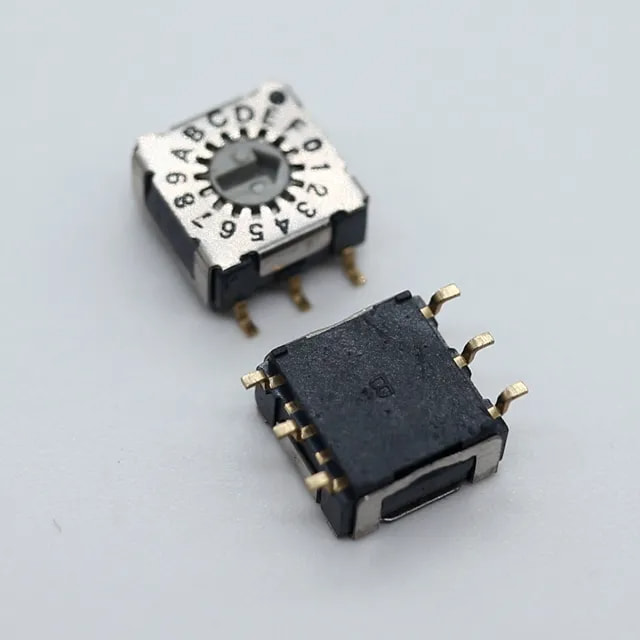

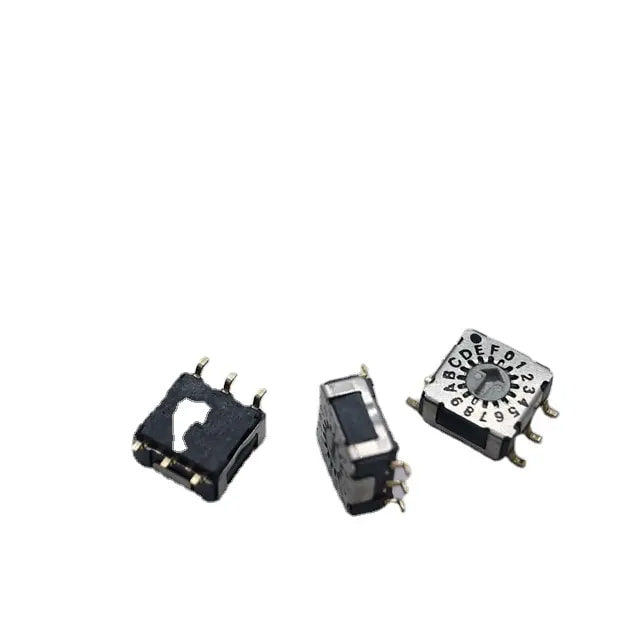

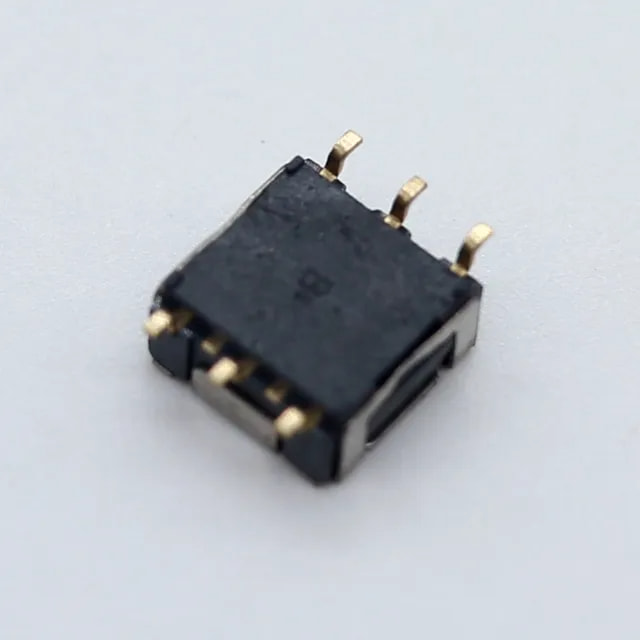

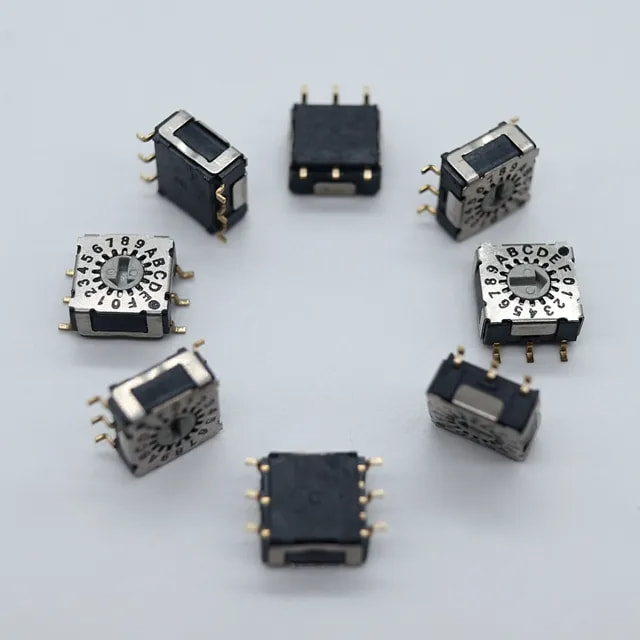

Product Description

Components of coding Switch

    Coded switches are mainly composed of five parts: knob, switch handle, adjustable coding disk, coding plate and keypad. The knob and handle are used to set the control conditions, the adjustable coding disk and the coding plate form the codable parts and provide the coding signals, and the keys are used to realize the control operation of the switch.

Product Specification

1. Rating Voltage                    42V100mA (Switching)400mA (None-Switching)

2.Contact Resistance             80m2 Max

3.Insulation Resistance          100M2. Min

4. Operating Force                 120gf+30gf

5. Life Cycle                            25,000 steps

6. Solder Condition                 Reflow Soldering :10s/260'

                                                Clron Soldering :4s/350'C

                                                Wave Soldering :5s/280°CIP67 (Dust & Water Proof)

7. Sealing                                IP67 (Dust & Water Proof)

Product Working Principle

      The operating principle of a coded switch is based on binary coding. The rotation of the knob drives the adjustable coding disk and the coding plate through the switch handle, and the angle of change of the knob is recorded, and different binary codes are marked on the adjustable coding disk and the coding plate. When the switch is operated, the pushbutton rotates the adjustable coding disk and the coding plate together, and the contacts of the coding plate come into contact with the wires on the adjustable coding disk, and output the relevant control signals according to the connected binary codes, realizing the function of switch control.

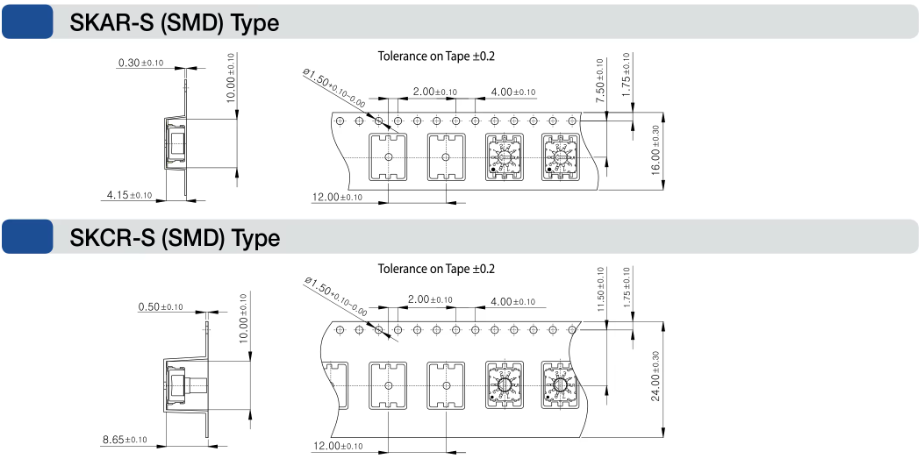

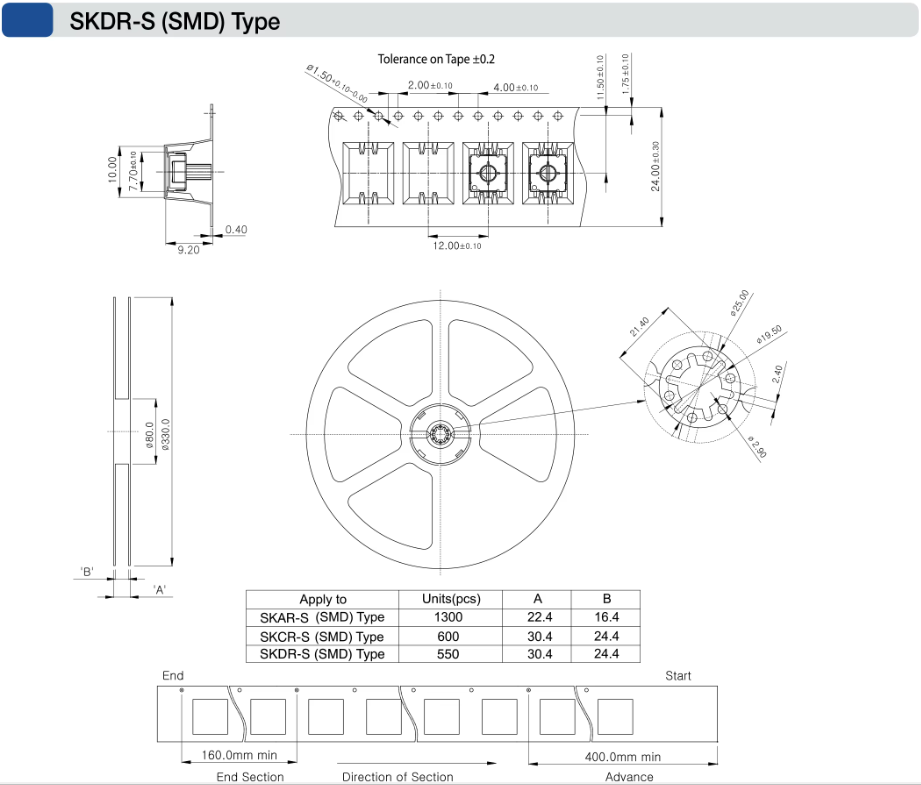

Product Drawing

Product Application

        Coded switches are widely used in electronic equipment, counters, and controls. They can be used in a variety of digital input and control schemes due to their combination of counter and switch control functions. In the field of machinery, coded switches can be used to flexibly control mechanical movement paths and actions, improving the precision and automation of machinery.
