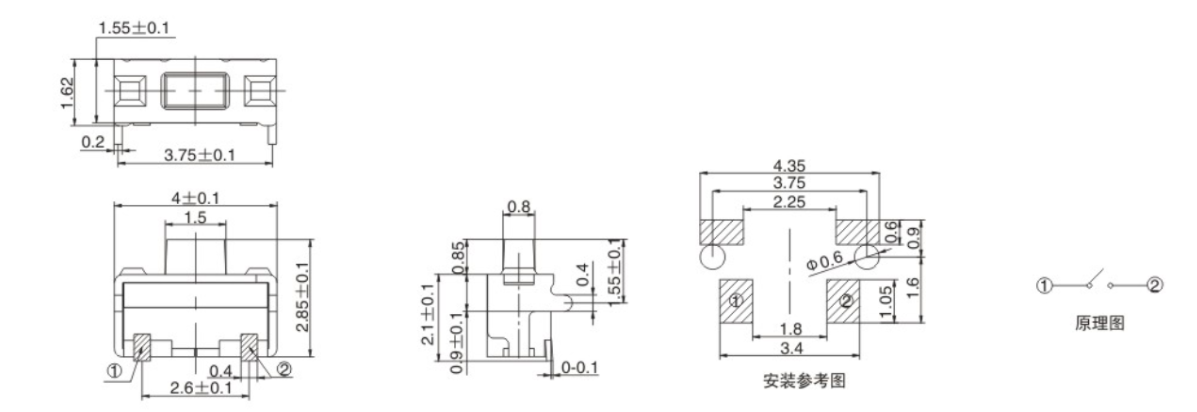

4mm*2mm H=1.62mm
FEATURE
‧Silver plated contacts
‧Reflow solderable.
APPLICATIONS
‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
| Characteristics | Specification |
| Operating temperature range | -30℃ to +85℃ |
| Operating force | 100gf、160gf、260gf |
| Travel | 0.25mm |
| Dimension | 4* 2.85mm |
| Operating life | 100,000 cycles |
| Maximum ratings | DC12V 50mA |
| Insulation resistance | 100MΩ min |
| Voltage proof | 1 minute 250V AC |
