Illuminated Tactile Switch
  • Illuminated Tactile Switch

Illuminated Tactile Switch

Discover high-quality illumination tactile switches designed for enhanced visibility and precise control. Our LED backlit push button switches feature waterproof, momentary, and SMD designs, ideal for industrial, automotive, and consumer electronics applications. Available in various colors, sizes, and mounting options.

  • Product Details
  • Product Parameters
  • Switch Specification

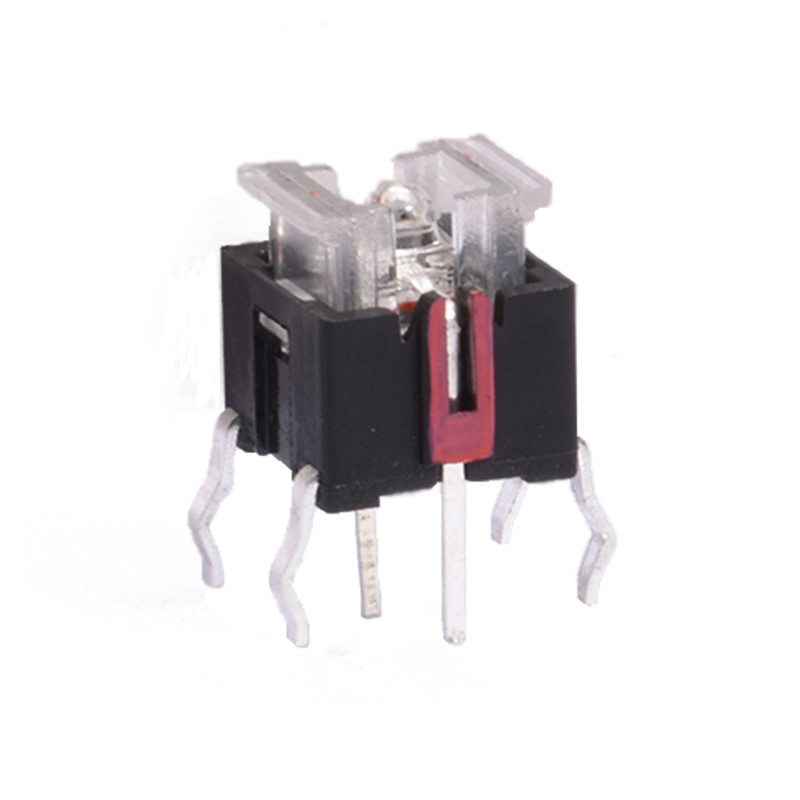

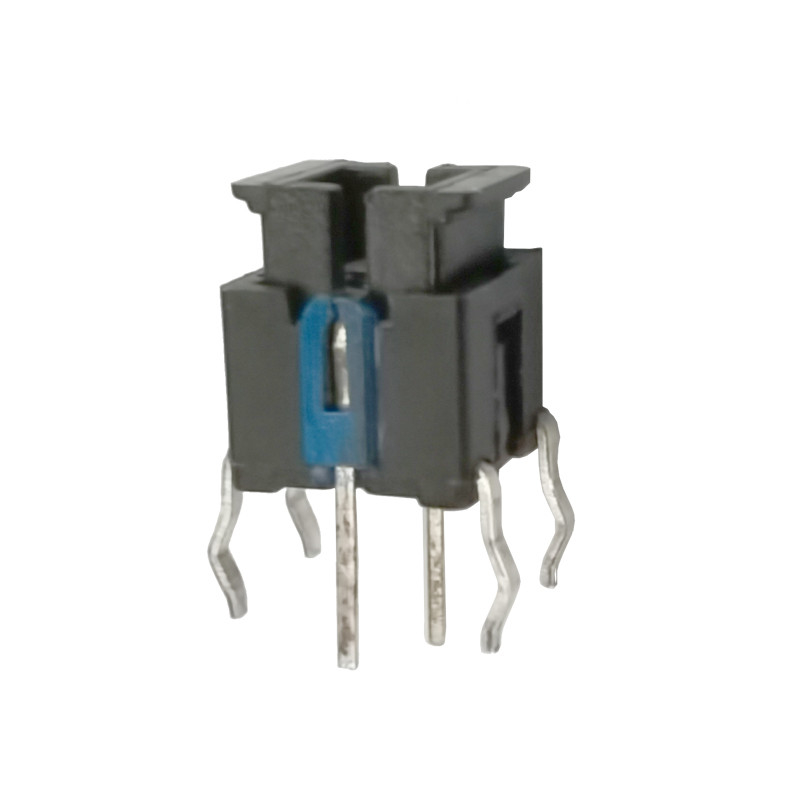

Illumination tactile switches are LED-backlit push button switches designed to provide both tactile feedback and visual indication. These switches combine ergonomic operation with high durability, making them ideal for various electronic applications. Available in SMD and through-hole mounting options, they come in multiple colors and configurations to suit different design requirements.


Products Features

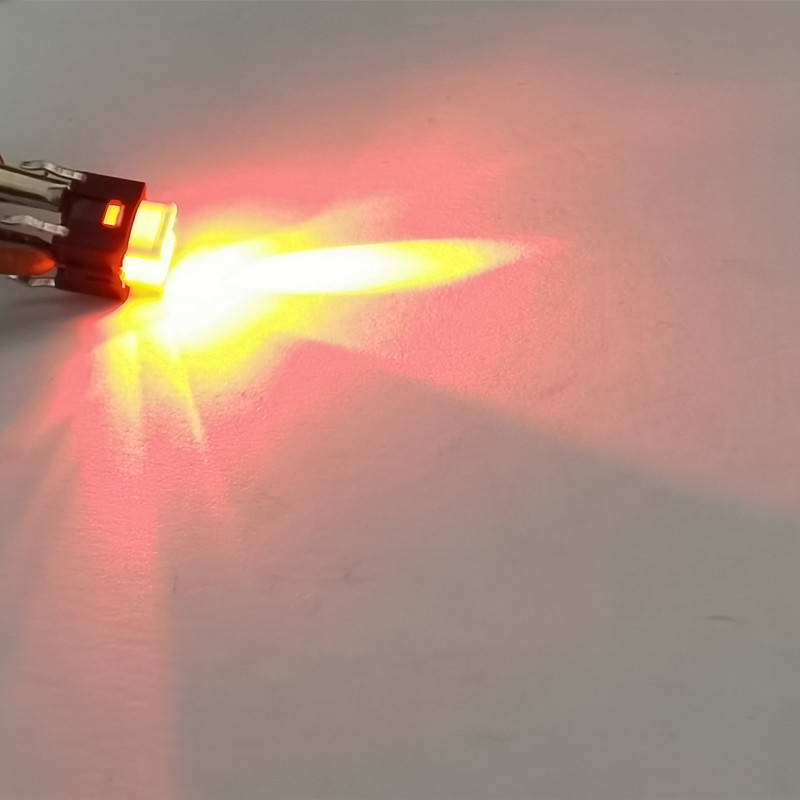

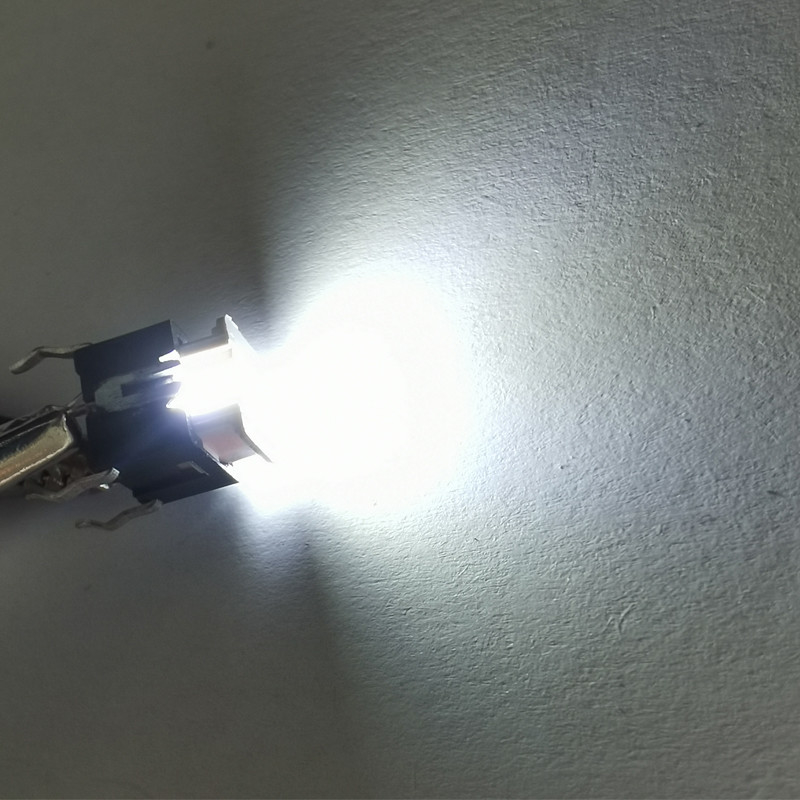

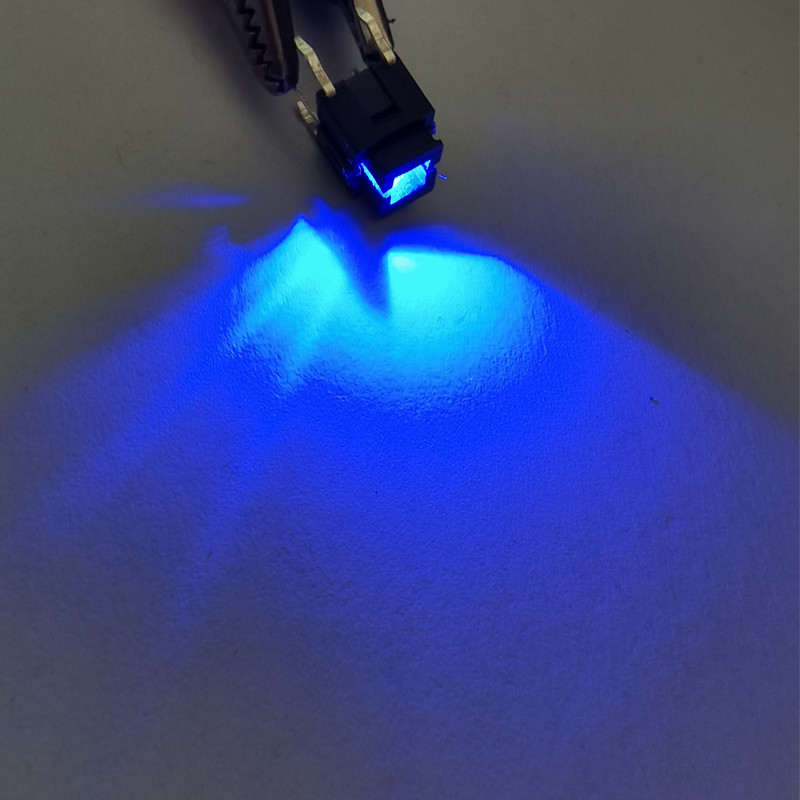

  • LED Backlighting: Built-in LED illumination enhances visibility in low-light environments.

  • Tactile Feedback: Provides a precise and responsive actuation feel.

  • Multiple Actuation Types: Available in momentary and latching designs.

  • Compact & Versatile: Available in different sizes, including 6mm, 8mm, 10mm, and 12mm.

  • Waterproof Options: IP-rated models for enhanced durability in harsh environments.

  • Multiple Mounting Options: Supports SMD (Surface Mount Device) and through-hole installation.

  • Color Variations: Single-color, bi-color, and RGB LED options.



Product Advantages

Enhanced User Experience

The tactile feedback ensures users receive a clear, responsive click when pressing the switch, making it ideal for precision control applications.

High Visibility & Aesthetic Appeal

With LED backlighting, these switches offer excellent visibility in dark environments and aesthetic appeal in consumer electronics and professional equipment.

Durability & Reliability

Manufactured with high-quality materials, our illumination tactile switches are designed to withstand millions of actuations, ensuring long service life.

Versatile Integration

Compatible with various circuit designs, these switches support low power consumption and can be used in battery-powered applications.




Lamp switches'Features

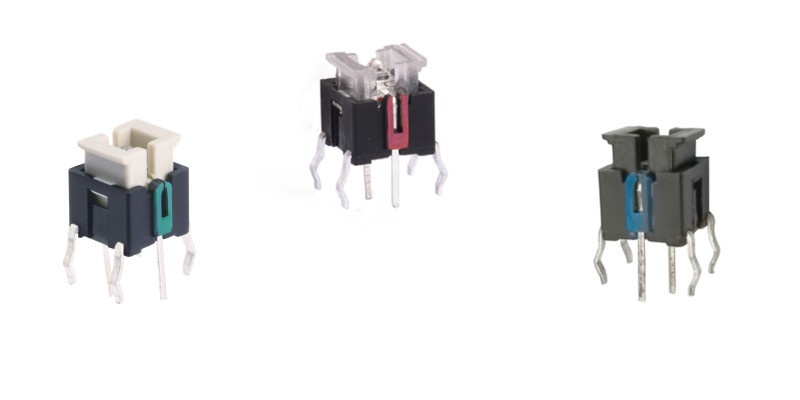

 •Multiple cap options: Lettering, Graphic,Custom legends Transparent, Silver plating, Balck painting, UV coating Round, Square, Rectangle, Customized caps

• Sharp tactile response

• Mount options: THT, SMT

• Illumination options: Single colors, Bi-colors

•RoHS compliant and compatible



Materials

 Cap: ABS or PC (polycarbonate)

Actuator: Polyamide (PA66 or PPA)

Housing: Fibre glass reinforced PA

Contact dome: Stainless steel, phosphor copper with silver or gold plated

Stationary contacts and terminals: Brass with silver or gold plated





Frequently Asked Questions (FAQ)

Q1: What is an illumination tactile switch?

An illumination tactile switch is a push button switch with built-in LED backlighting that provides both tactile feedback and visual indication when pressed.

Q2: Are these switches waterproof?

Yes, waterproof models with IP ratings (such as IP67) are available, making them suitable for outdoor and industrial applications.

Q3: What are the available LED colors?

Our illumination tactile switches are available in single-color (red, blue, green, white, yellow), bi-color, and RGB (multi-color) options.

Q4: What is the difference between momentary and latching switches?

  • Momentary Switch: The button returns to its original position when released.

  • Latching Switch: The button stays in place until pressed again.

Q5: Do you offer custom designs?

Yes, we provide custom solutions, including different sizes, LED colors, and operating forces to meet specific project needs.


Current:

50mA (maximum)

Voltage:

30V DC (maximum)

LED:

Yes

Life Expectancy:

50,000 / 100,000 / 200,000 / 300,000 / 500,000 Cycles

Operation Type:

SPST,OFF-(ON),Momentary

Contact Resistance:

≤50mΩ

Insulation Resistance:

≥100MΩ At 250VDC For 1 Min

Dielectric Strength:

250VAC For 1 Min

Operating Temperature:

-25°C To +75°C

Relative Humidity:

45% To 85%

Salt Spray Test.:

NSS 48hrs Or Customized

Operating Force:

130±50gf / 160±50gf / 200±50gf / 260±50gf / 300±60gf / 350±60gf

Travel:

0.25±0.10mm

Protection Level:

IP40



SpecificationDetails
Electrical Rating30mA 30VDC
Life Expectancy50,000 / 100,000 / 200,000 / 300,000 / 500,000 cycles
Contact Resistance&le;50m&Omega;
Insulation Resistance&ge;100M&Omega; at 250VDC for 1 min.
Dielectric Strength250VAC for 1 min.
Operating Temperature-25&deg;C to +75&deg;C
Relative Humidity45% to 85%
Salt Spray TestNSS 48hrs or customized
Operating Force130&plusmn;50gf / 160&plusmn;50gf / 200&plusmn;50gf / 260&plusmn;50gf / 300&plusmn;60gf / 350&plusmn;60gf
Travel0.25&plusmn;0.10mm
FunctionSPST, OFF-(ON), Momentary
Bounce Time&le;5 mS
