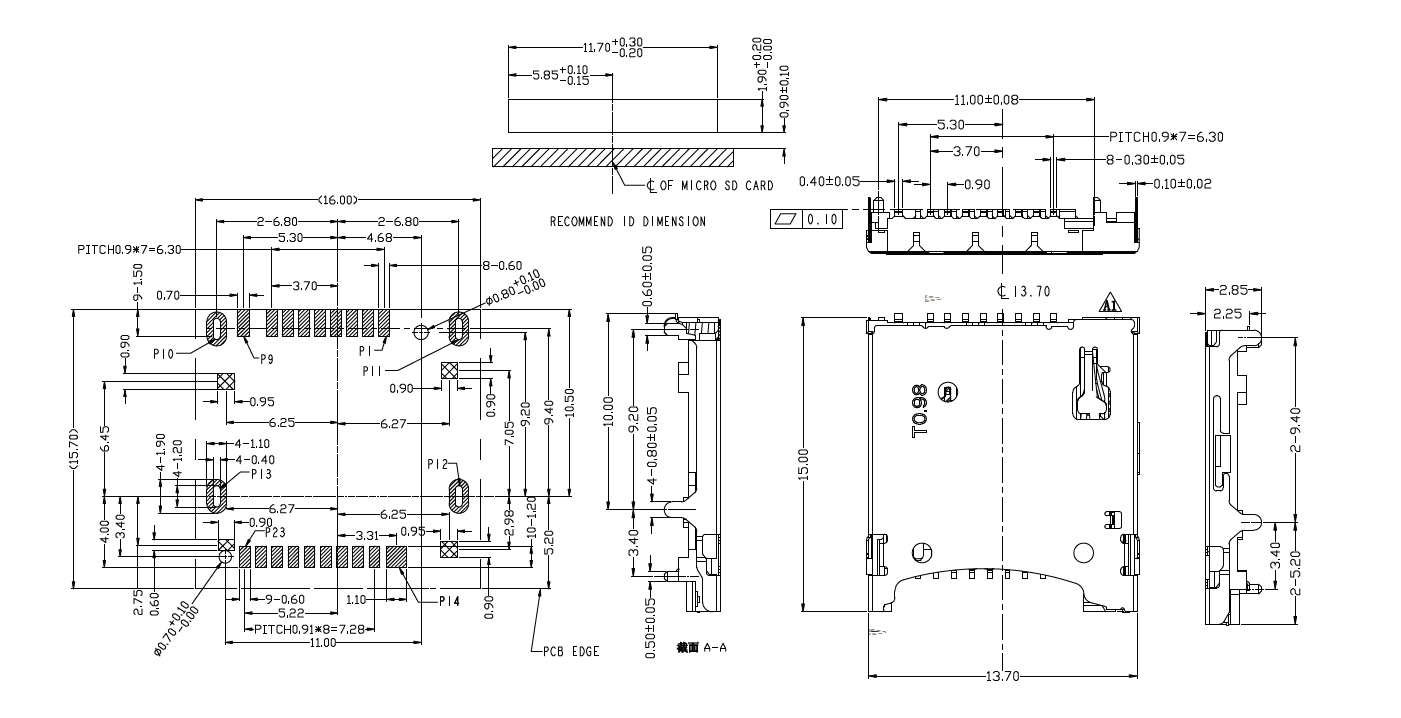

Low Profile Push-Push TF Card Socket

Garmin eTrex 10 TF Card Connector's Product Introduction

KKG Electronics presents the TF-2562, a high-precision interface designed to secure removable media in compact devices. While functionally essentially a memory card socket for TransFlash (Micro SD) cards, its robust build quality rivals that of an industrial micro sim connector. The component features a convenient "push-push" mechanism: push to lock the card in place, and push again to eject it. This ensures a secure retention force that prevents accidental data loss during operation. The housing is constructed from high-temperature thermoplastic to withstand SMT reflow soldering processes. As a versatile card socket, it integrates a card detection switch to wake the host processor upon insertion. Although distinct in form factor from a standard micro sim card connector, engineers often select the TF-2562 for its similar reliability profile and gold-plated contact integrity in consumer electronics and IoT devices.

ESP32-CAM TF Card Connector's Product Operating Principle

Push-Push Ejection: The connector utilizes an internal cam and spring system where the user pushes the card inward to latch it securely and pushes it again to release the latch and eject the media.
Electrical Contact: Precision-stamped gold-plated phosphor bronze contacts flex upon insertion to wipe against the card's pads establishing a low-resistance path for data transmission.
Presence Detection: A dedicated mechanical switch lever is physically depressed by the card body when fully inserted closing a circuit to signal the device firmware that media is present.

Samsung SmartThings TF Card Connector's Product Functions

Media Interface: Acts as the physical bridge for SPI or SDIO communication protocols allowing the device processor to read and write data to the external flash storage.
Vibration Resistance: Securely holds the card in place using a spring-loaded latch ensuring continuous electrical contact even in portable devices subject to movement or shock.
Hot-Swappability: Facilitates the safe insertion and removal of storage media while the device is powered on managed by the detect pin logic.
EMI Shielding: The stainless steel cover provides structural reinforcement and is soldered to the PCB ground plane to shield high-speed data signals from electromagnetic interference.

Dash Cameras: Integrated into the side panel of the Garmin Dash Cam 67W to provide a secure slot for continuous loop recording storage.
Development Boards: Used on the expansion interface of the ESP32-CAM module to store captured images and logs locally.
Handheld GPS: Located in the battery compartment of the Garmin eTrex 10 (and devices using similar micro sim connector technology) to load regional map data.
Smart Home Hubs: Integrated into the Samsung SmartThings Hub V3 to allow for local firmware backup and diagnostic logging.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
