Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: USB-UB027Z
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
| Current Rating | 1.5A/contact terminal |
| Voltage Rating | 30V DC |
| Contact Resistance | 30MΩ |

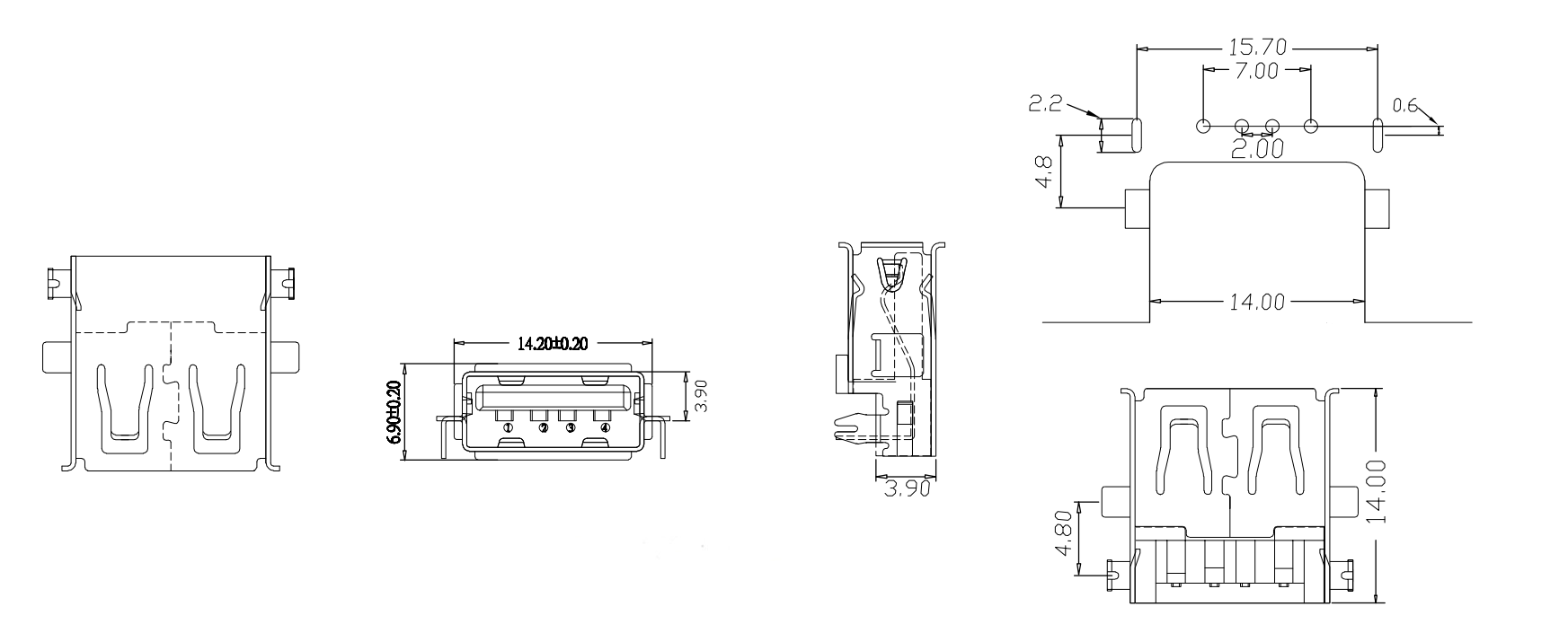

| Dimension | 14.00mm*14.20mm |
| Dielectric Withstabding Voltage | 100V DC |
| Insulation Resistance | 100MΩ min |
ZF 8HP-style Gearbox ECU USB Connector's Product Operating Principle
The sink-plate mounting embeds 2.1mm into PCB layers, achieving 6.5mm total height for multi-board stacking. Dual copper-alloy shielding layers (inner EMI cage + outer nickel coating) suppress interference by 48dB at 200MHz. Wave-soldered terminals maintain ＜25mΩ impedance during 12G vibration (IEC 60512-7-1 tested).
Surgical-style System USB Connector's Product Functions
--Space Revolution: 14×14.2mm footprint with 6.5mm height enables 8-layer PCB in 10mm chassis.
--USB 2.0 Hi-Speed+: 480Mbps data + BC1.2 charging protocol compliance.
--Automotive-Grade: IATF 16949 certified & 96hr thermal shock tested (-40°C ↔ 105°C).
--EMI Fortress: Double-shield structure passes CISPR 32 Class B emission limits.
--High-Yield Manufacturing: Wave soldering achieves 35,000 units/hour throughput.
Beckhoff CPX-style HMI USB Connector's Product Applications
Vehicle Transmission Controllers
Example: Integrated into ZF 8HP-style gearbox ECUs with space-constrained USB-B ports.
Surgical Robotics Consoles
Example: Powers Intuitive Surgical-style systems with EMI-safe firmware update interfaces.
Industrial Touchscreen Panels
Example: Deployed in Beckhoff CPX-style HMIs for multi-axis control USB hubs.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What are the key compatibility standards for your USB Type-A Connector?
A: Our USB Type-A Connector complies with USB 2.0 and 3.0 specifications, supporting backward compatibility with legacy devices. Pins are designed per USB-IF guidelines for seamless integration.
Q2: What current and voltage ratings do your connectors support?
A: USB 2.0: 1.5A max at 5V DC.
USB 3.0: 3A max at 5V DC, with enhanced shielding for stable high-speed data transfer.
Q3: Are these Connecotrs suitable for automated PCB assembly?
A: Yes, they support both SMT and through-hole mounting.
Recommended PCB pad layouts and thermal profiles are provided in datasheets to prevent soldering defects.
Q4: What environmental tests are performed to ensure reliability?
A: Products undergo temperature cycling (-40°C to +85°C), humidity resistance (95% RH), and 10,000+ insertion cycles to meet industrial durability demands.
Q5: Do your connectors have certifications for global markets?
A: All USB Type-A connector are RoHS, REACH, and USB-IF certified, ensuring compliance with international regulatory and safety standards.
