Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: USB 3.0-3132
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Current Rating | 1A/contact terminal |
| Voltage Rating | 30V DC |
| Contact Resistance | 30MΩ |

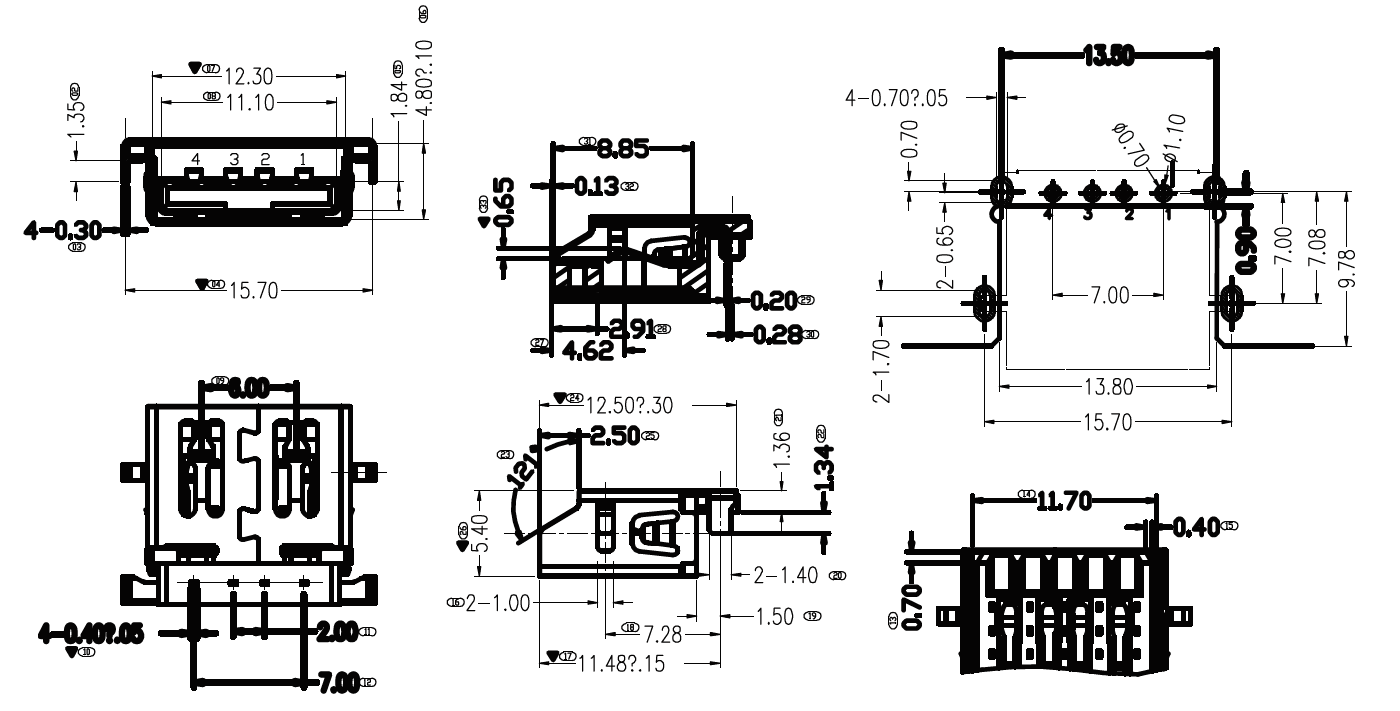

| Dimension | 12.9mm*12.5mm |
| Dielectric Withstabding Voltage | 100V DC |
| Insulation Resistance | 100MΩ min |
Fitbit-style Health Monitor USB Connector's Product Operating Principle
Its reverse-sunk angled pins enable 2.1mm ultra-low PCB mounting height, reducing device thickness by 35% compared to standard USB ports. The four-corner wave-soldered terminals enhance mechanical stability during vibration (15G tested), while the precision-molded slant port ensures blind mating compatibility in tight spaces. EMI shielding layers achieve 50dB interference suppression at 2GHz.
Garmin-like Dashcam USB Port USB Connector's Product Functions
--Ultra-Compact: 12.9×12.5mm footprint with 1.36mm reverse-sunk pins for slim devices.
--Anti-Vibration Design: Angled 4-pin structure increases solder joint strength by 40%.
--USB 3.0 SuperSpeed: 5Gbps transfer with USB 2.0 backward compatibility.
--Automotive-Ready: Operates at -40°C~85°C with 10K mating cycles.
--Mass Production: Wave soldering supports 15,000+ units/hour throughput.
Pi Zero-sized Controllers Sensors USB Connector's Product Applications
Medical Wearables
Example: Integrated into Fitbit-style health monitors for clinical data downloads.
In-Car Navigation Systems
Example: Used in Garmin-like dashcams for high-speed video backup via USB-C.
Miniature IoT Gateways
Example: Powers Raspberry Pi Zero-sized controllers in smart agriculture sensors.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What is the lifespan of your USB Type-A female connectors under continuous use?
A: Our connectors are rated for over 10,000 insertion cycles. Contacts maintain stable resistance (<30mω) even="" after="" prolonged="" mechanical="" stress.="">
Q2: Do you provide anti-static protection for sensitive electronics integration?
A:Yes, all connectors include ESD shielding (15kV minimum) to protect against static discharge during handling or operation.
Q3: What are the lead time and packaging options for bulk orders?
A: Standard Orders: 15-20 days, packed in anti-static tape and reel.
Custom Requests: 25-30 days, with vacuum-sealed moisture barrier bags for humidity-sensitive environments.
Q4: How do your connectors handle high-temperature soldering processes?
A: The nylon housing withstands reflow soldering up to 260°C for 10 seconds. Precise pin alignment prevents warping during PCB assembly.
Q5: Are samples available for testing before mass production?
A: Free samples are provided for qualified clients. Submit your application via our OEM portal, including intended use and annual volume.
