Product Description

The USB 3.0 connector is a next-generation high-speed connector designed for compact devices that demand stable communication, fast transfer rates, and durable structural performance. Unlike traditional USB connector designs, this upgraded short USB connector version incorporates a reverse-side recessed PCB structure (1.8 mm depth) that significantly reduces vertical height, making it ideal for ultra-thin and space-limited applications.

Featuring a horizontal 90° DIP layout, a robust metal shell for EMI shielding, and a black polymer base aligned with KKG’s signature industrial style, this usb 3.0 connector delivers enhanced performance and structural integrity for modern electronics.

For devices using micro usb connector or micro usb port, this USB 3.0 Type-A upgrade offers greater speed, lower power consumption, and a much longer service life.

Key Features

1. Space-Saving Short USB Structure

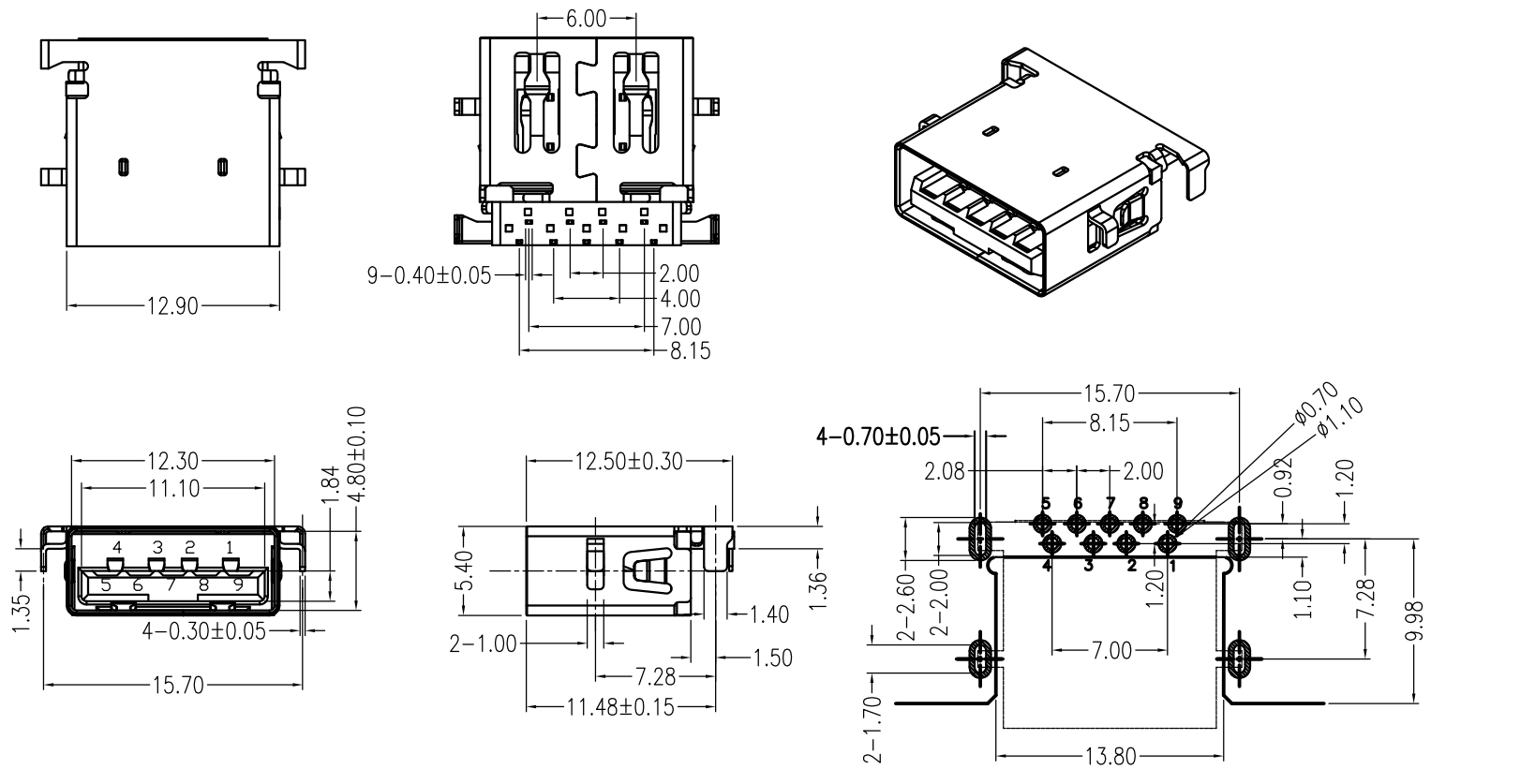

• Reverse recessed PCB design (1.8 mm depth) reduces vertical height

• Short usb connector body (12.9 mm × 12.5 mm) is smaller than standard USB Type-A

• Ideal for compact consumer electronics and slim industrial devices

2. High-Speed SuperSpeed Transmission

• USB 3.0 supports 5 Gbps

• USB 3.1 supports 10 Gbps

• USB 3.2 supports up to 20 Gbps

• Equipped with 9-pin structure including 5 super-speed channels for full-duplex data communication

3. Durable Mechanical Performance

• Insertion force: ≤35 N

• Withdrawal force: ≥10 N

• Mating life: up to 1500 cycles

• Gold-plated terminals maintain stable low-impedance connection

4. Industrial-Grade Materials

• Shell: Brass with matte tin plating – stable, low impedance, excellent processing

• Terminals: Phosphor bronze with gold plating – elasticity, wear resistance, low contact resistance

• Insulator: High-temperature LCP material – no deformation or bubbling at 260°C

5. Enhanced EMC & Signal Integrity

• Full metal shield prevents EMI interference

• Optimized internal structure ensures stable signal transmission

Product Advantages

 Ultra-Compact Short USB Connector

Compared with conventional usb connector designs, our short usb connector reduces PCB occupation and device thickness, supporting the trend of miniaturized electronics.

Reliable & Stable Signal Transmission

The 90° DIP structure + full metal shielding ensures stable, low-noise high-speed performance.

Stronger Than Micro USB Connectors

If upgrading from a micro usb connector or micro usb port, USB 3.0 Type-A offers:

• Faster speed

• Higher durability

• Larger power delivery

• Better structural strength

Industrial-Grade Materials for Long Lifespan

High-temperature LCP, gold-plated terminals, and fully shielded housing ensure long-term performance even in harsh environments.

Customizable for OEM/ODM Needs

Angle, pin plating, length, height, and shell type can all be customized for your specific device.

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Leveraging its compact size and stable performance, the short USB 3.0 Type-A connector is widely used across multiple fields:

Consumer Electronics: It serves as a data transfer and charging interface for smartphones, tablets, and other devices. Additionally, it is commonly adopted in audio equipment such as Bluetooth speakers to enable audio data transmission and charging functions.

Personal Computers & Peripherals: Laptops and desktop computers are usually equipped with multiple short USB Type-A ports. These ports connect peripherals like keyboards, mice, printers, scanners, and external storage devices, facilitating data transfer and device expansion for users.

Automotive Electronics: It is widely used in automotive electronic products including car chargers, in-vehicle entertainment systems, and dash cams. It provides power and data transmission channels for devices, meeting drivers’ needs for charging and entertainment in the car.

Medical Devices: Medical equipment such as electrocardiographs, blood pressure monitors, and patient monitors require stable data transmission and reliable power supply. The short USB 3.0 Type-A connector can connect various peripheral devices like sensors and external displays to collect and display patient information.

Industrial Equipment: In industrial scenarios, it is applied to data loggers, embedded systems, diagnostic tools, and other equipment. Its high voltage resistance and corrosion-resistant shell allow it to cope with harsh environments such as factory automation equipment or outdoor monitoring systems.

Smart Home: Smart home products like smart sensors and smart controllers also use this connector to realize device power supply and data communication. It enables users to centrally manage and control these devices through smart home systems.
