USB 3.0 Type-A Connector

DJI-style Drones  Data Export USB Connector's Product Operating Principle

This connector’s 90° right-angle SMD structure aligns parallel to the PCB, reducing vertical space by 30% versus traditional vertical ports. Reflow-soldered contacts ensure precision bonding for high-speed signal integrity. The gold-plated terminals minimize resistance fluctuations, while the shielded housing blocks electromagnetic noise in multi-device environments.

Sony Bravia-like TV USB port USB Connector's Product Functions

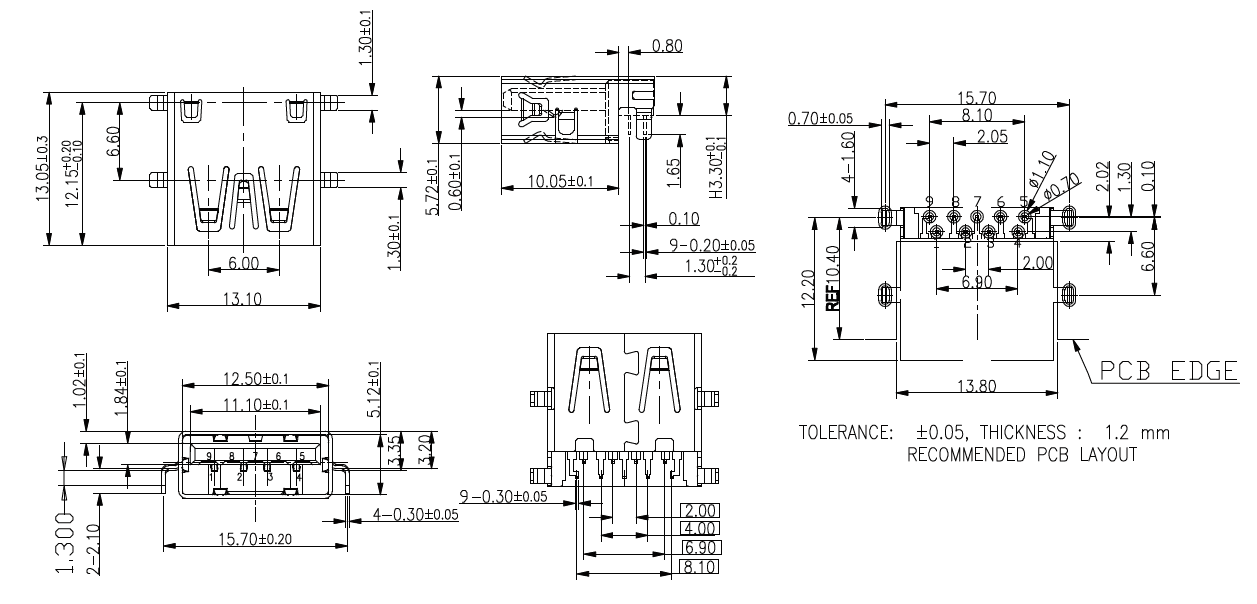

--Space-Saving: 13.1×13.05mm SMD design for slim devices (e.g., ultrabooks).

--High-Speed Stability: USB 3.0 SuperSpeed (5Gbps) with<0.2db signal="" loss.="">

--Automation-Ready: Reflow soldering compatibility for mass production.

--Robust Build: -40°C to 105°C operating range and 10,000+ mating cycles.

--RoHS 3.0 Compliant: Lead-free construction for global compliance.

Product Advantages

1. Fast & Stable SuperSpeed Performance

The connector delivers consistent 5Gbps throughput, outperforming many legacy usb cable types and improving user experience for data-critical devices.

2. Space-Saving SMD Mechanical Design

Its 13.1 × 13.05 mm profile and 90° angle help engineers optimize PCB layout in thin devices where every millimeter counts.

3. Broad Compatibility Across Connector Ecosystems

Ideal for systems combining types of usb ports, jst connector types, or other electrical wire connectors types, ensuring flexible integration.

4. Built for Modern Automation and Mass Production

Reflow-soldering support enables stable, consistent attachment in automated SMT production lines.

5. Environmentally Compliant

Meets RoHS 3.0 standards for safe, lead-free material composition.

Nintendo Switch-style Devices USB Connector's Product Applications

Miniature Drones

Example: Embedded in DJI-style drones for rapid HD video data export via USB-C.

4K Smart TVs

Example: Powers Sony Bravia-like TV USB ports for external storage connectivity.

Handheld Gaming Consoles

Example: Integrated into Nintendo Switch-style devices for quick game updates.

Operating Principle of Drone Data Export USB Connector

• The 90° right-angle layout positions the connector parallel to the PCB, reducing vertical space.

• Reflow soldered SMD terminals ensure high-precision bonding for signal integrity.

• Gold-plated contacts stabilize resistance and reduce data loss.

• Full metal shielding minimizes EMI during high-frequency data transmission in drones.

Functions in TV Devices

• Compact SMD form factor suitable for slim TV designs

• Supports 5Gbps SuperSpeed USB for external storage

• Durable for high-use household environments

• Wide compatibility with types of USB ports and accessories

Applications in Gaming Devices

• Enables fast game data updates

• Supports stable peripheral charging

• Designed for dense, space-limited console PCB layouts

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

High effiency of production, shipped in 1 day after payment.

Q1: What are the key compatibility standards for your USB Type-A Connector?

A: Our USB Type-A Connector complies with USB 2.0 and 3.0 specifications, supporting backward compatibility with legacy devices. Pins are designed per USB-IF guidelines for seamless integration.

Q2: What current and voltage ratings do your connectors support?

A:  USB 2.0: 1.5A max at 5V DC.

     USB 3.0: 3A max at 5V DC, with enhanced shielding for stable high-speed data transfer.

Q3: Are these Connecotrs suitable for automated PCB assembly?

A: Yes, they support both SMT and through-hole mounting.

    Recommended PCB pad layouts and thermal profiles are provided in datasheets to prevent soldering defects.

Q4: What environmental tests are performed to ensure reliability?

A: Products undergo temperature cycling (-40°C to +85°C), humidity resistance (95% RH), and 10,000+ insertion cycles to meet industrial durability demands.

Q5: Do your connectors have certifications for global markets?

A:  All USB Type-A connector are RoHS, REACH, and USB-IF certified, ensuring compliance with international regulatory and safety standards.
