Reverse-Side Recessed USB Connector

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: USB 3.0-3502

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union

More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com/

Inquire Now

Product Details

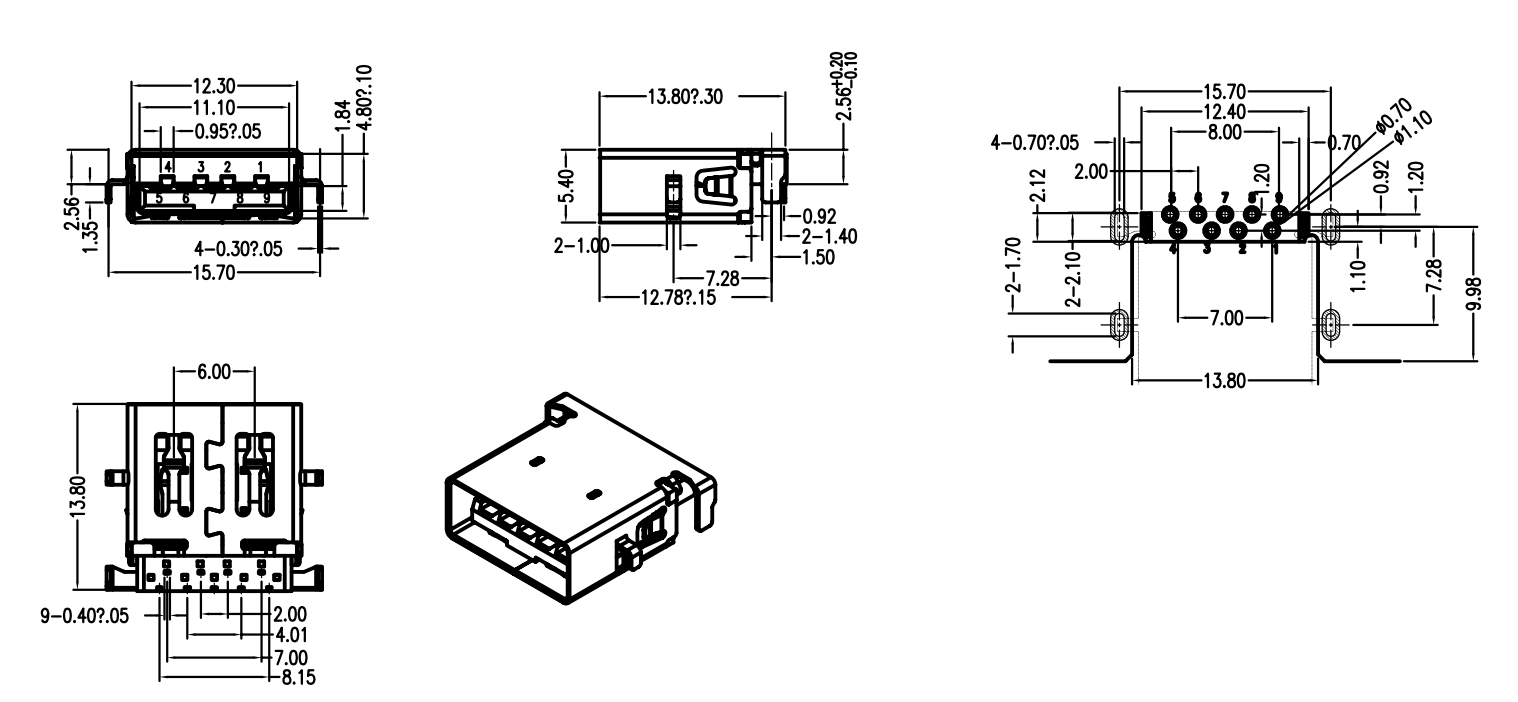

DIMENSIONS
Temperature Profile
Packaging Efficiency
FAQ

Characteristics	Specification
Current Rating	1A/contact terminal
Voltage Rating	30V DC
Contact Resistance	30MΩ
Dimension	12.9mm*13.8mm
Dielectric Withstabding Voltage	100V DC
Insulation Resistance	100MΩ min

LG Monitors USB Connector's Product Operating Principle

This connector integrates a reverse-side recessed PCB design to minimize vertical space while ensuring stable 5Gbps data transmission. The horizontal 90° DIP structure and wave soldering enhance durability in high-vibration environments like automotive systems or industrial IoT devices.

Festo Controllers USB Connector's Product Functions

✅ Reverse-Side Recessed PCB – 2.56mm depth optimizes vertical space for ultra-slim applications.

✅ 5Gbps High-Speed Transfer – Supports HD video streaming and rapid data exchange.

✅ Industrial Reliability – Operates in -40°C to +85°C, compatible with Tesla/Siemens systems.

BMW iDrive USB Connector's Product Applications

Automotive Electronics

Use wave-soldered DIP designs to withstand harsh conditions.

Example: Replace standard USB ports in BMW iDrive with USB 3.0-3502 for 5Gbps diagnostics.

Industrial IoT Devices

Leverage recessed PCB designs to reduce interference in Rockwell Automation panels.

Example: Integrate into Festo controllers for high-speed firmware updates.

Consumer Electronics

Match silver shells to Apple MacBook or Sony PlayStation designs.

Example: Retrofit LG monitors with USB 3.0-3502 for rapid data transfer.

USB 3.0-3502

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

High effiency of production, shipped in 1 day after payment.

Packaging

Q1. How can you ensure the quality?

A: All our products are 100% tested before delivery. Durable quality is guaranteed.

Q2: How can we get the samples and best quotation?

A:We need to know more details about the products you inquired.

For example, what are the functions you need? The specification of it and which finished products will be used with it?

It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.

We could provide the free samples to you.

Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.

Q4. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special
    requirement.
    For PCBA quotation, please provide Gerber data / files and BOM (bill of materials). If you need function test, please also provide
    the test instruction/ procedure.
