Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: USB 3.0-3551
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
https://mao.ecer.com/test/illuminatedtactswitch.com/
| Characteristics | Specification |
|---|---|
| Current Rating | 1A/contact terminal |
| Voltage Rating | 30V DC |
| Contact Resistance | 30MΩ |

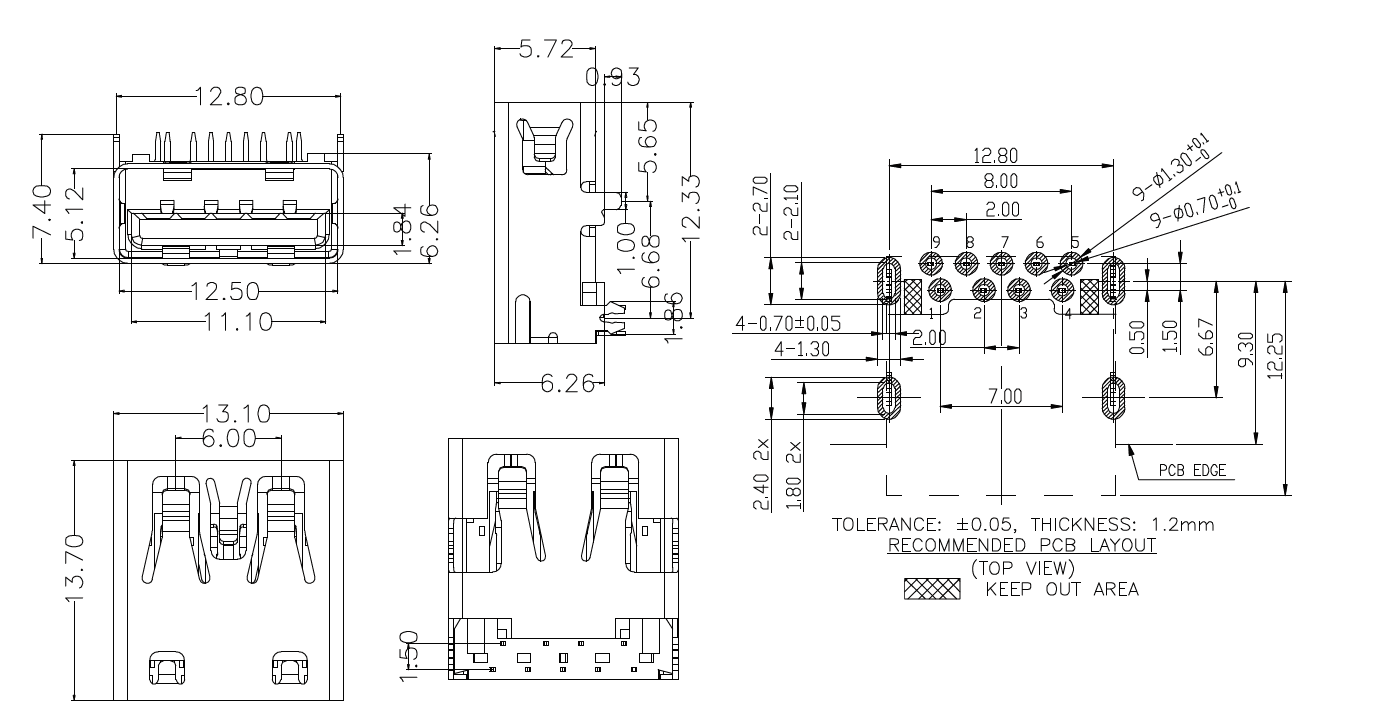

| Dimension | 13.1mm*13.7mm |
| Dielectric Withstabding Voltage | 100V DC |
| Insulation Resistance | 100MΩ min |
Ford SYNC Systems for USB-C Connectivity USB Connector's Product Operating Principle
The USB 3.0-3551 uses a horizontal 90-degree DIP orientation to optimize PCB space while maintaining signal integrity. Its wave-soldered pins ensure robust electrical connections, minimizing signal loss. The shielded design reduces electromagnetic interference (EMI), critical for high-speed data transmission. Advanced contact materials enable stable performance under harsh environments.
Rockwell Automation PLCs for Diagnostic Interface USB Connector's Product Functions
--Ultra-compact footprint (13.1×13.7mm) for miniaturized devices.
--USB 3.0 SuperSpeed (5Gbps) compatibility.
--Horizontal DIP structure simplifies PCB assembly.
--Vibration-resistant for automotive/industrial use.
--RoHS-compliant with gold-plated contacts.
ECG Monitors Requiring Fast Data Offload USB Connector's Product Applications
Automotive Infotainment
Example: Integrated into Tesla-style dashboard displays for seamless media streaming.
Smart Home Devices
Example: Used in Amazon Echo-style speakers for firmware updates via USB-C.
Medical Monitoring Tools
Example: Powers portable ECG monitors requiring fast data offload to PCs.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What USB standards and identification features do your Type-A female receptacles support?
A: Supports USB 2.0 (480 Mbps) and USB 3.0 (5 Gbps), backward-compatible with USB 1.1/1.0. USB 3.0 models are typically blue-housed, while USB 2.0 uses black.
Verify via 9-pin (USB 3.0) or 4-pin (USB 2.0) internal structures or "SS" markings.
Q2: What certifications ensure compliance for industrial applications?
A: All products meet USB-IF and RoHS certifications. Optional UL94 V-0 flame-retardant housing and ISO 9001 manufacturing compliance are available for enhanced safety and quality control.
Q3: How do you address EMI interference in high-speed data transmission?
A: Shielded variants feature optimized GND/VBUS branch terminals and differential signal pair layouts to suppress noise.
This design reduces common-mode conversion by 20% compared to standard model.
Q4: What are the electrical specifications and durability ratings?
A: --Rated voltage: 5V DC (max 1.5A for USB 2.0; 4A+ for high-current models).
--Stainless steel contacts ensure 5,000+ mating cycles (IEC 60512).
--Insulation resistance: ≥100 MΩ at 500V DC
Q5: Can you customize mounting and plating for specialized environments?
A: Options: Vertical/horizontal SMT, through-hole, or panel-mounted IP67 waterproof designs.
Plating: Gold (≥0.2μm) or nickel for corrosion resistance.
Material: Reinforced solder tabs or bayonet-lock housings for stress relief.
