Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

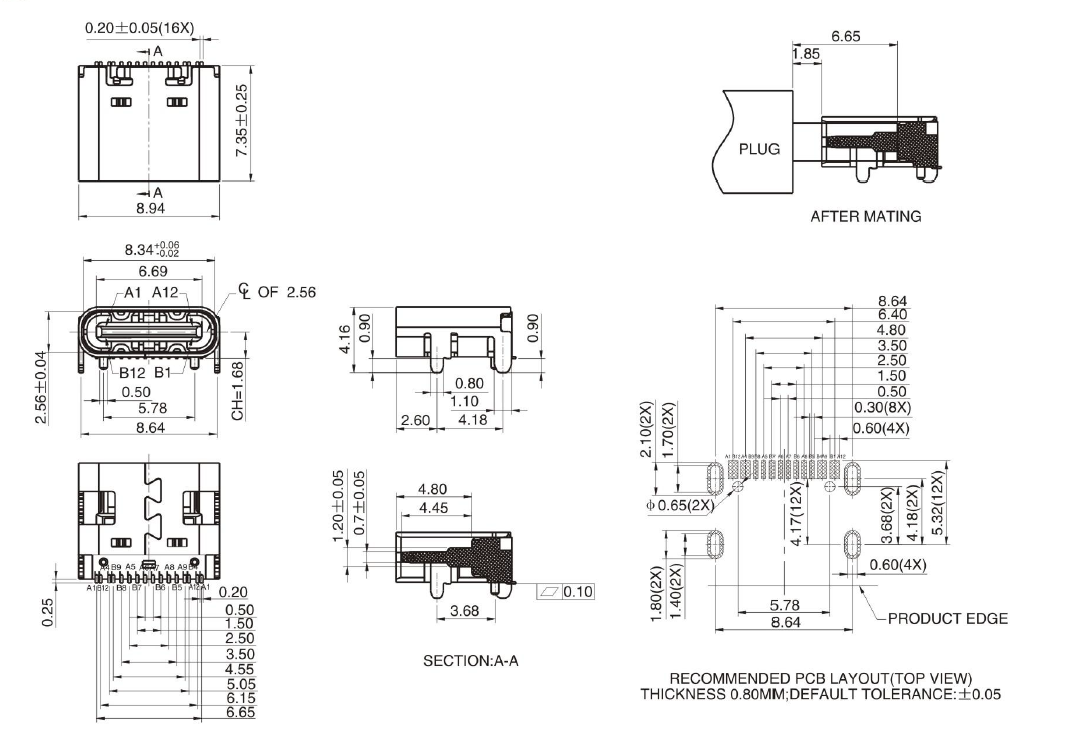

Model Number:TYPE-CF-16P-RAT-L7.3
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Reels in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
1.Current Rating : 5A Max
2.Voltage: 100VAC
3.Temperature Range: -30℃~ 85℃
4.Contact Resistance: 40 Millionnhm Max
5.Insulation Resistance: 100 Megohms Min.
6.Lnsertion Force: 5N- 20N
7.Unmating Force: 8N- 20N
8.Durability: 10, 000 cycles
1.Data Transfer: Uses advanced communication protocols within its 16-pin structure to enable data transfer rates of up to 10Gbps.
2.Power Delivery: Employs USB Power Delivery (PD) protocol to provide adjustable power levels (up to 100W), allowing fast charging for a wide range of devices.
3.Video Transmission: Supports Alternate Modes such as DisplayPort or HDMI for seamless video and audio output to external monitors or projectors.
4.Reversibility: Both ends of the connector are identical and can be inserted in either orientation, simplifying user experience.
Fast Charging Type-C Jack's Product Functions
1.Data Transmission: High-speed transfer for files, media, and applications.Status Indication: Clearly indicates the status of the device or system it controls via LED light.
2.Device Charging: Fast charging for smartphones, tablets, laptops, and power banks.
3.Video Output: Supports connection to external monitors, TVs, and projectors.
4.Peripheral Connection: Connects peripherals like keyboards, mice, printers, and external drives.
5.Cross-Device Compatibility: Simplifies connectivity between diverse devices.
High Power Delivery Type-C Jack's Product Applications
1.Smartphones and Tablets: USB Type-C is used for charging, data transfer, and sometimes video output (e.g., for connecting to a monitor or TV).
2.Laptops and Computers: Laptops use USB Type-C for charging, connecting peripherals, transferring data, and outputting video to external monitors.
3.Monitors and Displays: With DisplayPort Alternate Mode, USB Type-C can be used for transmitting video and audio to external displays, making it an all-in-one connection for devices.
4.External Storage Devices: External hard drives, SSDs, and USB drives often use USB Type-C to take advantage of faster data transfer speeds.
5.Portable Chargers: Power banks and portable chargers use USB Type-C to charge devices quickly, especially newer smartphones and laptops that support fast charging.

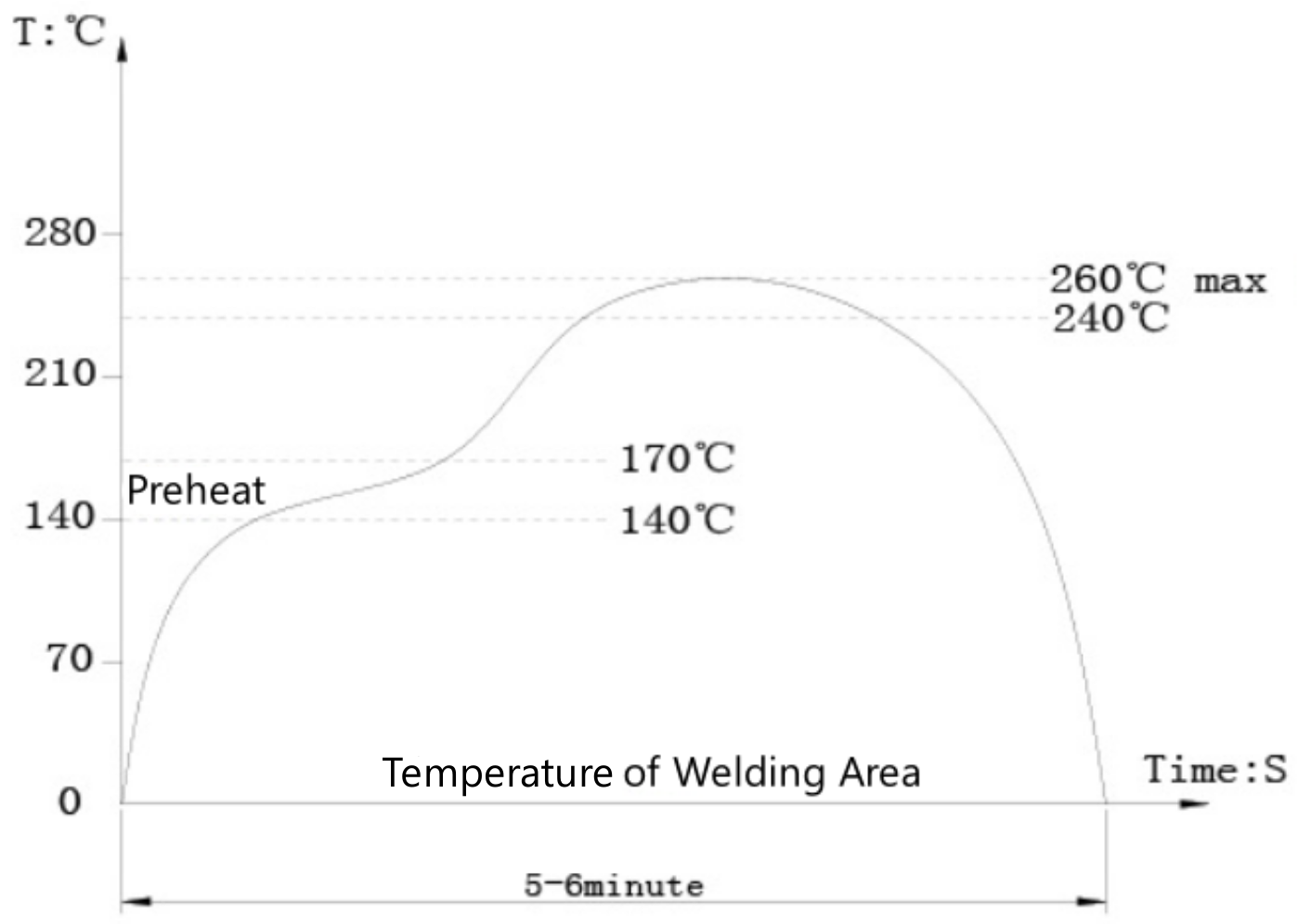

KKG LED Tactile switch, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: May I get tact switch free samples?
A: Sure, 10-20 pcs tact switch free samples are available for normal models. We need to confirm tact switch height, tact switch operation force and price before shipment.
Q2: When can I get the quotation ?
A: We will send you quotation within 24 hours.
Q3: When can I get the tact switch samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.
Q4: Can you accept small order, like 1000 pcs tact switch, 2000 pcs tact switch?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.
Q5: When can I get the tact switch samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.
