FEATURE

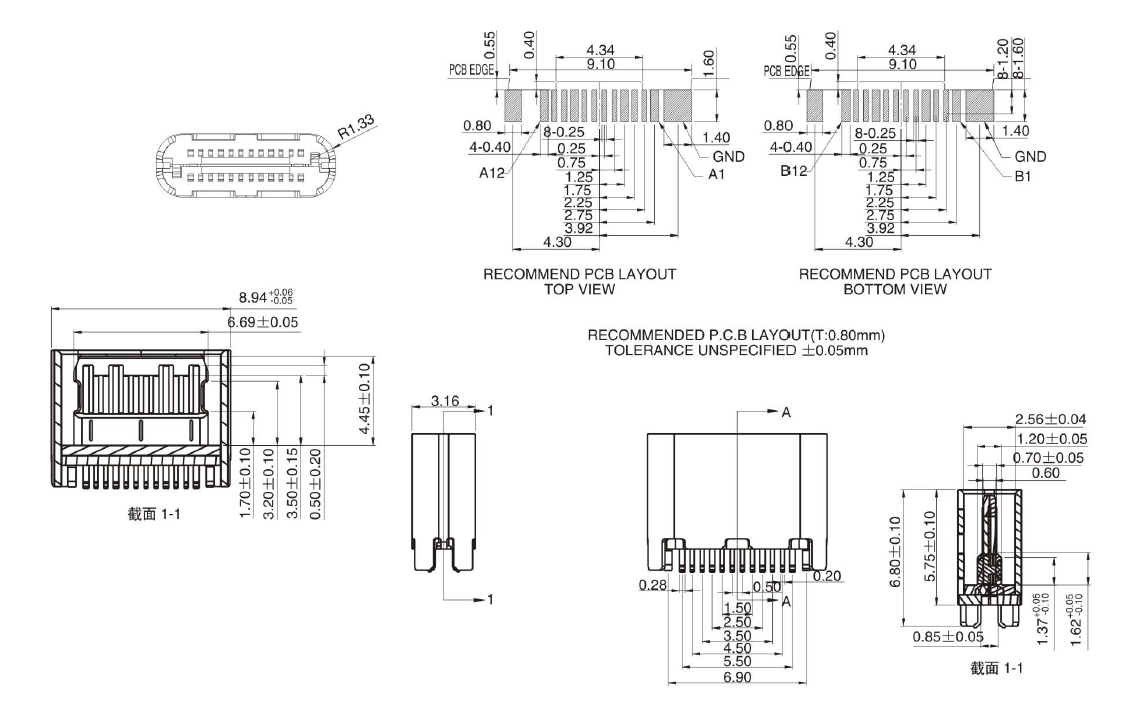

‧ 8.94mm*5.70mm
‧ 180 degrees DIP
‧ Reflow soldering
APPLICATIONS
‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD
| Characteristics | Specification |
| Current Rating | 5.0A MAX |
| Voltage Rating | 100VAC |
| Contact Resistance | 40 millionhm max |
| Dimension | 8.94mm*5.70mm |
| temperature range | -30℃~85℃ |
| Insulation Resistance | 100 megohms min |
