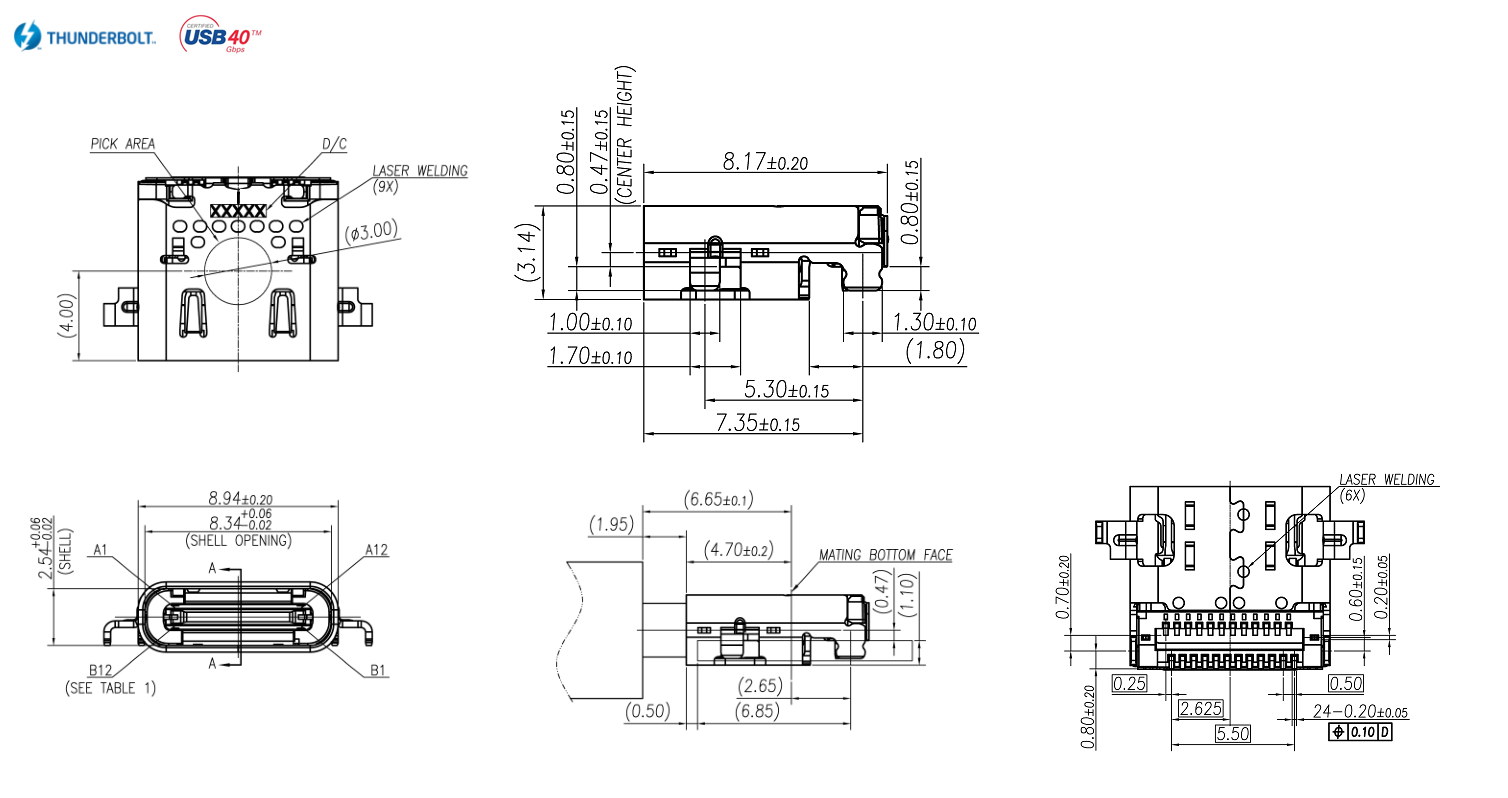

Features of USB4 Type-C Connector
‧Acquired USB4 Gen 3 with TID & Thunderbolt 4 certificates
‧Bandwidth: Thunderbolt 4 certified connector supports 40Gbps bidirectional bandwidth and allows up to five Thunderbolt devices connected powered by a single connector.
‧Obtained USB-IF TID certification, meet EIA& MIL-STD standards
‧Reflow process compatible
‧Compliance with CE & FCC & MSDS & RoHS requirements
‧Customizable specification
| Characteristics | Specification |
| Voltage | 30V AC(rms) |
| VBUS/VBUS pin current | 5.0A (A4,A9,B4 and B9) |
| Vconn /Vconn pin current | 1.25A(B5 of the plug connector) |
| GND /GND pin current | 1.25A(A1,A12,B1 and B12) |
| Contact current | 0.25A(all the other contacts individually) |
| Insulation resistance | -40℃~+80℃ |
