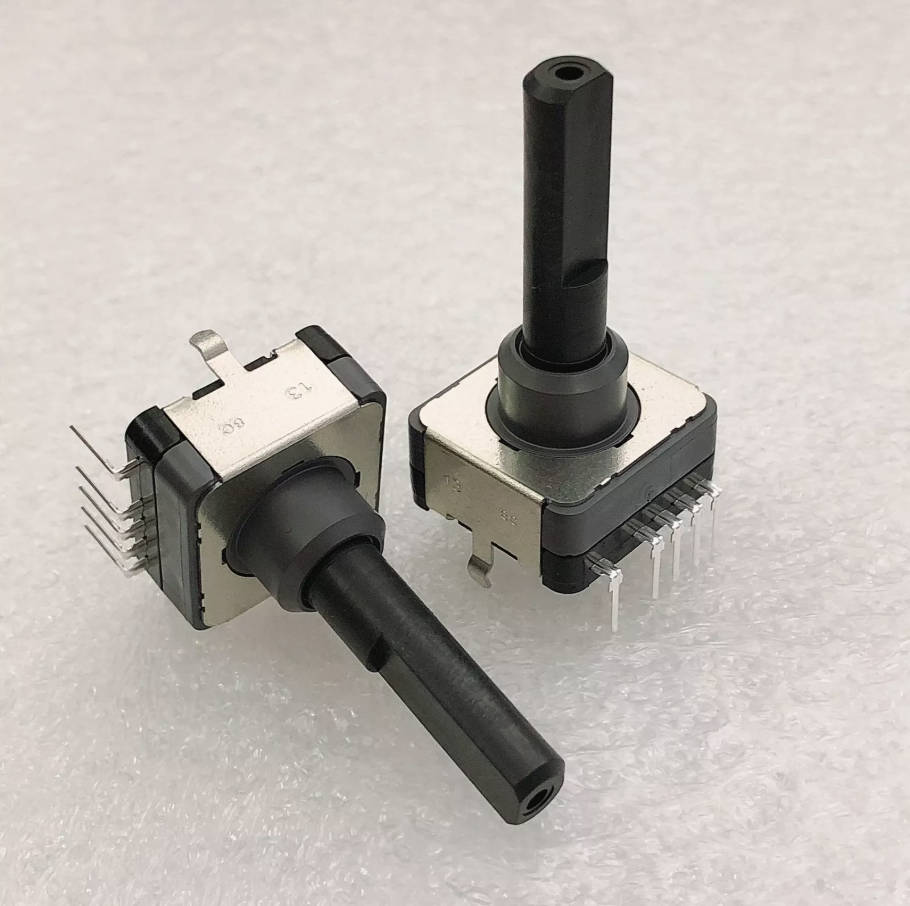

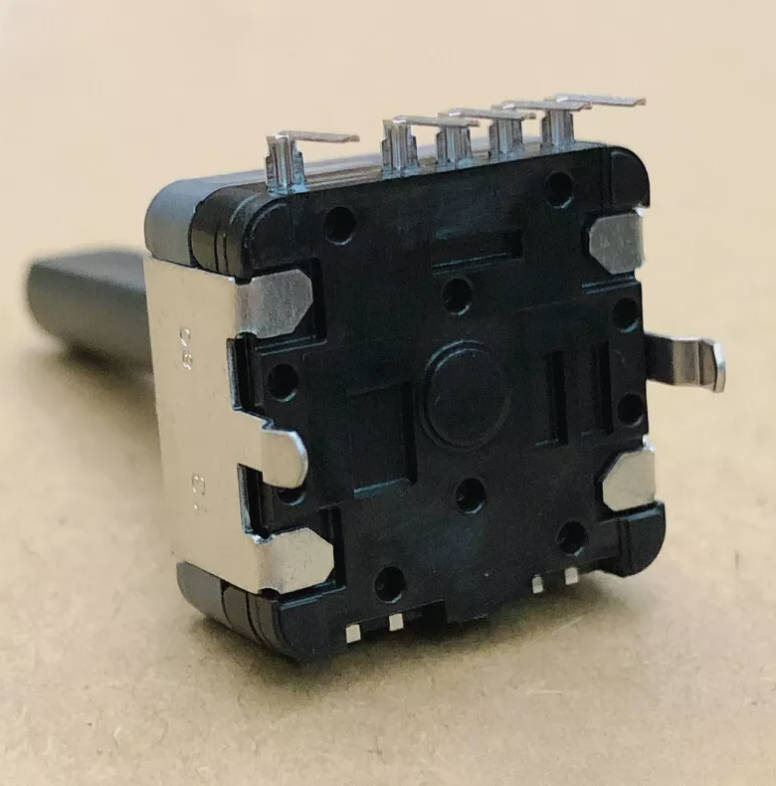

IPX7 Waterproof Encoder Switch

The IPX7 Waterproof Encoder Switch is a high-performance control component designed to provide accurate rotary and push-button input in demanding environments.Combining the functionality of a Rotary Encoder Switch with advanced waterproof and dustproof protection,this versatile device ensures reliable operation in automotive,industrial,outdoor,and household applications.

Engineered with an IPX7-equivalent sealing structure,the Waterproof Encoder Switch effectively protects internal components from water ingress,moisture,dust,and contaminants.Whether installed in industrial control panels,vehicle infotainment systems,smart appliances,or outdoor electronic equipment,it delivers precise signal output and long-term durability.

Featuring tactile feedback,low power consumption,and a mechanical life of up to 30,000 operating cycles,this Waterproof Rotary Encoder is an ideal solution for modern human-machine interfaces(HMI)where accuracy,reliability,and environmental protection are essential.

Key Features

IPX7 Waterproof Protection

The encoder is designed with a sealed construction that meets IPX7-equivalent waterproof standards.It can withstand exposure to moisture,splashes,and temporary water immersion,making it suitable for harsh operating environments.

Rotary and Push Function Integration

This Push Button encoder switch combines rotational input and push-button operation in a single compact component.Users can easily navigate menus,adjust settings,and confirm selections without requiring additional switches.

High Reliability Signal Output

Advanced sensing technology accurately converts rotational and pressing actions into electrical signals,ensuring smooth and responsive control performance.

Dustproof and Moisture-Resistant Design

The Sealed Encoder Switch structure prevents dust,dirt,and humidity from affecting internal contacts,improving long-term reliability and reducing maintenance requirements.

Long Mechanical Life

Designed for frequent operation,the encoder supports up to 30,000 cycles while maintaining consistent tactile feedback and electrical performance.

Compact and Versatile Installation

Its compact form factor allows easy integration into a wide range of electronic devices,control panels,and embedded systems.

Product Advantages

Superior Environmental Protection

Unlike conventional encoder switches,the IPX7 Waterproof Encoder Switch continues to operate reliably in wet,dusty,and challenging environments.This makes it ideal for equipment exposed to rain,humidity,cleaning procedures,or industrial contaminants.

Improved User Experience

The combination of rotary adjustment and push-button functionality provides an intuitive control interface.Clear tactile feedback enhances user confidence and operational accuracy.

Stable Electrical Performance

With low operating current requirements and reliable insulation properties,the Waterproof Control Switch delivers stable signal transmission even in demanding applications.

Reduced Maintenance Costs

The sealed housing protects internal components from environmental damage,extending service life and minimizing equipment downtime.

Flexible Application Compatibility

Whether used as a Rotary Control Encoder in industrial automation or as a Waterproof Rotary Encoder in consumer electronics,this product offers exceptional adaptability.

How the IPX7 Waterproof Encoder Switch Works

The Waterproof Encoder Switch operates by detecting rotational or pressing movements and converting them into electrical output signals.

When the shaft is rotated,internal optical or magnetic sensing elements generate pulse signals corresponding to the direction and amount of rotation.These signals are interpreted by the control system to adjust parameters,navigate menus,or control equipment functions.

When the shaft is pressed,the integrated push-button mechanism generates a separate switching signal,allowing users to confirm selections or activate specific functions.

The sealed housing protects the sensing mechanism and electrical contacts from water,dust,and environmental contaminants,ensuring accurate operation even under challenging conditions.

Typical Applications

Automotive Electronics

In vehicle infotainment systems,navigation units,and car audio equipment,the Waterproof Rotary Encoder allows drivers to adjust volume,select functions,and navigate menus with precision.

Industrial Control Panels

Factory automation systems and machine control interfaces use Industrial Encoder Switch solutions for mode selection,parameter adjustment,and operator interaction.

Home Appliances

Modern washing machines,ovens,coffee machines,and smart kitchen appliances utilize Encoder Switch technology to simplify user operation while maintaining durability in humid environments.

Marine and Outdoor Equipment

The IPX7 Waterproof Encoder Switch is ideal for marine electronics,outdoor control stations,agricultural equipment,and portable devices exposed to weather conditions.

Medical Equipment

Medical devices benefit from the switch’s reliable operation,tactile feedback,and sealed design,ensuring dependable performance in healthcare environments.

Smart Home and IoT Devices

Smart thermostats,security systems,and connected home products use Waterproof Control Switch components to provide intuitive user interfaces and long-term reliability.

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

2025-02-27

High effiency of production, shipped in 1 day after payment.

Q1:What is an IPX7 Waterproof Encoder Switch?

An IPX7 Waterproof Encoder Switch is a rotary control device that combines encoder functionality and push-button operation while providing protection against water ingress and environmental contaminants.

Q2:What does IPX7 mean?

IPX7 indicates that the device can withstand temporary immersion in water under specified conditions without suffering harmful effects,making it suitable for humid and outdoor environments.

Q3:What is the difference between a standard encoder and a waterproof encoder?

A standard encoder may not provide protection against moisture or dust,while a Waterproof Encoder Switch incorporates sealing technology to ensure reliable operation in challenging environments.

Q4:Can this encoder be used outdoors?

Yes.The sealed construction and IPX7-equivalent protection make it suitable for outdoor equipment,marine systems,agricultural machinery,and other exposed applications.

Q5:What industries commonly use Waterproof Encoder Switches?

These products are widely used in automotive electronics,industrial automation,marine equipment,smart home devices,medical systems,consumer electronics,and household appliances.

Q6:How long does the encoder last?

The encoder is designed for up to 30,000 operating cycles,providing dependable long-term performance in both commercial and industrial applications.
