2P 3*6 Tact Switch

2P 3*6 Tact Switch

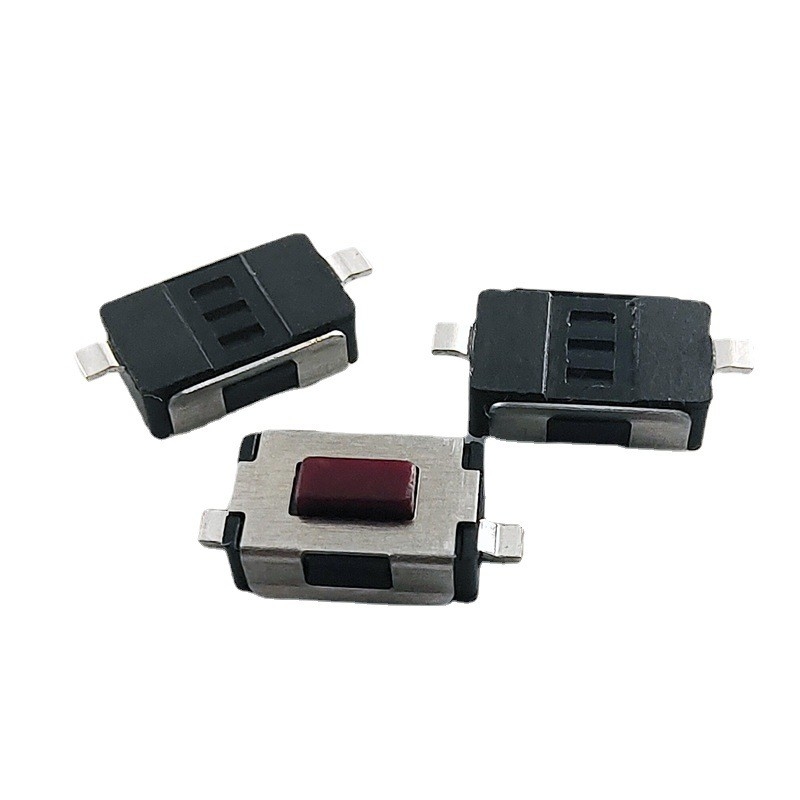

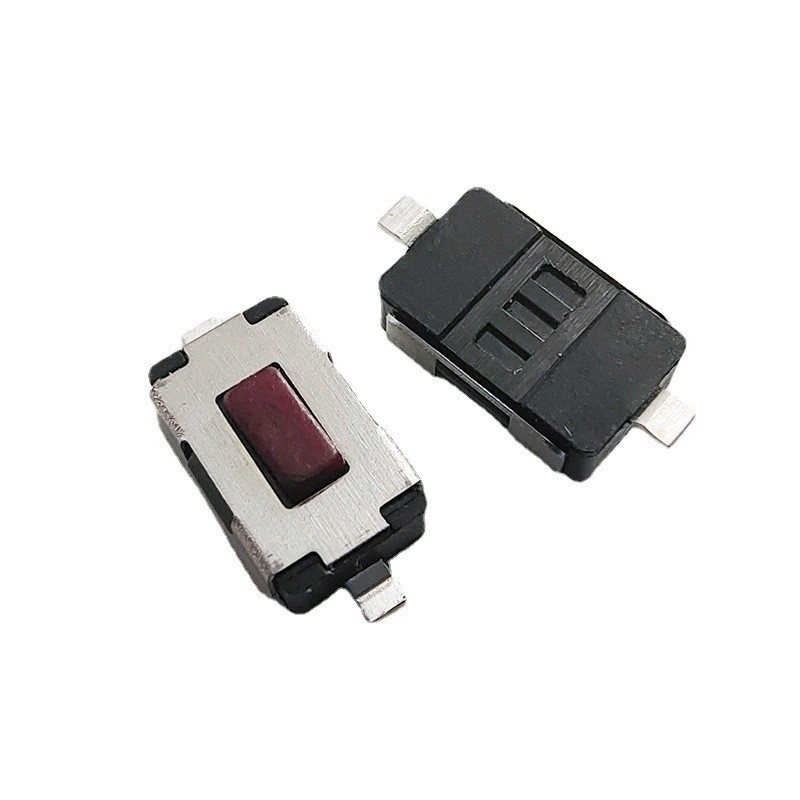

The 2P 3*6 Tact Switch is a compact Tactile Switch measuring 3mm x 6mm, featuring a dual-contact design with an operating force of 160gf and a travel distance of 0.25mm. It offers high reliability and a long lifespan (100,000 electrical cycles, 300,000 mechanical cycles). Suitable for consumer electronics, home appliances, and industrial equipment, it is made from eco-friendly materials and complies with RoHS standards. Available in SMD or DIP terminal types, it supports customization.

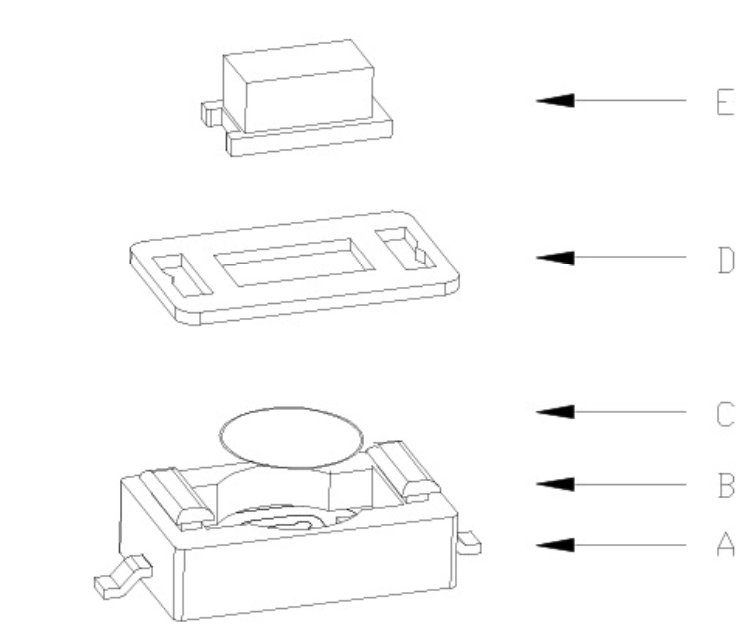

Cover Plate: Located at the top of the switch, the cover plate serves as protection and provides an interface for the user to press. For SMD Flat Cover Tactile Switches, the cover plate is usually designed to be relatively flat so that it can be easily mounted on the circuit board.

Pushbutton: This is the part of the switch where the user applies direct external force. When the pushbutton is pressed, it triggers the deformation of the shrapnel inside the switch, which turns the circuit on and off.

Shrapnel: The key component of a tactile switch, whose deformation determines the on/off state of the switch. When the button is pressed, the shrapnel is deformed by the pressure and contacts with the solder lug to energize the circuit; when the external force is withdrawn, the shrapnel is restored to its original state and the circuit is disconnected.

Base: A structural member that supports the other components inside the switch to ensure the stability and reliability of the switch.

Pin: The part of the switch that connects to the circuit board, used to realize the connection of circuits and the transmission of signals.

Features

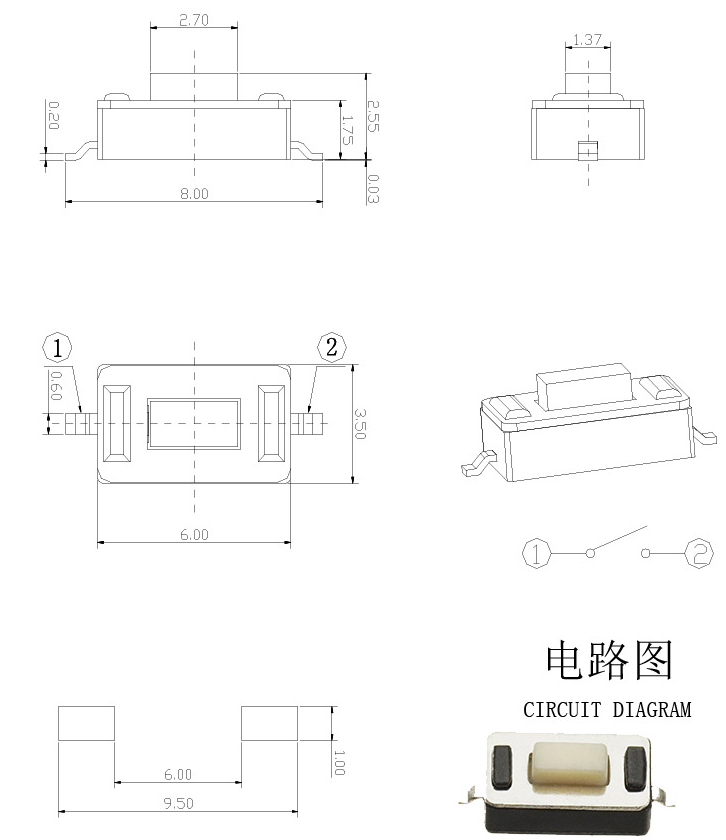

Compact Size: 3mm x 6mm, ideal for space-saving designs.

Dual Contact (2P): Ensures stable and reliable performance.

High Durability: 100,000 electrical cycles, 300,000 mechanical cycles.

Quality Tactile Feedback: 160gf operating force, 0.25mm travel distance.

Eco-Friendly: Complies with RoHS standards.

Versatile Mounting Options: Available in SMD (surface mount) and DIP (through-hole) types.

FAQ

1. What is the operating force of the 2P 3*6 Tact Switch?

The standard operating force is 160gf, but it can be customized based on customer requirements.

2. What is the lifespan of this switch?

The electrical lifespan is 100,000 cycles, and the mechanical lifespan is 300,000 cycles.

3. Is the switch RoHS compliant?

Yes, the 2P 3*6 Tact Switch is made from eco-friendly materials and complies with RoHS standards.

4. What are the mounting options available?

The switch is available in both SMD (surface mount) and DIP (through-hole) terminal types.

5. Can the switch be customized?

Yes, we offer customization options for operating force, travel distance, dimensions, and terminal types.
