4.5*4.5 Tact Switches with 3P

Are you a factory or a trading company?

Answer: We are a factory, we can guarantee our price is first hand, very cheap and competitive.

How is the quality control in your factory?

Answer: All products will be 100% checked before shipment.

How to contact us?

Tel: 86-13377785035

Wechat: kkg-vivian

Email: xyy@kkg.tw

WhatsApp: +8613377785035

Inquire Now

Product Details
Product Parameter

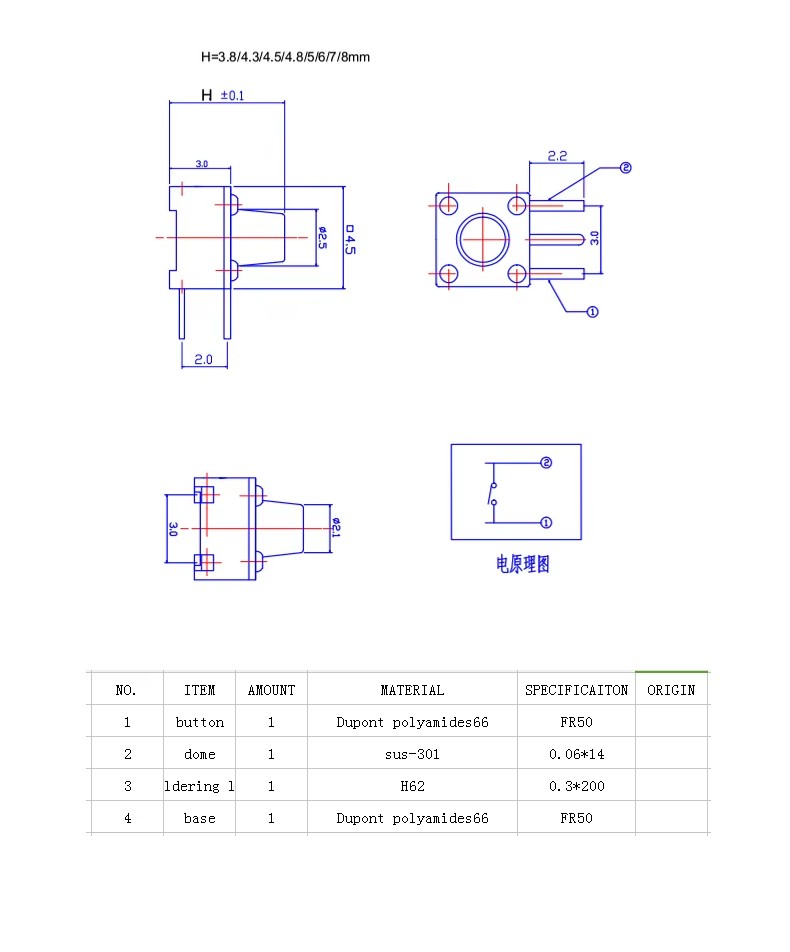

DIMENSIONS

Tact switches’ Material Preparation

Plastic base: usually made of LCP plastic material carefully, can be over reflow soldering, to ensure both thin and temperature resistance and not deformed.

Shrapnel: the key component of the light touch switch, often using high quality stainless steel shrapnel, such as Japan Saintyear shrapnel, to ensure the life of the switch and feel.

Cover: Used to encapsulate the internal components of the switch and protect them from external interference.

Other materials: such as dustproof film, pins, packaging materials and so on.

4.5*4.5 tact switches' Injection Molding

Injection molding button and plastic base: Plastic material is injected into the mold by injection molding machine to form the button and base of the switch.

Quality Inspection: Quality inspection of the injection molded parts to ensure that there are no defects and flaws.

Internal Assembly of tap switch

Reed Placement: Use the automatic machine to precisely place the reed into the plastic base.

Lamination: Apply dustproof film on the reed to protect the reed from dust and impurities.

Cover encapsulation: Put the cover on the base and cover it up using the handle to complete the internal assembly.

Pin Handling of 4.5*4.5 tactile switch

Pin fixing: Fix the four contact pins of the light touch switch.

Pin cutting: Cut the four pins into pin or chip type according to the need.

Light touch switches' Quality Inspection and Test

Motion sense test: Use a certain weight to press the switch to check the on and off condition of the switch.

Voltage resistance test: Apply a certain voltage on the switch to check its voltage resistance.

Appearance inspection: Check the appearance of the switch by means of CCD camera and other means to ensure that there are no scratches, dust particles and other undesirable phenomena.

Packing and shipment

Sealed package: Seal the tested flick switches to prevent them from being damaged during transportation and storage.

Shipment: Ship the packaged flick switches to customers according to the order requirements.
