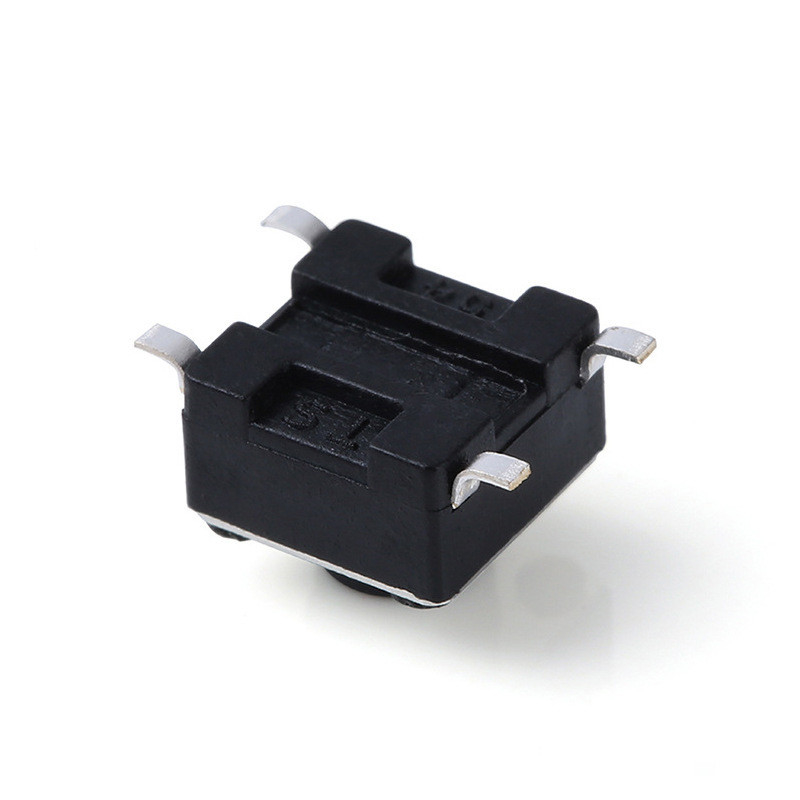

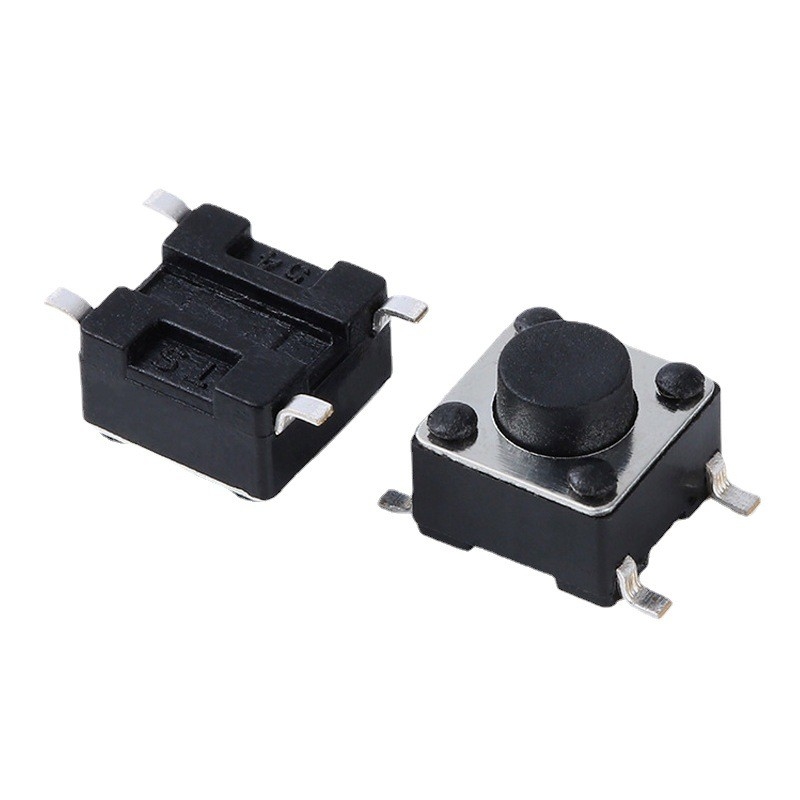

SMD Tact Switch

SMD Tact Switch is an electronic switch component designed to allow for the connection and disconnection of circuits through gentle tapping. This type of switch has been widely used in electronic devices due to its miniaturization and lightweight characteristics.

characteristic

Miniaturization and lightweighting: The SMD Tact Switch has a small size and light weight, making it very suitable for electronic devices with strict space requirements.

Easy to install: Due to the use of surface mount packaging, this switch can be easily installed through automated production equipment, improving production efficiency.

High reliability: Through precise design and manufacturing, SMD Tact Switch has high reliability and durability, and can withstand a certain number of button presses without failure.

High sensitivity: The sensitivity of the switch is high, and the circuit can be turned on and off with just a gentle tap.

application area

SMD Tact Switch is widely used in various electronic devices, including but not limited to:

Audio and video products: such as MP3 players, radios, speakers, etc.

Digital products: such as mobile phones, tablets, cameras, etc.

Remote control: TV remote control, air conditioning remote control, etc.

Communication products: such as walkie talkies, mobile base station equipment, etc.

Household appliances: such as microwave ovens, rice cookers, washing machines, etc.

Security products: such as access control systems, alarms, etc.

Toys: Toys with electronic functions, such as electronic keyboards, game consoles, etc.

Medical equipment: such as electronic blood pressure monitors, blood glucose meters, etc.

matters needing attention

When using SMD Tact Switch, the following points should be noted:

Welding conditions: When welding terminals, it is necessary to ensure that the welding conditions meet the product requirements to avoid loosening, deformation, or deterioration of electrical characteristics caused by improper welding of the switch.

Circuit board selection: It is recommended to use single-sided circuit boards for soldering. If using other types of circuit boards, it is necessary to confirm the soldering conditions in advance and conduct sufficient testing.

Operating load: When operating the switch, it is necessary to avoid applying excessive load to prevent damage to the switch. At the same time, it is also necessary to avoid pressing the operating part from the side to avoid causing the switch to fail.

Usage environment: For models other than sealed ones, attention should be paid to preventing foreign objects from entering the interior of the switch to avoid affecting its normal operation. In addition, it is necessary to avoid exposing the switch to corrosive gases or high temperature, humid environments.

Storage conditions: When storing SMD Tact Switch, it is necessary to store it in an environment that is at room temperature, humid, not exposed to direct sunlight, and does not produce corrosive gases, and use it as soon as possible.
