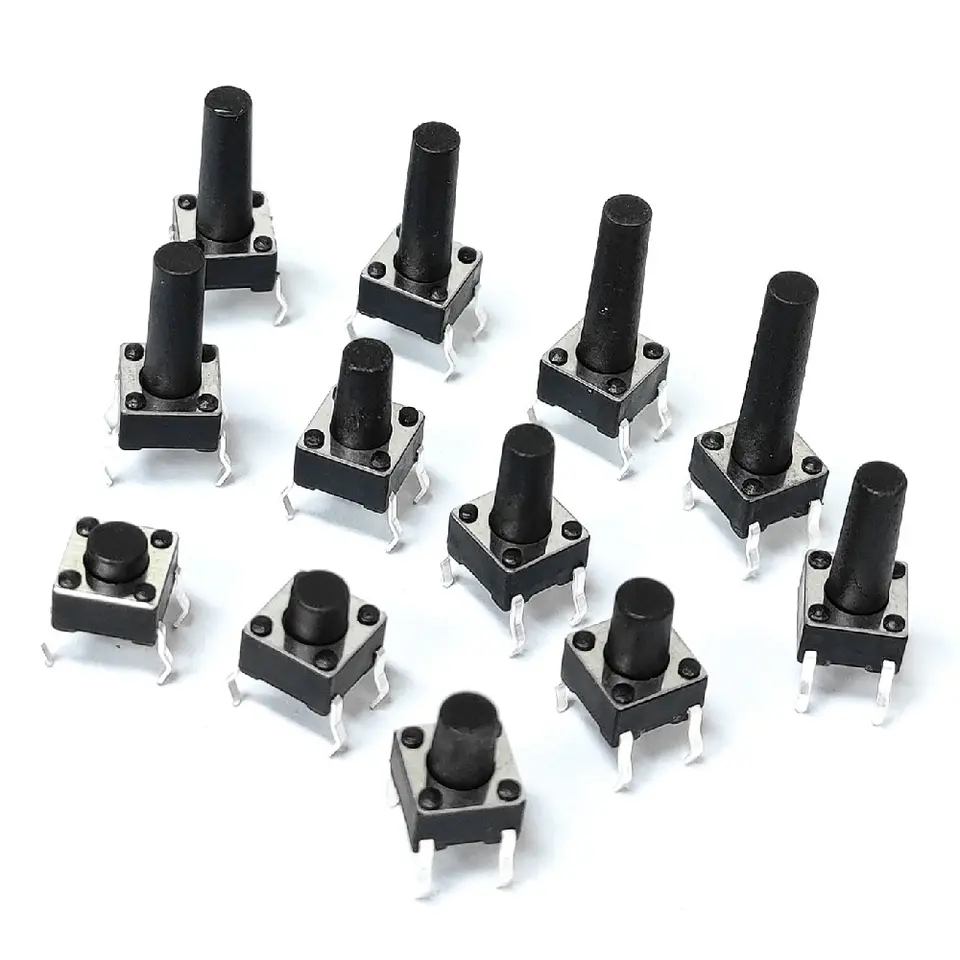

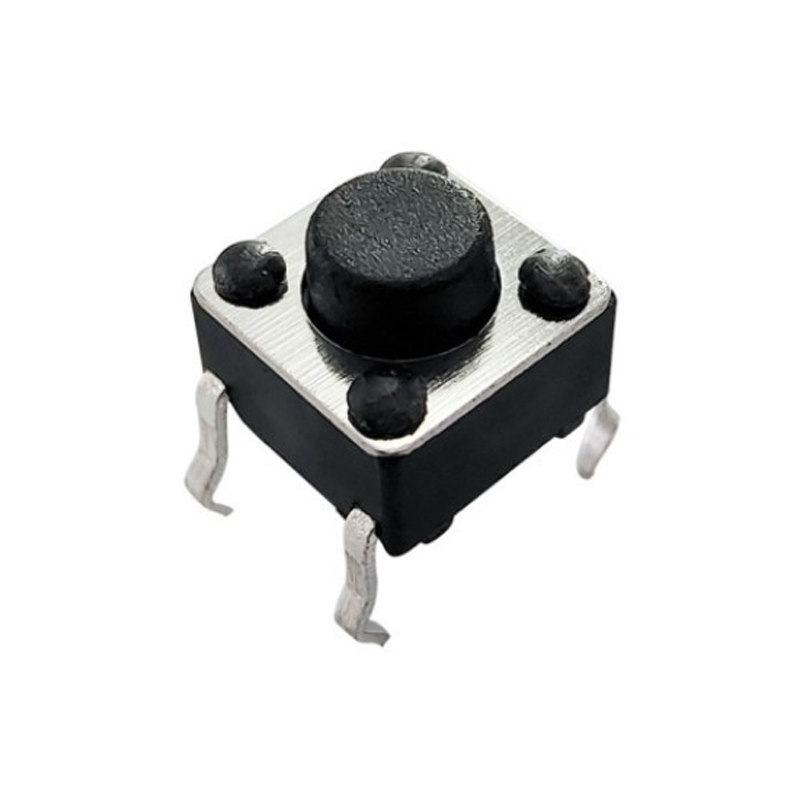

6x6 Dip Tact Switch

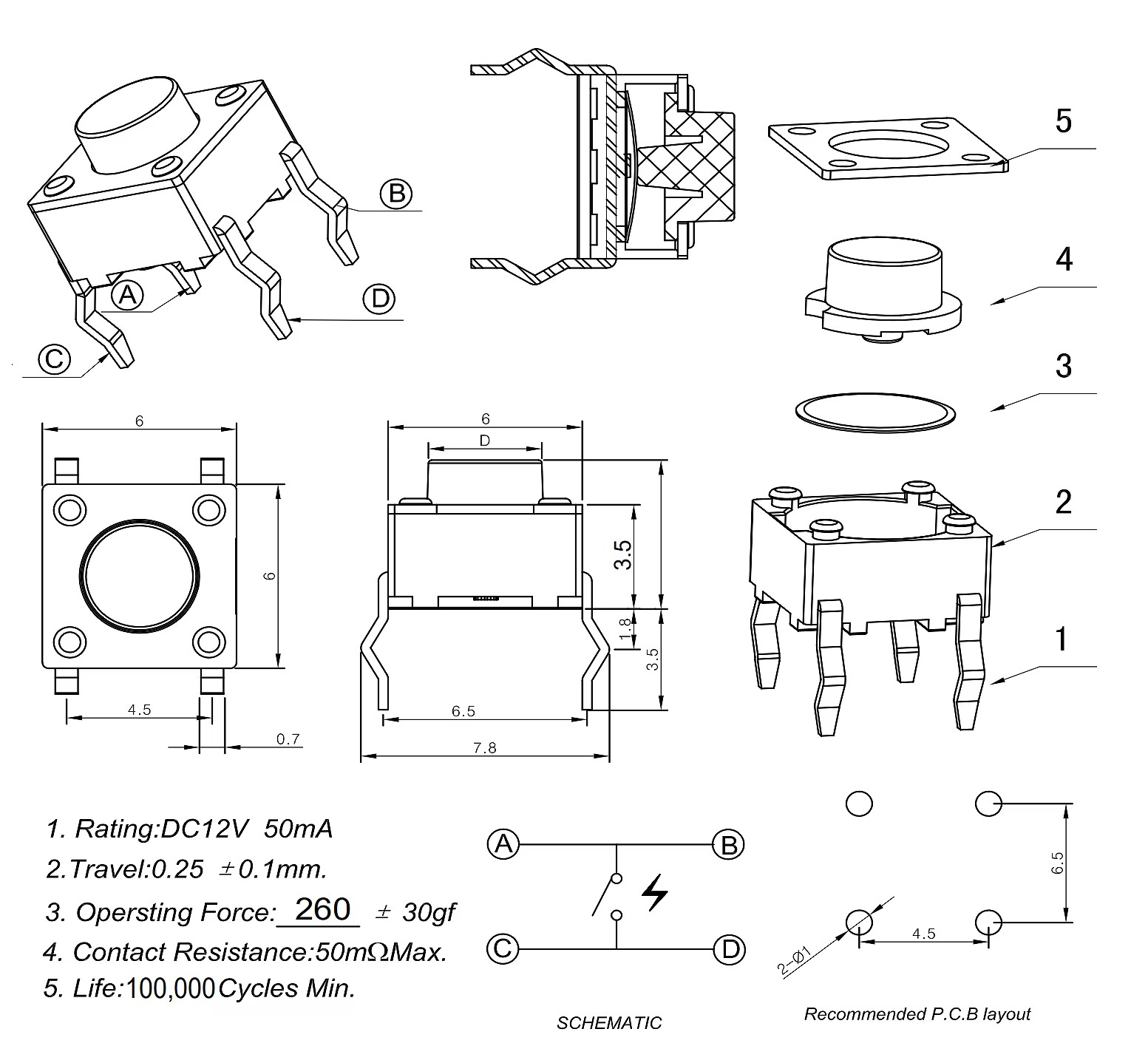

Technical Parameters (6×6 Tact Switch)

• Contact Configuration: ON–OFF

• Rated Voltage / Current: 12V DC, 50mA

• Operating Temperature: -30℃ to +85℃

• Contact Resistance: ≤100mΩ

• Insulation Resistance: ≥100MΩ (100V DC)

• Dielectric Strength: 100V AC / 1 minute

• Operating Force Options:

• 100gf ± 50gf

• 160gf ± 50gf

• 260gf ± 50gf

• Travel Distance: 0.20 ± 0.1mm

• Operating Life: ≥100,000 cycles

Key Features

• Standard 6×6 Tact Switch Size – Compatible with common PCB layouts

• Momentary Operation – Reliable momentary tact switch response

• Silver-Plated Contacts – Stable signal transmission and low resistance

• Copper Foot & Copper Cover – Improved durability and solderability

• Multiple Operating Forces – 100g to 260g options for different user needs

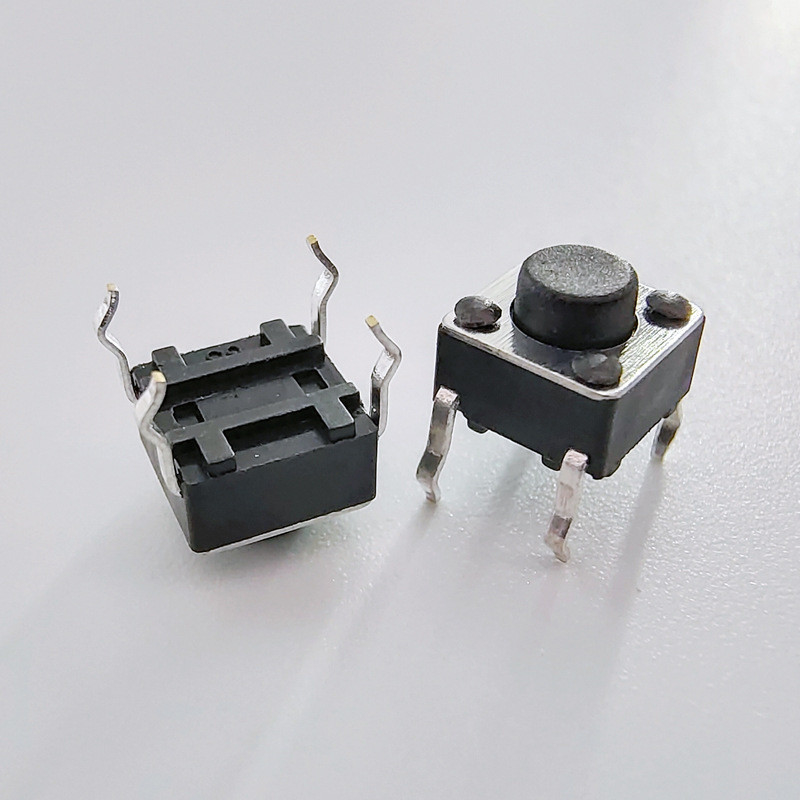

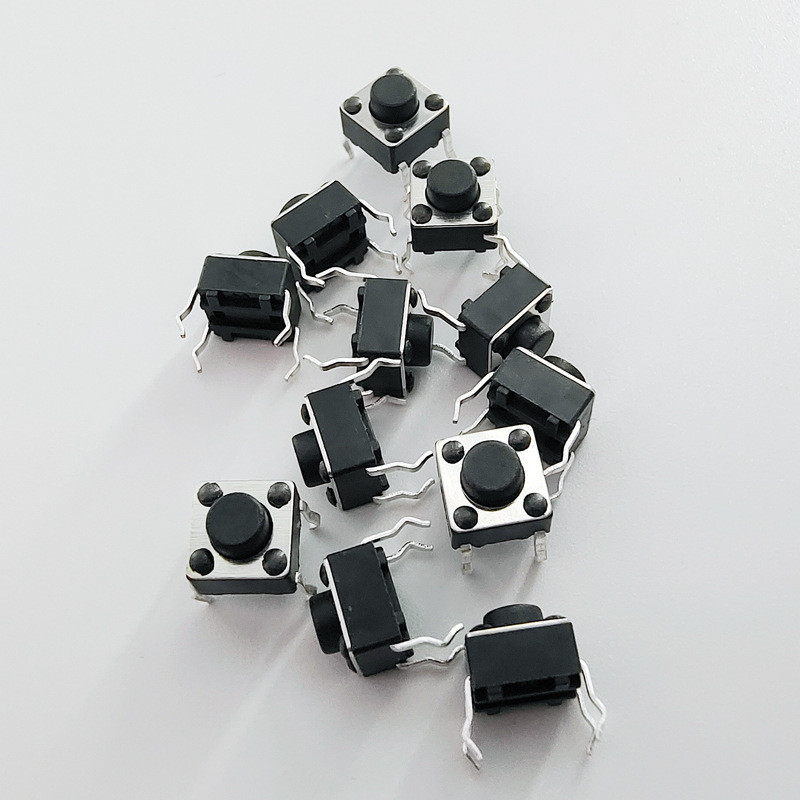

• Vertical & Right-Angle Designs – Flexible mounting options

• Compact & Lightweight – Ideal tact push button for space-limited designs

Product Advantages

• Clear Tactile Feedback – Ensures accurate operation and user confidence

• Long Service Life – Designed for over 100,000 press cycles

• High Environmental Resistance – Performs reliably under temperature variations

• Low Contact Resistance – Enhances circuit stability and performance

• Wide Compatibility – Suitable replacement for standard tact button switches

• Easy PCB Assembly – DIP structure simplifies soldering and maintenance

Application Scenarios

This DIP tact switch is widely used across various industries and electronic devices:

Consumer & Audio-Visual Electronics

• MP3 / MP4 players, DVD players, audio systems

• TVs, remote controls, cameras, voice recorders

Digital & Communication Devices

• Mobile phones, car phones, telephones

• PDAs, building communication equipment

Household Appliances

• Microwave ovens, rice cookers, electric fans

• Electronic body scales, kitchen scales

Industrial & Security Equipment

• Video intercoms, monitors, control panels

Medical Equipment

• Sphygmomanometers

• Clinical thermometers

• Hospital call systems

Fitness Equipment

• Treadmills, massage chairs

Other Applications

• Electronic toys

• Laser pens, money detector pens

Why Choose Our DIP Tact Switch?

The light touch switch design offers small size, light weight, long life, and low operating force. Combined with strong environmental resistance and stable electrical performance, this tact switch is an ideal solution for modern electronic products that require dependable and responsive control.

5.DIP Touch Switches' Specification

1. Package in tube/reel/cut tape/bulk, bubble wrap, box, carton;

2. Original manufacturer package, the out package will be in a well condition with suitable size to save the shipping cost;

3. Sample with same-day or the next-day delivery, bulk order within 3-7 days, but depens on the exact quantity;

4. Customer shipping account are available;

5. If the declared value for customs clearance are required, please tell us before shipping;

6. Registered packet, DHL, FedEx, UPS, ARAMEX, Air shipping, Sea shipping.
