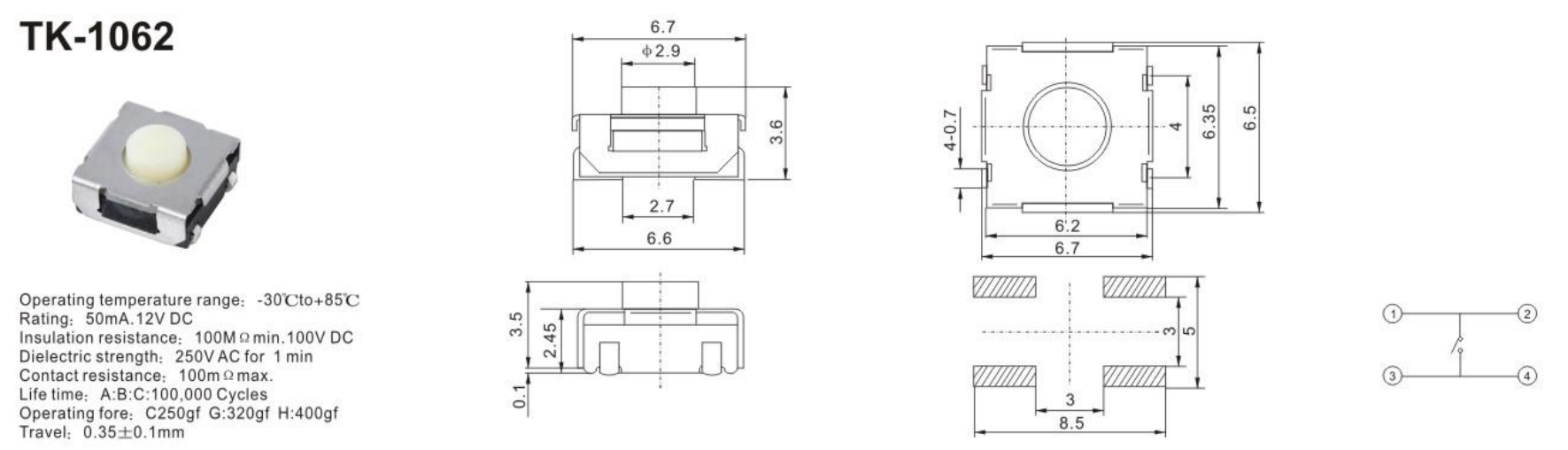

Momentary Tact Switche' Parameter

1. Rated : 50mA DC12V<50m>

      2.Contact Resistance:

      3.0peating Force: 400gf+50

      4.Travel:0.35+0.2mm

      5.Insulation Resistance:>100M

      6.Electric Strength: 250V 50HZ 1Min.

      7.0peating Life: 5000,000 Cycles

      8.Waterproof Level: IP67

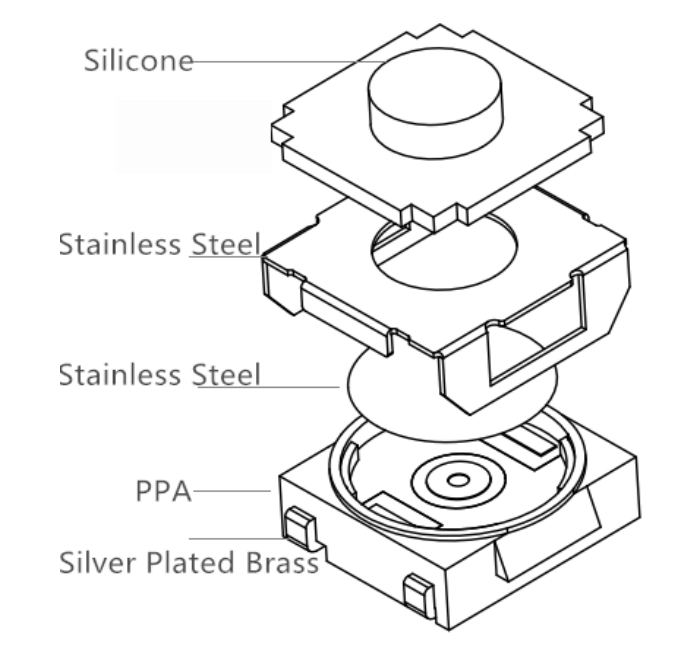

Alps Tact Switches' Product Structure

The main structure of a silicone flick switch consists of a cover plate, a pushbutton, a shrapnel, a base and pins. The button is where the external force is applied, the shrapnel is the key component, and the on/off of the switch is caused by the change of force on the shrapnel. The pins are the connection between the switch and the circuit, generally five pins, two by two, and one pin for grounding.

Silicone tact switches' Operating Principle

The working principle of silicone tact switch is to realize the switching of the circuit by touching the button. When the user touches the button lightly with a finger or other object, the button is pressed down, the conductive contacts close and current passes through, thus realizing the control of the circuit. Silicone buttons are soft to the touch and durable, making them comfortable to use

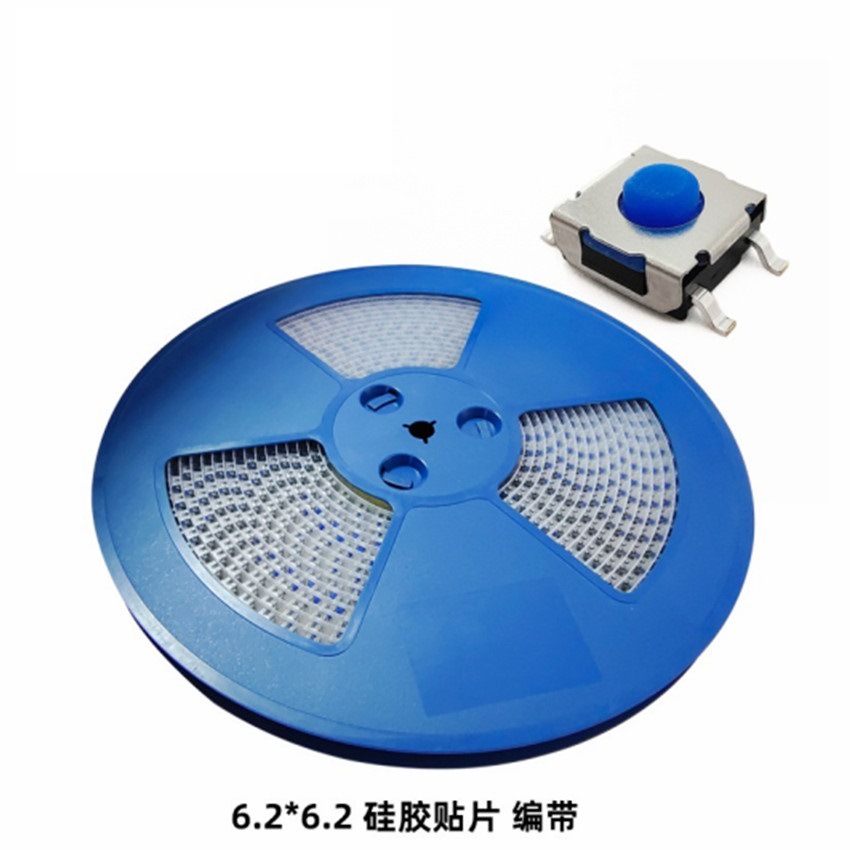

6.2*6.2 Tact Switches' Product Characteristics

The 6.2*6.2 Tact Switch is a kind of switch that can turn the circuit on or off by a light touch.The features of silicone light touch switch include:

1. High temperature and aging resistance: silicone material has good resistance to high temperature and aging.

2.Waterproof and dustproof: able to operate stably for a long time in harsh environments.

3.Lightweight and Compact: Lightweight and compact design, suitable for a variety of devices.

4.Customization: key colors can be customized to meet different design requirements.

4P Tact Switches's Product Applications

SMD tact switch is widely used in various electronic devices, such as:

1 Household appliances: such as TVs, washing machines, refrigerators, etc. Silicone touch switches are used to control the on/off switch, volume adjustment, temperature setting and other functions.

2 Communication equipment: such as cell phones, tablet PCs, etc. Silicone touch switches are used to control screen brightness, volume, on/off and other operations.

3 Medical equipment: such as blood pressure monitors, blood glucose meters, etc. Silicone touch switches are used to control the measurement, switch on and off, and other functions.

4 Automotive electronics: such as car navigation, car audio, etc. Silicone touch switch is used to control the volume, switch on/off and other operations.
